Description

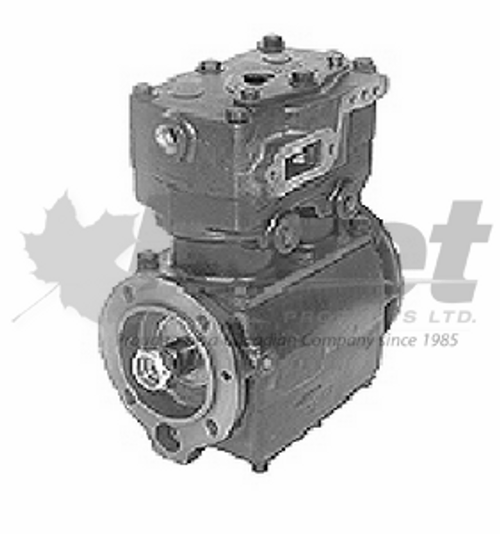

EL1300 MACK COMPRESSOR - REMAN
PART NUMBER(S):
Fleet Products: KN13111X (Remanufactured) | Replaces OE: Midland EL13111, KN13111, KN13111A, N7011F | Mack 25QD21DP53, 303GB391A, 303-GB-575P1, 303-GB575RP1, 303GB578A, 303GB578R, 303GB587 | Navistar 97196R91
DESCRIPTION:
Model: EL1300 Mack Compressor
Vehicles: Mack engine applications in heavy trucks, semi trucks, 18 wheelers, and commercial vehicles
• Head Rotation: Left
• Block Rotation: Left
• Mounting: Flange Mount, Gear Drive
• Discharge Type: Top/Threaded
• Oil Feed: Crankshaft End Oil Feed
• Oil Drain: Flange Oil Drain
• Cooling: Water Cooled
• Bore Diameter: 69.9 mm
• Overall Height: 12.19 in.
• Overall Length: 11.58 in.
• External Shaft Length: 0.16 in.
• Rated Displacement: 16.0 CFM @ 1250 RPM
• Orientation: 0° Mack In-Line, Extended Flange
• Thru-Drive Adaptability: Power Steering Adaptable
• OEM Part Number: N7011F (Exact Replacement)
• High Capacity Replacement: EL16111X
CROSS-REFERENCE(S):
KN13111, EL13111, KN13111A, KN13111N, BWAEL13111X, 745-EL13111, BEXEL13111X, 102039, 102966, 284720, 289300, 106301, EL16050, 745-EL13040X, R955EL13040X, NT7004B, EL13040, 3037697, 3002380, ZZEL13040X, ZZEL13040, 707193AT, 303GB4178, 303GB4181, 303GB4184, 303GB4186, 303GB569AP1, 303GB569P1, 303GB569P3, 303GB572P1, 303GB572P5, 303GB575RP1, 303GB578, 303GB578A, 303GB578AX, 303GB578R, 303GB580R, 303GB580RP1, 303GB587, 303GB588, 303GB588A, 303GB591A, 232787, 106301, 106340, 107511, 107511X, 282586, 282589, 282590, 282619, 282621, 282787, 283273, 283274, 108018, 283786, 283787, 284319, 284581, 284622, 284662, 284662N, 284663, 284865, 284866, 285204, 285205, 303GB391A, 283747, 283748, 285274, 285275, 285283, 285284, 285799, 285815, 285826, 285827, 286003, 286004, 286005, 286544, 286544N, 286544X, 286583, 286620, 286620X, 288982, 66988, 102658, 102696, 102697, 102697N, 102697X, 102698N, 065202, KN13110, KN13111, KN13111A, KN13111N, KN13111X, KNT13111, KNT13111A, KNX13110, EL13111, EL13111X, ZZEL13111, EMDEL13111X, N7011, N7011B, N7011C, N7011D, N7011E, N7011F, N7011H, NT7011B, NT7011C, 282586X, 282621X
A cross-reference listing means this part is a suitable replacement for the part numbers listed.
IMPORTANT INSTALLATION NOTES:
✔ Ensure proper alignment of the compressor and drive components during installation
✔ Verify compatibility with Mack engine systems and ensure the air inlet and outlet orientations match
✔ Follow installation guidelines for the power steering drive adaptability
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
