Description
KB791067X - HT/S ADVANTAGE FAN CLUTCH (CATERPILLAR 3176, C12)
PART NUMBER(S):
Fleet Products: KB791067X (Remanufactured) | OE: 791067, 05-11369-038, 05-11369-040
DESCRIPTION:
Model: HT/S Advantage On/Off Pneumatic Fan Clutch
Vehicles: Kenworth, Peterbilt, Volvo, Oshkosh (Caterpillar 3176, C12 Engines)

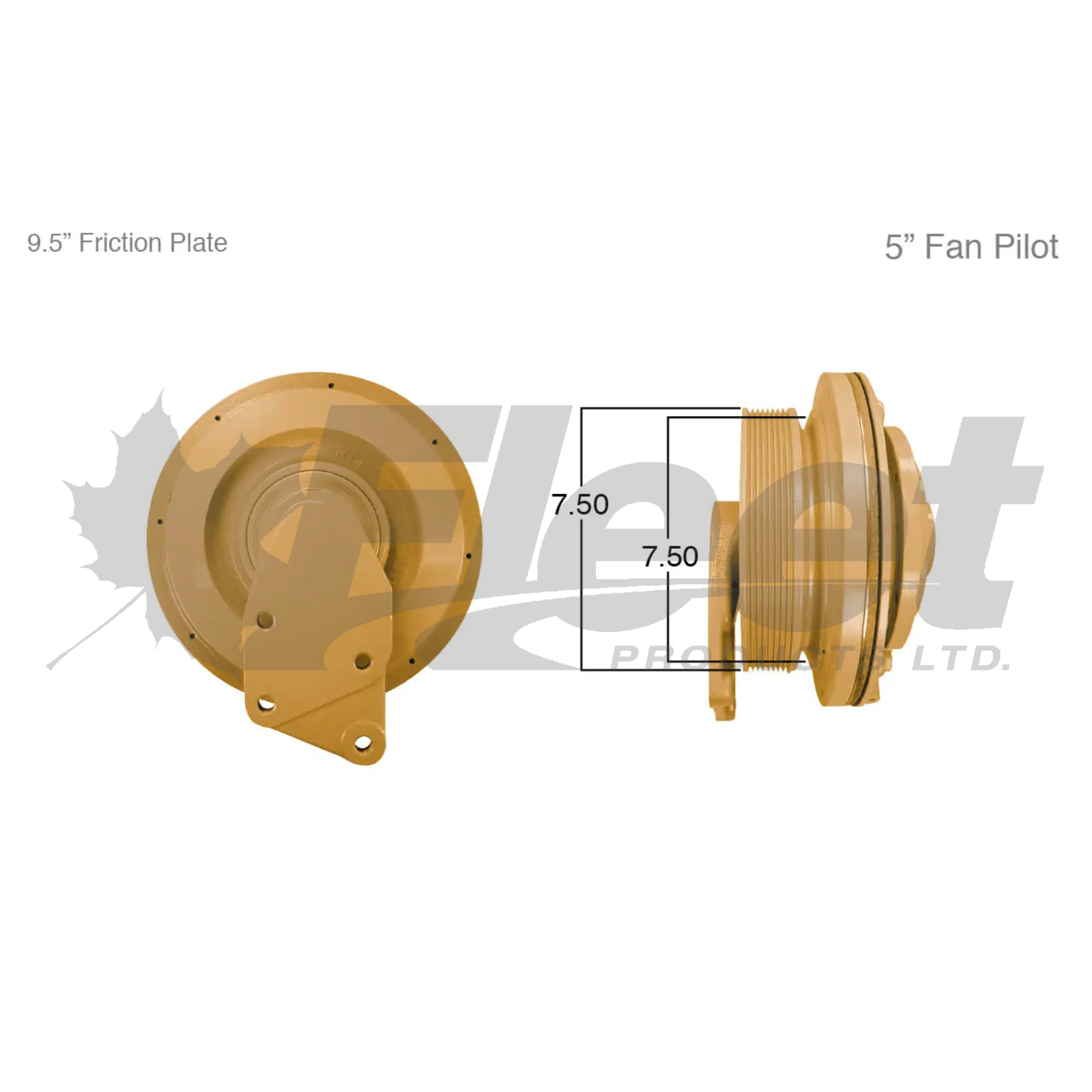

• Fan Pilot Diameter: 5"
• Fan Blade Bolt Circle: 6"
• Pulley Diameter: 7.5", 7.5"
• Belt Type: 1V, 8PK
• Belt Count: 2
• Belt Groove Count: 1, 8
• Belt Groove Type: V, PK
• Clutch Type: On/Off Pneumatic
• Friction Plate: 9.5"
Applications:
Is this fan clutch compatible with your Caterpillar-powered Kenworth, Peterbilt, Volvo, or Oshkosh from 1991–2000✔ Yes—engineered for models running 3176 and C12 engines, this HT/S Advantage delivers reliable cooling with OEM-grade fitment and performance in on-highway, vocational, and off-highway applications.
CROSS-REFERENCE(S):
05-11369-038, 05-11369-040, 20078A, 2089380, 3009528, 91067, 981051, 981119, 991065, 991126, 0511369038, 0511369040, 1000-791067, 1000791067, 3443-91067, ABP N20 91067, ABPN2091067, FC791067, FLT91067, HT791067, K5 91067, K591067, KM N20 91067, KMN2091067, KMI91067, KM91067, RC 791067, RC791067, ZBH791067, HOR791067, HOR981119, 790014, KB791067, RF791067X, RX791067RMANRF, RX791067RMANA cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Torque lock nut to 150 ft-lb (203 Nm).
✔ Torque button head cap screws to 35–40 in-lb (4–4.5 Nm).
✔ Torque air chamber cap screws to 180 in-lb (20.3 Nm).
✔ Air system engagement check: 90–120 psi.
✔ Clean and lubricate splines with anti-seize before assembly.
✔ Align lockup holes before torquing.
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
