Description

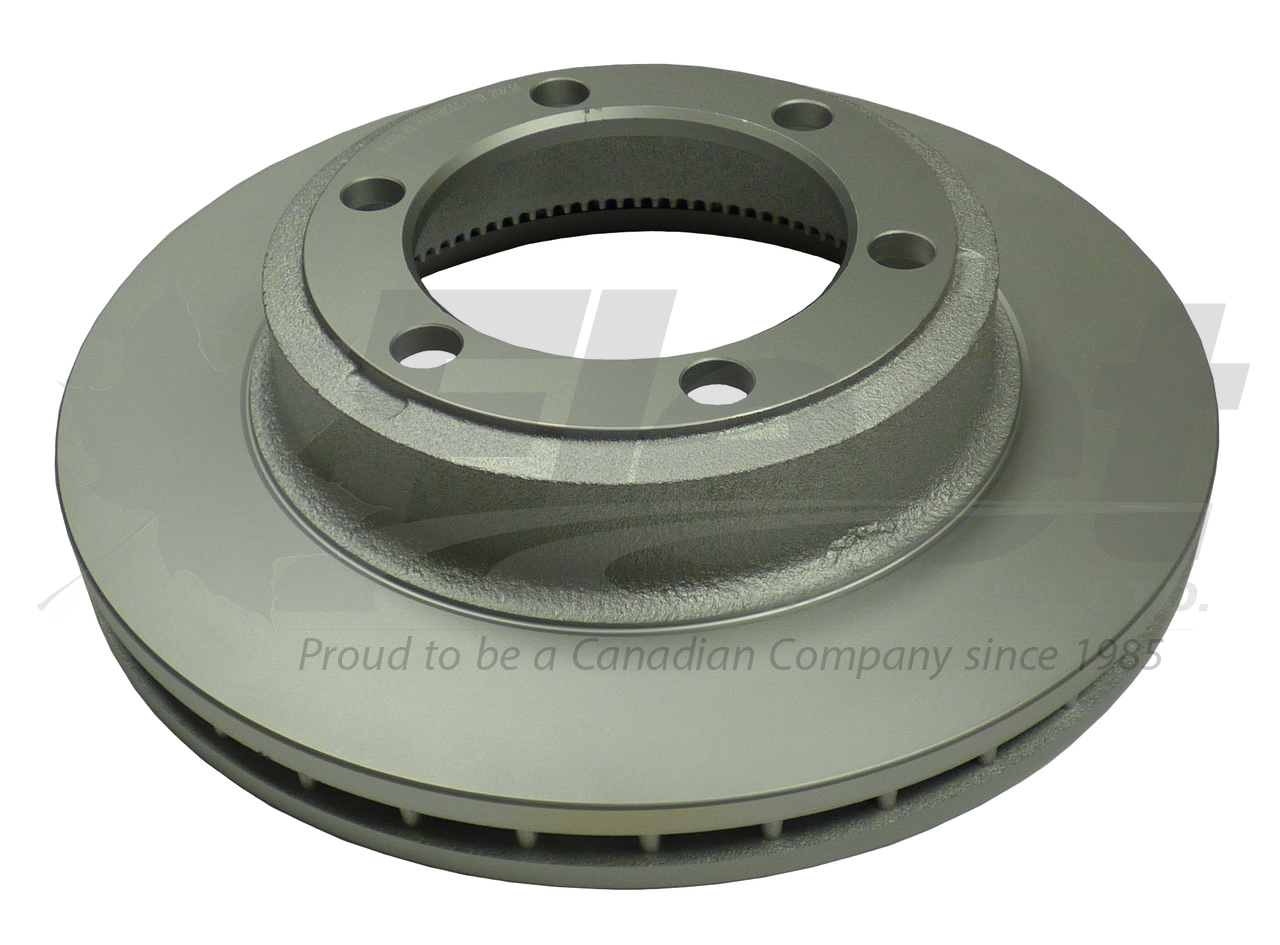

FPK123572 – HYDRAULIC ROTOR (15.00" OD)
PART NUMBER(S):
Fleet Products: FPK123572 (New) | OE: Bendix 141475, E12588020, Euclid E6115, E14572, IHC 1646770C1, 1646770C2, 2505097C1, Gunite D6194AM, Webb 54770
DESCRIPTION:
Model: Hydraulic Disc Rotor (Hat Shape)
Vehicles: International Harvester 1400, 1600, 3000, 4000 Series (1990s)
• Disc Outside Diameter: 15.000″
• Overall Depth: 3.500″
• Bolt Circle Diameter: 6.750″
• Hole Diameter: 0.780″
• Number of Holes: 6
• Pilot Diameter: 5.400″
• Brake System: Hydraulic Disc
• Disc Shape: Hat
• ABS Exciter Teeth: Cast into rotor
Applications: Is this rotor compatible with your International medium-duty truck✔ Yes—built for 1990s IHC 1400, 1600, 3000, and 4000 Series, this 15″ hydraulic rotor offers OE-grade casting, ABS-ready teeth, and 6-hole fitment engineered for long-lasting performance.
CROSS-REFERENCE(S):
123572, 141475, 1646770C1, 1646770C2, 23-1235722-XXX, 23123572002, 23123572004, 23123572009, 2505097C1, 72261A, D6194AM, E12588020, RC414572, Automann 153.123572, Dayton 123572, Gunite D6194A, Gunite D6194AM, Webb 54770, Webb 54770P-65, Bendix E14572, Euclid E-6115, Euclid E-14572, Euclid E6115, Raybestos 8523, Wagner BD125362, Dayton 154770, Meritor 23123572002, Meritor 23-123572-002, Meritor 23123572004, Meritor 23-123572-004, Meritor 23123572009, Meritor 23-123572-009, Aimco 5606, Leland DR1002, Dana W19WA102, Durabrake 72261A
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Always confirm fitment and torque per Bendix/vehicle manufacturer specifications.
✔ Typical hub nut torque: 450–500 Nm.
✔ Maximum lateral runout: 0.05 mm.
✔ Do not machine or reuse rotor below discard thickness (37 mm).
✔ ABS exciter teeth are integrated for proper ABS signal.
