Product Description

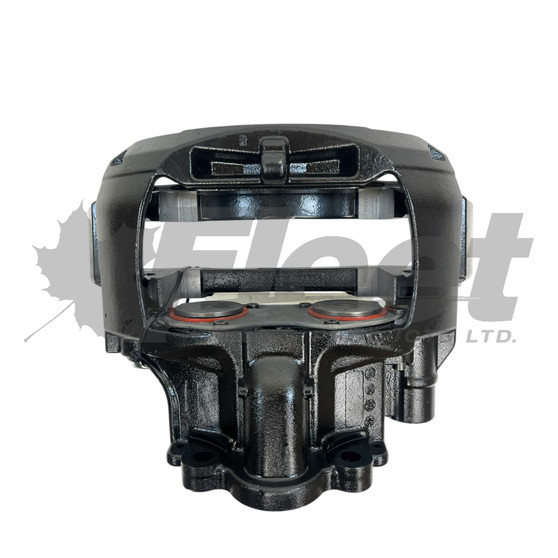

AIR DISC CALIPER – 0° ADB22 WITH CARRIER (RH)
PART NUMBER(S):
Fleet Products: FPK113887WCX (Reman), FPK802984WC-G (New) | OE: K802984, K113887, K149714, K165794, S-29152-15 | Automann: 158.802984
DESCRIPTION:
Model: Bendix ADB22
Engines: N/A
Vehicles: Hendrickson trailer axles with ADB22 calipers (0° RH)
• Brake Side: Right-Hand (RH)
• Caliper Type: ADB22 with integrated 0° carrier
• Mounting Style: Bolt-on, 0° axial-mount (Type A)
• Bolt Pattern: 10x M16-2 bolts on 249.5 mm circle
•Brake Pad Compatibility: PE1369HK (Bendix ADB22 pad profile)
• Compatible Rotor: 430 mm OD, 45 mm new / 41.4 mm minimum
• Recommended Pin Kit: FPK10194
• Compatible Spring Brakes: FPK132352
• Carrier Included: 0° RH (FPK043288)
• Performance/Technology: Bendix floating air disc caliper optimized for trailer applications
• System Integrity: OEM replacement new, no core required
Applications:
For use on Hendrickson trailer axles with 0° axial-mount disc brake configuration (RH side). Commonly found on Utility, Great Dane, Wabash, and Vanguard trailers with ADB22 brakes. Not compatible with steer, drive, or 12°/15° offset carriers.
CROSS-REFERENCE(S):
K802984, 802984, K113887, K113887X, K149714, K149714SC, K165794, K165794X, S-29152-15, S2915215, S336473, M802984, M802984X, 71113N1C26N, 71113N1XXXN, BADC03R, GBADC3887, 22XK802984A, 1660402, 1660529, BR440040, RDB802984CRX, RDB802984CX, RDB802984CXCV, RDB802984CXHD, RDB802984CXXT, RDB012341CRX, RDB012341CX, RDB012341CXCV, RDB012341CXHD, RDB012341CXXT, ATCAD2003, 802984PTP, 322-802984PTP, 802984R
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✓ Use only on Hendrickson trailer axles with 0° ADB22 RH configuration
✓ Replace both LH and RH calipers together for best results
✓ Clean and prep the caliper mounting surface; ensure it is flat and free of corrosion.
✓ Mount the caliper and torque fasteners to OEM specifications.
✓ Turn the adjuster CLOCKWISE until the brake pads just contact the rotor (avoid over-tightening).
✓ Then turn COUNTER-CLOCKWISE 2 audible clicks to set clearance
✓ Confirm system air pressure is between 100–120 psi.
✓ Block and secure wheels to prevent any movement.
✓ Depress the emergency brake release button on the dash to release spring brakes.
✓ Only after the wheels are secure and spring brakes are released should you proceed with caliper adjustment.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
