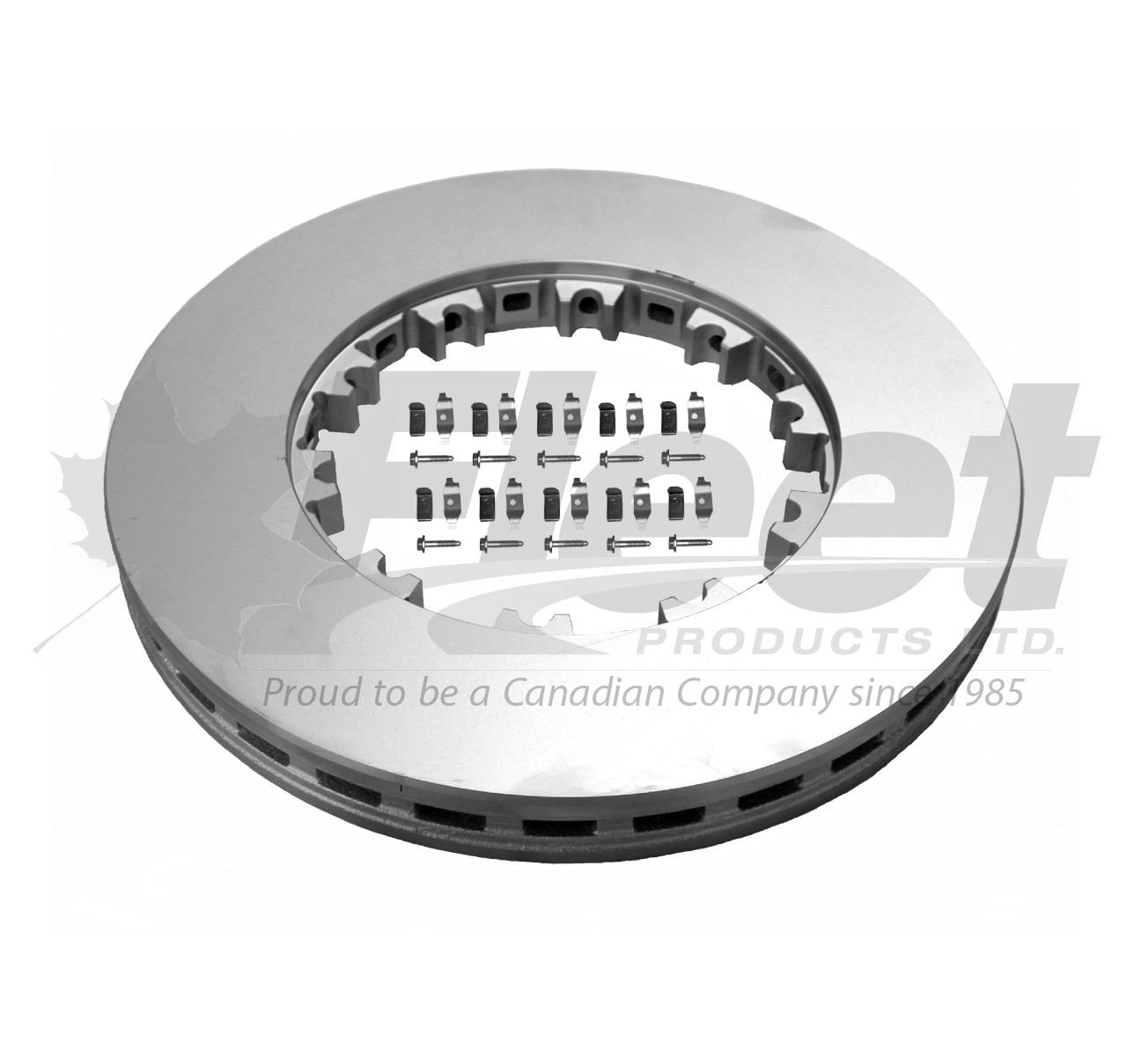

FP802569 AIR DISC BRAKE ROTOR – SPLINED (F-STYLE) FOR BENDIX ADB22
PART NUMBER(S):
Fleet Products: FP802569
OE: Bendix 802569, 802083, K012741, 10023879 DAYTON 125701 125804 / Meritor (M44D76692) / ConMet (10023879, 10025445, 21538404, 2642543C91) / Durabrake (76692) / Hendrickson (S-29152) / WABCO (802083, 745-802569, K012741)
DESCRIPTION:
Model: Bendix ADB22, ADB22X, ADB22X-LT, ADB22X-V
Vehicles: PACCAR Front, Trailer, Freightliner Cascadia (2008–2017), Coronado (2005–2018), Century Class (2005–2011), Columbia (2005–2018)
Kenworth T660, T680, T880
Volvo VNL Series, Peterbilt 379
Blue Bird Vision School Bus (2012–2017)

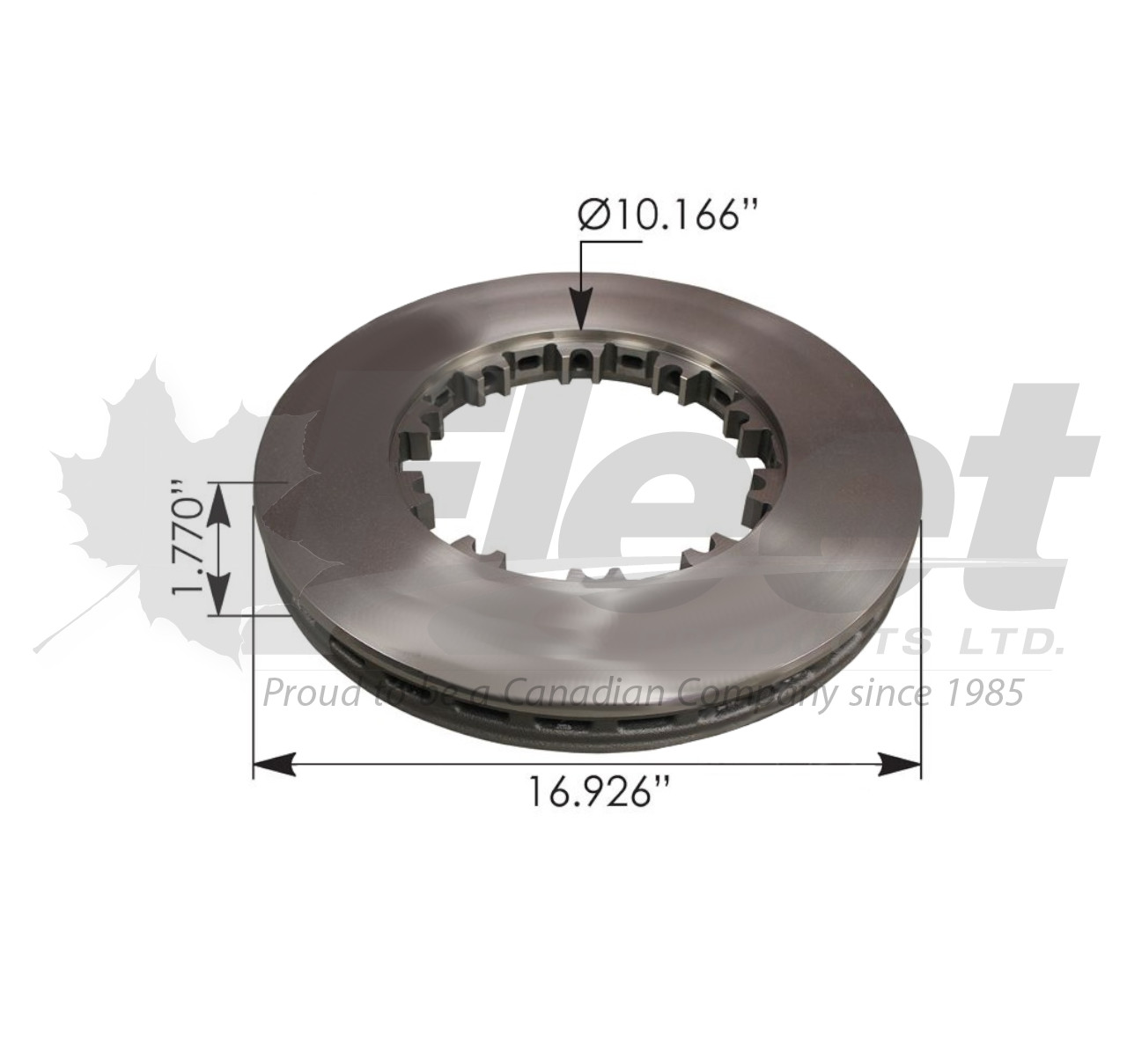

• Outside Diameter: 429.90 mm (16.926")
• Rotor Thickness: 45 mm (New), 37 mm (Min)
• Rotor Depth: 44.96 mm
• Pilot Diameter: 258 mm (10.166")
• Mounting: Splined Hub (F-Style), No Bolt Circle or Holes
• Weight: 24.13 KG (53.2 LBS)
• ABS: No integrated tone ring (external sensor required)
• Material: G3000 grey iron (ASTM G3500b)
• Coating: Zinc-aluminum corrosion-resistant finish
• Design: Flat splined face, no offset
• Wheel Size: 22.5"
• Caliper Compatibility:
FPK012341WC-G, FPK012342WC-G, FPK081142WC-G, FPK081143WC-G, FPK081256WC-G, FPK081257WC-G, FPK109957WCX, FPK109958WCX, FPK109961WCX, FPK109962WCX, FPK802984WC-G, FPK802985WC-G, FPK113887WCX, FPK113888WCX
• Pads Part Number: PE1369HK
Applications:
Used on heavy-duty tractors and trailers equipped with Bendix ADB22 calipers. Engineered for high-load commercial vehicles with splined axle interfaces. Suitable for OE replacement on drive, steer, and trailer positions.
CROSS-REFERENCE(S):
802569, 802083, K012741, 10023879, 10025445, 2642543C91, 21538404, M44D76692, 85129575, 745-802569, M44DH802569, K034497, 10023879C0N, 10025445C0N, 76694, 76692, 56094PK, 55060P, OTR86793, S2915217, 2605114C1, 802569BXW, K038-574, BW802569, 264543C91, 5114C1, 76AR692G, MVP23-BK10107, BR950000-04, R009, 153.1802569, 321801319ES, BAN802569, BX802569, G0796692000, 125804, ADR1020, ADR180456, BND802569, PL76694, S-29152-17, S29152-17, SSR922, S29152, S-26376, S26376, 21198686, Automann 153.1802569, Centric 12086017, Freightliner 76AR692G
A cross-reference listing means this part is functionally compatible with the listed numbers based on catalog data or industry fitment equivalence.
IMPORTANT INSTALLATION NOTES:
✔ Ensure system air pressure is 100–120 psi, wheels are blocked, and spring brakes are released before service.
✔ Confirm rotor style is splined (F-style) and matches hub interface.
✔ Torque rotor per Bendix specifications: 450–500 Nm typical hub-nut torque.
✔ ABS tone ring not integrated—verify alignment if external ring is used.
✔ Maximum lateral runout: 0.05 mm.
✔ Never machine or reuse rotor below 37 mm discard thickness.
✔ Rotor comes with mounting hardware.
