Description

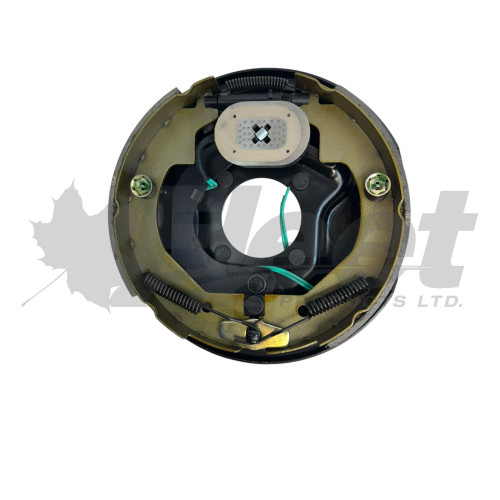

FP12-1014 – 10" X 2-1/4" 3500 LBS RIGHT HAND ELECTRIC BRAKE ASSEMBLY
PART NUMBER(S):
Fleet Products: FP12-1014 (New) | OE: K23-027-00, 23-27, K23-27
DESCRIPTION:
Model: 10" x 2-1/4" Right Hand Electric Brake
Vehicles: 3,500 lb trailer axles (RVs, boat trailers, cargo haulers, livestock trailers)
• Brake Size: 10" diameter x 2-1/4" width
• Load Capacity: 3,500 lbs per axle
• Mounting Flange: 4-bolt standard pattern (2-7/8" center spacing)
• Brake Type: Manual-adjust electric brake – Right Hand / Passenger Side

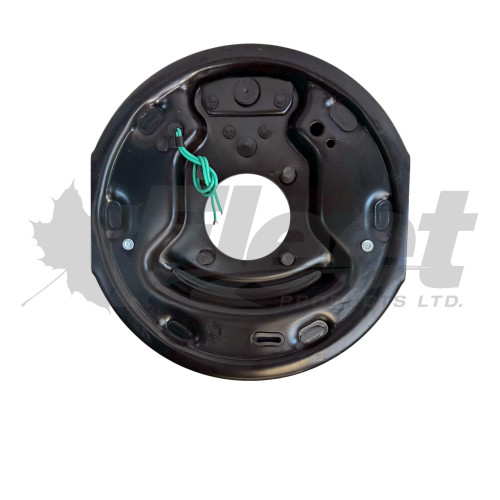

• Backing Plate: E-coated or painted for corrosion resistance
• Wiring: Two-wire hookup (non-polarized)
Applications: Used on light and medium-duty trailers with Dexter, Lippert, AL-KO, Rockwell, and similar 3.5K axles. Designed for right-hand axle positions with 4-bolt flanges. Compatible with standard 10"x2-1/4" drums and most brake controllers.
CROSS-REFERENCE(S):
FP12-1014, 12-1014, K23-027-00, 023-027-00, K23-027-01, K23-027-02, K23-27-00, K23-27, 23-27, 4701-R, AKEBRK-35R, B10E-22, 296449, 122232, 12-22, EB01-101, 363384.2, 81071, EB01-105, K363383.1, 181800, 188865, SIRK23-27, SIRK2327, EB01105, 160.2327A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Bolts directly to standard axle flange with four included nuts
✔ Two-wire connection – either lead can serve as ground or power
✔ Use with 10" x 2-1/4" brake drum/hub assemblies
✔ Adjust manually after installation via rear access port
✔ Compatible with most electric brake controllers
✔ Always replace left and right brake assemblies together for even braking
