Description
FP10020682 – AIR DISC ROTOR – FREIGHTLINER CASCADIA P3 W/HARDWARE
PART NUMBER(S):
Fleet Products: FP10020682 (New) | OE: Meritor M44DH20682, ConMet 10020682, ConMet 10020109, ConMet 10020108, Durabrake 76620, Webb 56090PK, 125710
DESCRIPTION:
Model: WABCO MAXXUS Air Disc Brake Rotor
Vehicles: Freightliner Cascadia P3

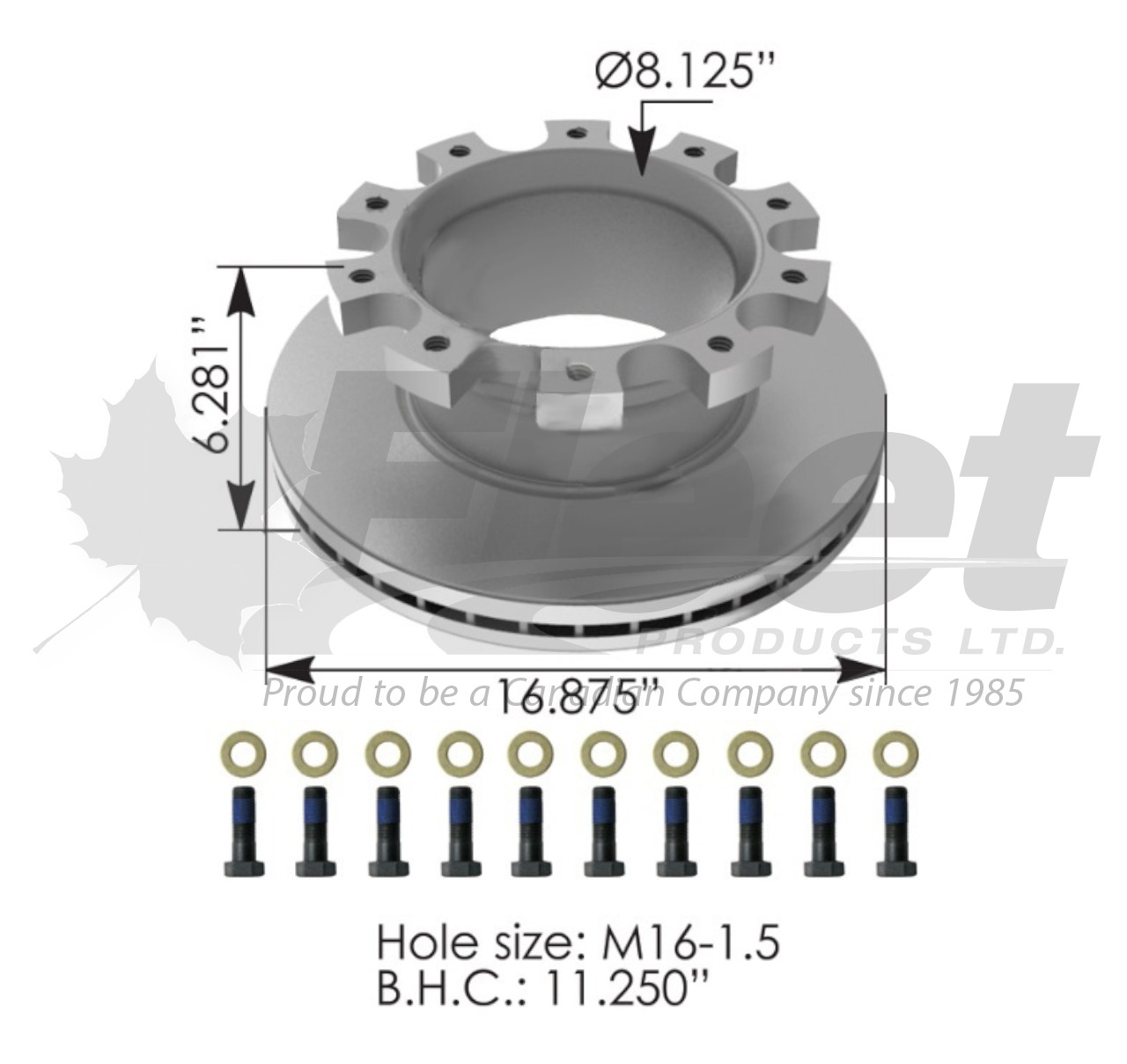

• Outside Diameter: 16.875″
• Overall Depth: 6.281″
• Bolt Circle Diameter: 11.250″
• Bolt Holes: 10
• Bolt Hole Size: M16-1.5
• Pilot Diameter: 8.125″
• Material: High-strength cast iron (SAE G3000 certified)
• Threaded Holes: Yes
• Rotor Type: U-Style
• Includes Hardware: Yes (Fleet Products kit)
• Finish: Precision-machined for OEM fit
• Mount Type: Threaded hub design
• Position: Steer or Drive axle (verify on vehicle)
• Compliance: IATF 16949:2016 certified, OEM-grade specs
Applications:
Direct replacement air disc rotor for Freightliner Cascadia P3 trucks equipped with WABCO MAXXUS disc brake systems. Engineered for maximum heat dissipation and extended wear performance under fleet-duty cycles. Compatible with OE and aftermarket MAXXUS braking assemblies on drive and steer axles.
CROSS-REFERENCE(S):
10020682, CM10020682, 15310020109, 052-15310020109, 153.10020109, 10020109, M44DH20682, 1065025GF, 76620, AMR2240N, 125710, OTR76620, 56090PK, 235M44DH20682, ADR1110, BR17D135, CNM10020682, PL76620, RB76620, TDAM44DH20682, C10020682, 10020682, CM10020682, 153.10020109, 0601602716469, 10020109, 10AR020109G, 56090PK, 76620, CSD17A35, M44D20682, M44DH20682, PL76620
A cross-reference listing means this part may be a suitable replacement for the part numbers listed. Please confirm all dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm correct axle position (steer or drive) before installation
✔ Tighten mounting hardware to OEM torque specifications
✔ Always replace rotors in pairs for optimal braking performance
✔ Use proper anti-seize compound on mating surfaces
✔ Verify caliper clearance and pad fitment before test drive
✔ Avoid rotor surface contamination during install
