Description

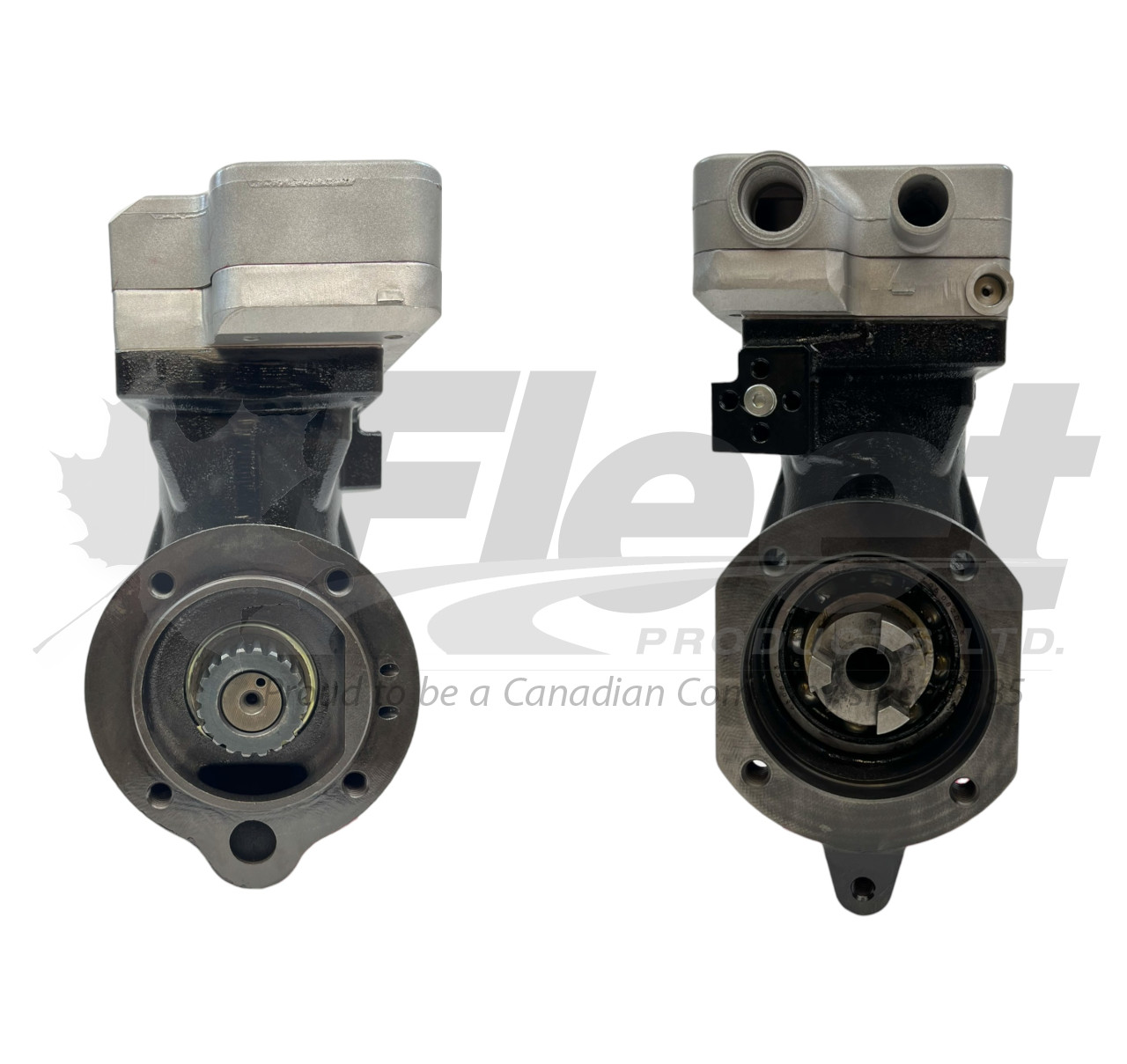

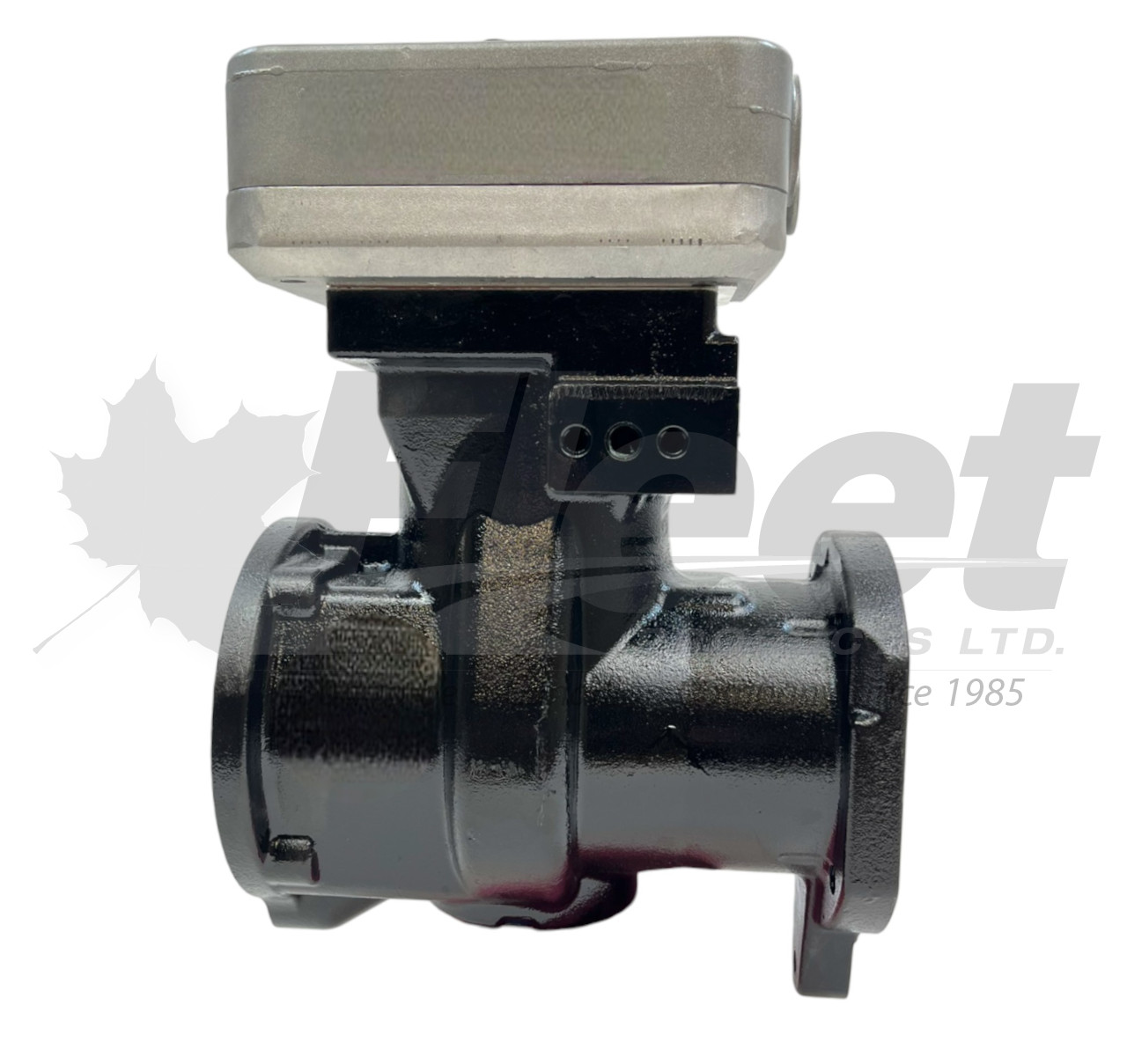

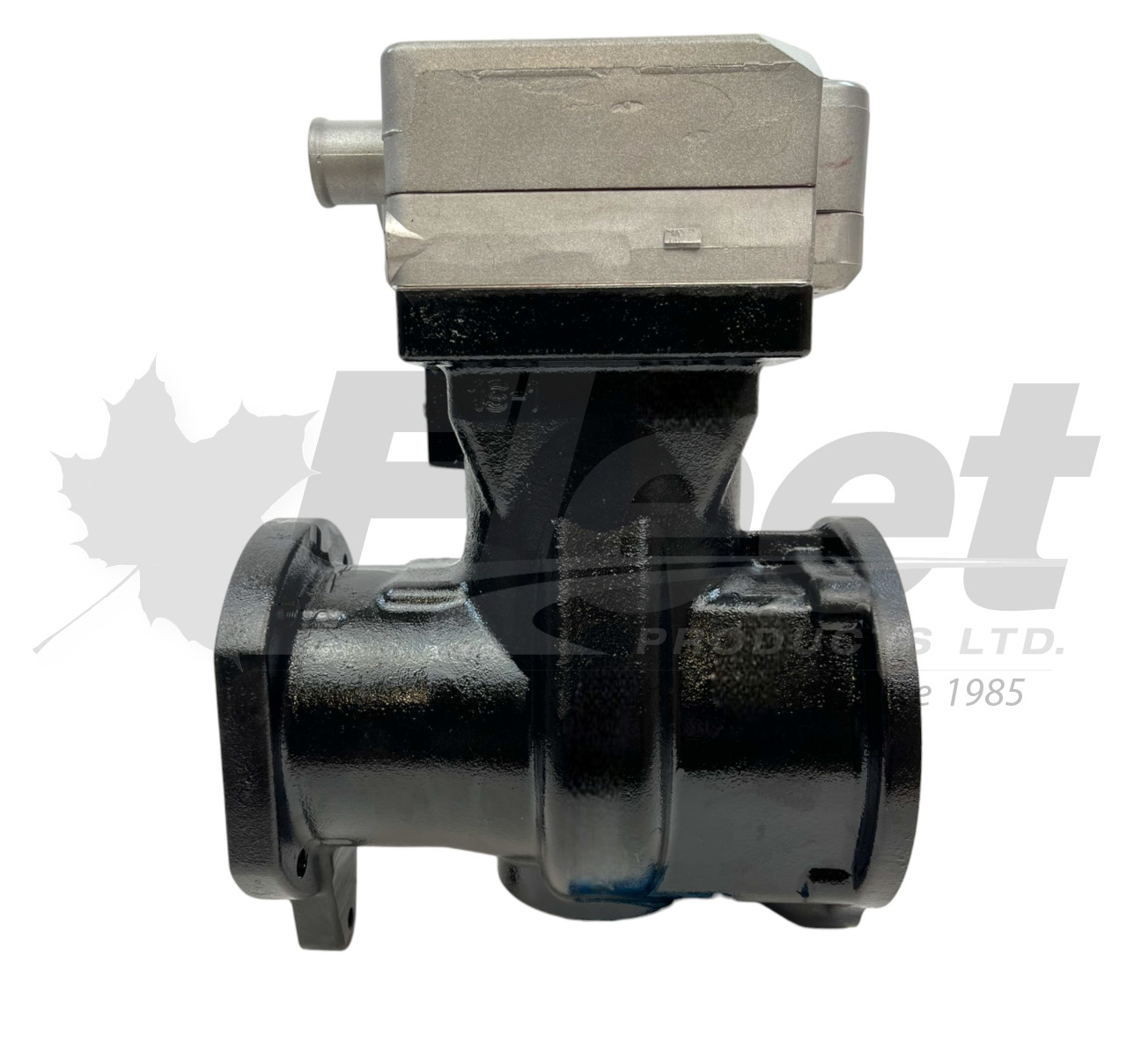

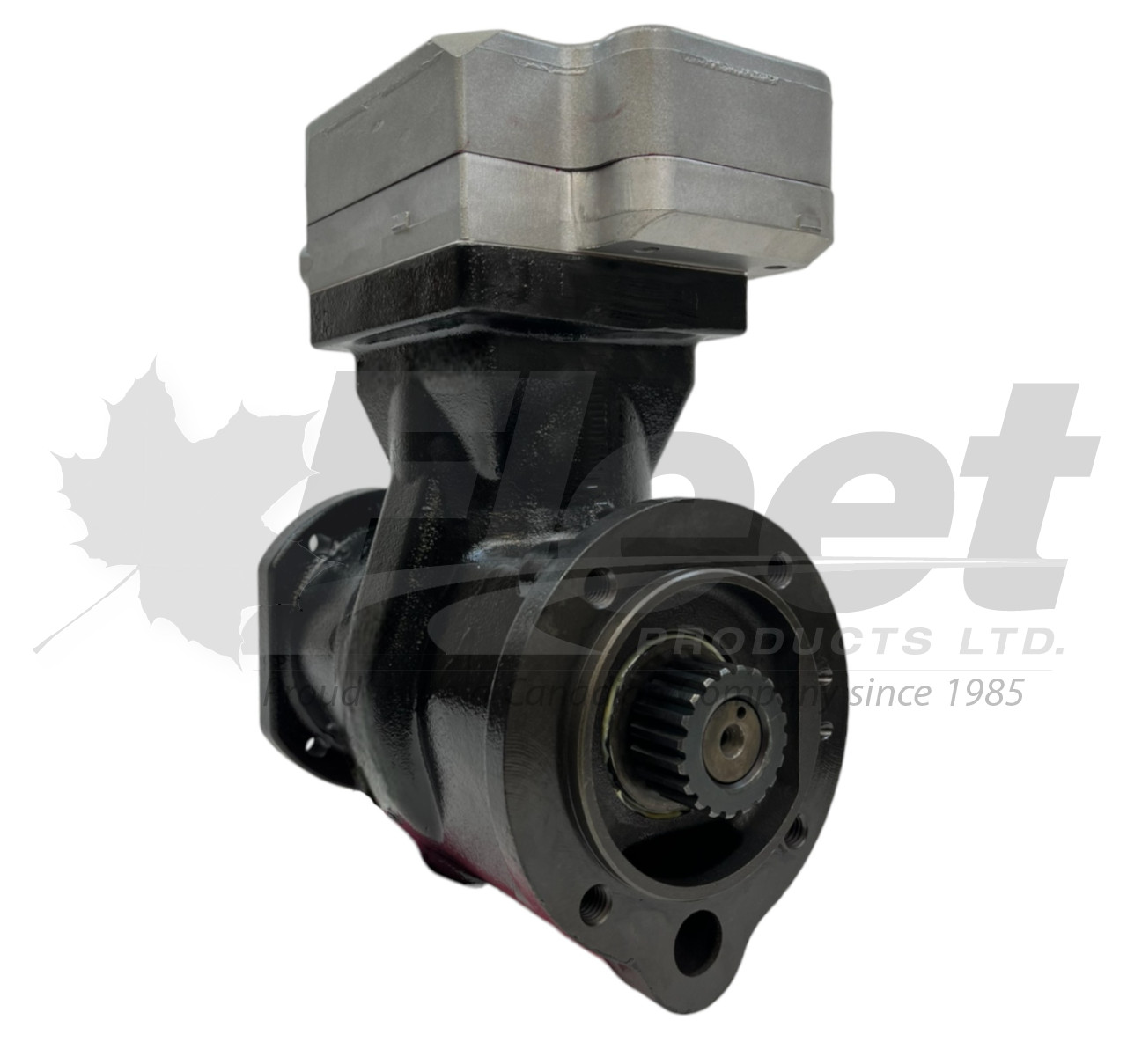

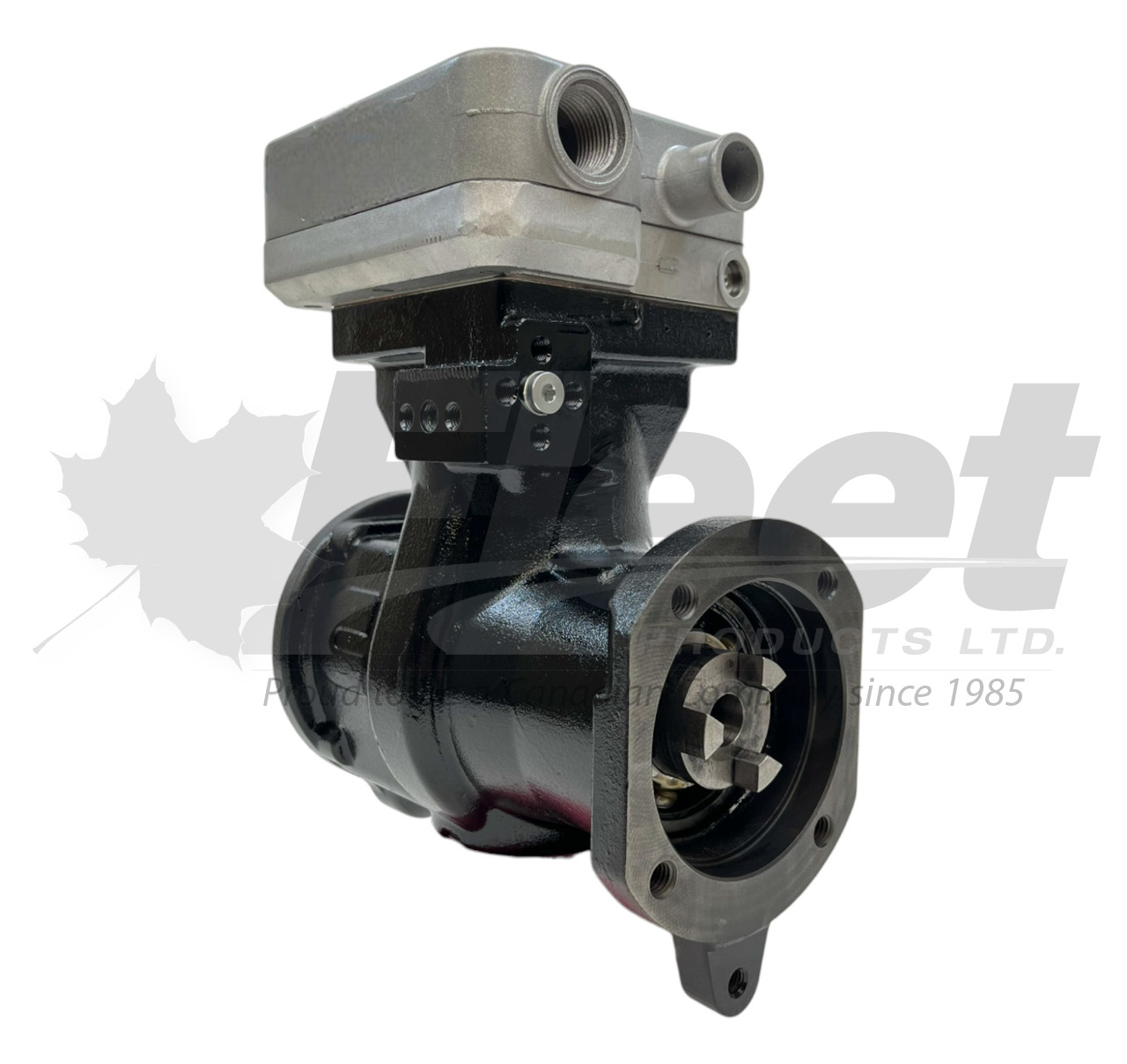

9111535200X – 85MM CUMMINS "CERTIFIED REMANUFACTURED" AIR BRAKE COMPRESSOR – L/M/N ENGINES
PART NUMBER(S):
Fleet Products: 9111535200X (Remanufactured) | OE: 3104324, 3104324RX, 3558163, 3103403, 3104324, 3558163, 4059825, 4318214, 4952756, 9111535207X, 911 153 608 7, 9111536087, 3104324RX
DESCRIPTION:
Model: NS318
Vehicles: Cummins L-Series, M-Series, N-Series Engines
• Bore Size: 85 mm
• Airflow: 18.7 CFM
• Water Port: 3/4" – 16 STOR (Straight Thread O-Ring)
• Discharge Port: M27 – 2.0 STOR
• Governor Port: M10 – 1.0 STOR
• Mounting Style: Standard flange mount
• Drive Type: Engine-driven with tang

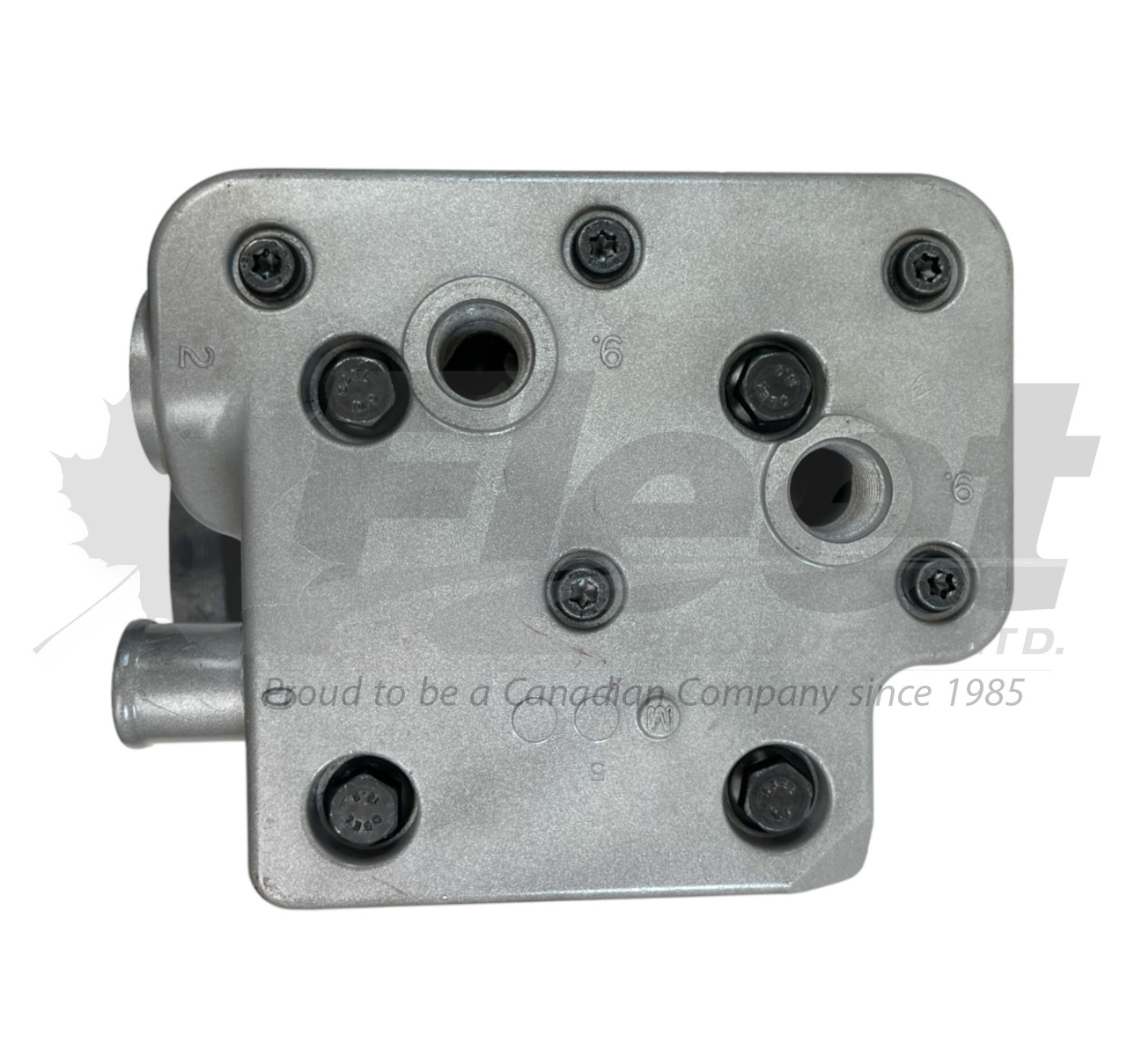

• Head Assembly: 9111539202AH
• Thread Type: STOR – Straight Thread O-Ring
• Application: Designed for use in heavy-duty trucks, semi trucks, commercial vehicles, and fleet tractors running Cummins L, M, or N Series engines
Applications:
Optimized for direct replacement in Cummins L/M/N Series diesel platforms. Common in Class 8 trucks, vocational workhorses, and long-haul freight carriers. This SS318 model supports OE air systems with 18.7 CFM output for stable brake pressure and performance.
CROSS-REFERENCE(S):
1650792011, 165-079-2011, 170.AC535200, 19700147D, 2500030003, 3103403, 3103403RX, 3104324, 3104324RX, 3558163, 4053825, 4059825, 4059825RX, 4318214, 4318214NX, 4318214RX, 4952756, 4952756RX, 701172AT, 9111530200, 9111535200, 9111535200X, 9111536080, P070278R, S21433, S-21433, Cummins (3558163, 3103403,3104324,3558163, 4059825, 4318214, 4952756), 9111535207X, (3558163, 3103403,3104324,3558163, 4059825, 4318214, 4952756), 9111535207X , (4318214, 3103403, 3103403), 3103603, 3104324, 3558163, 4318214, 9111535207X, 1650792011, 19700147D, 2500-030-003, 2500030003, 3103403, 3103403RX, 3104324, 3104324RX, 3558163, 4059825, 4059825RX, 4318214, 4318214NX, 4318214RX, 4952756, 4952756RX, 9111535200, 9111535200, 9111535207, 9111535207X, 9111536080, S-21433, S21433, 701174AT, 104324, 911 153 608 7, 9111536087, 3104324rx
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Confirm all specs before ordering.
IMPORTANT INSTALLATION NOTES:
✔ Always inspect or replace the discharge line from the compressor head
✔ Improper routing or damaged lines can cause premature compressor failure
✔ Follow Cummins OEM installation specs for best performance
✔ Confirm STOR thread compatibility with plumbing fittings
✔ Use included gaskets (3060539 for mount, 102368CW/CC for governor port)
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
WHY CHOOSE Fleet Products | KBR - Heavy Duty Truck & Trailer PARTS?
• Canadian-owned since 1985
• Trusted by fleets, mechanics, and B2B partners across North America
• Fast, Reliable Shipping Across North America
• Competitive pricing with Core Return Refunds
• Price Match Guarantee – Find a better price? We’ll beat the difference by 10%!
Warranty Information
