Description

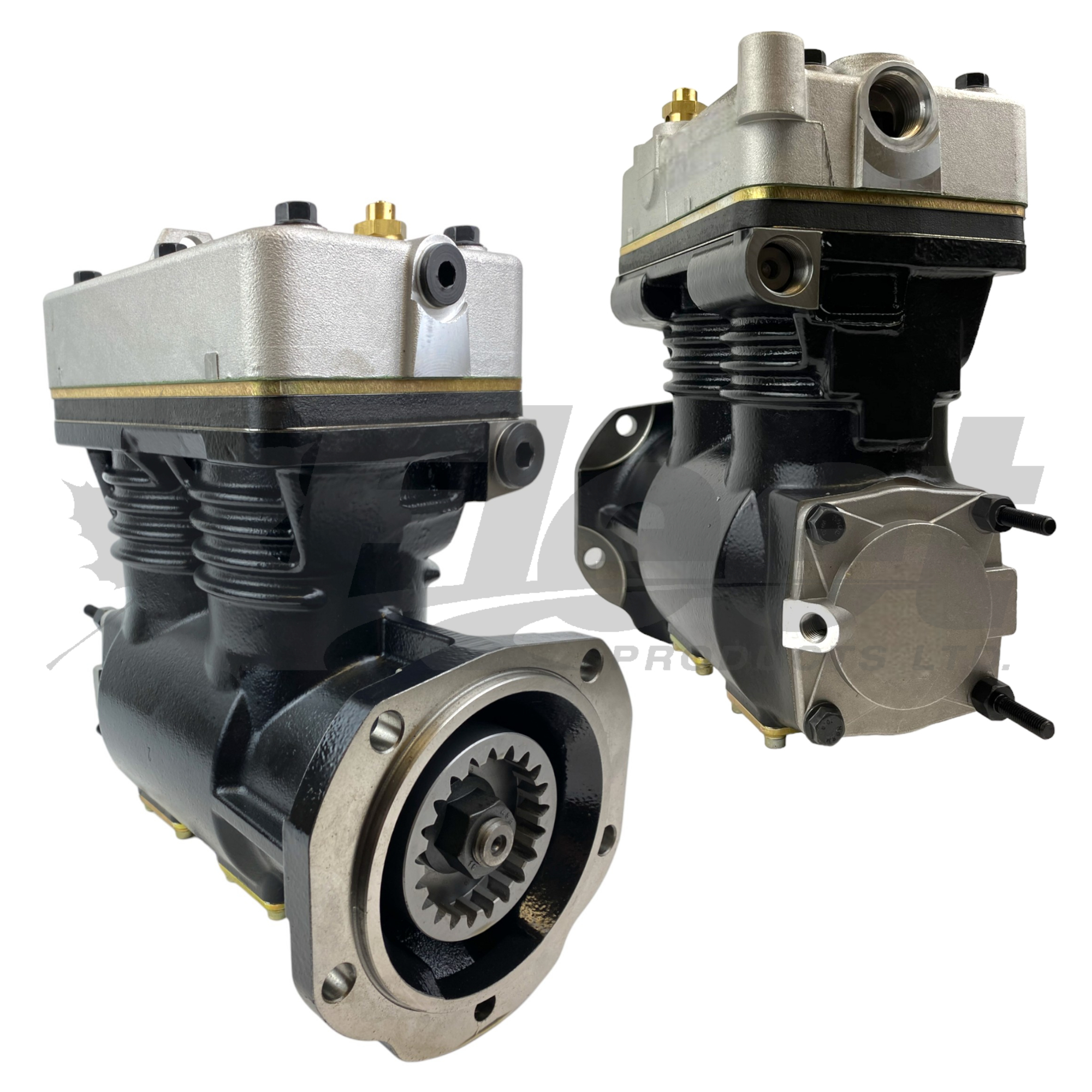

DF-596 DETROIT DIESEL "CERTIFIED REMANUFACTURED" AIR BRAKE COMPRESSOR
PART NUMBER(S):
Fleet Products: 5005875X (Remanufactured) 5005875 (NEW)| OE:
-
Detroit Diesel: 23515565, 23524143, 23515565R, 23524143R, DDE E23524143, DDE R23524143, DDEE23524143, DDER23524143, P23524143, R23524143
-
Cummins: 5003879, 5004416, 5004417, 5005875, 5005920, 5006407, 5008303, 5011086
-
Bendix: 5005875X, 800595
-
Haldex: 704067AT, 705795AT
DESCRIPTION:
Model: DF-596
Vehicles: Detroit Diesel Series 60 / Series 50 12.7L, 14L, 11.1L
• Cooling: Water-cooled head / Air-cooled crankcase
• Air Inlet: Top
• Air Outlet: Top 27 CFM
• Mounting: Flange mount
• Cylinders: 2
• Bore x Stroke: 3.465 in x 1.968 in
• Output @1250 RPM: 27 CFM
• Output @2100 RPM /120 PSI: 23 CFM
• Max RPM: 3000
• Coolant Flow (min): 2.5 gpm
Power
• Loaded @1800 RPM /120 PSI: 7.5 HP
• Unloaded @1800 RPM: 0.9 HP
Temperature Limits
• Max Inlet Air: 250°F
• Max Discharge Air: 400°F
Pressure Requirements
• Min Oil Pressure (idle): 15 PSI
• Min Oil Pressure (max speed): 15 PSI
• Min Governor Cutout: 130 PSI
Line Sizes
• Oil Supply: 3/16 in ID
• Unloader Line: 3/16 in ID
Port Sizes (Metric)
• Water In / Out: M16 x 1.5
• Safety Valve: M16 x 1.5
• Air Discharge: M27 x 2
• Unloader: M22 x 1.5
• Oil Inlet: M12 x 1.5
• Includes: Installation gaskets
Applications:
Suitable for Detroit Diesel Series 60 and Series 50 engines used in heavy-duty Freightliner, Western Star, and other vocational/severe-duty truck platforms. Provides air pressure to operate air brake systems. Certified remanufactured for dependable performance under demanding fleet conditions.
CROSS-REFERENCE(S):
00716800595, 046255005875X, 1628593, 1651795875, 20429339, 23515565, 23524143, 23515565R, 23524143R, 3987602, 5003879, 5004416, 5004417, 5005875, 5005875B1, 5005875BXR, 5005875R, 5005875RX, 5005875X, 5005875XBXR, 5005875XM1D, 5005875X-MD, 5005920, 5006407, 5008303, 5011086, 5396-5005875X, 636.01.1000, 636011000, 636-01-1000, 704067AT, 705795AT, 7455005875X, 745-5005875X, 745800595, 745-800595, 800595, 800595BXW, 800868, 8113264, 85000064, BAR5005875, BDR5005875X, BEN5005875X, BEN800595, BW 5005875, BW 5005875X, BW 800595, BW R5005875, BW R5005875/CR, BW5005875, BW5005875X, BW800595, BWR5005875, BX 5005875X, BX5005875, BX5005875X, BX800595, BXW5005875X, DDE E23524143, DDE R23524143, DDEE23524143, DDER23524143, EX5005875X, hdx5005875x, HVG5005875X, II37369, K000236, LP4974, LP4977, P23524143, R23524143, R9555005875X, ZAC800595, ZBX800595, ZZ5005875X, 5005875, 5004416, 5004417, 5005920, 23524143, 23514143
A cross-reference listing means this part should be a suitable replacement for the part numbers listed. Please confirm all specifications before installation.
IMPORTANT INSTALLATION NOTES:
✔ Includes new installation gaskets
✔ Inspect and flush all air and coolant lines before installation
✔ Do not reuse contaminated lines or seals
✔ For best results, follow Detroit Diesel OEM installation procedures
✔ Ensure compressor drive gear alignment is accurate
Key Torques
• Head Bolts (13mm): 265–292 in-lb
• Valve Bolts (10mm): 101–111 in-lb
• Crankshaft Nut: 1200–1440 in-lb
• M12: 222 in-lb
• M16: 386 in-lb
• M22: 531 in-lb
• M27: 792 in-lb
