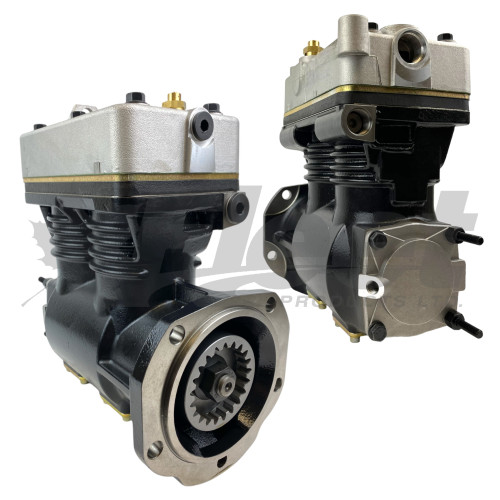

DF-596 DETROIT DIESEL AIR BRAKE COMPRESSOR (NEW)
PART NUMBER(S):
Fleet Products: 5005875 (New), 5005875X (Reman) | Replaces OE: Bendix 5003879, 5004412, 5004416, 5004417, 5005875, 5005920, 5006407, 5008303, 5011086, 800595, 800686 | Detroit Diesel 23514143, 23515565, 23515565R, 23524143, 23524143R, DDE E23524143, DDE R23524143, DDEE23524143, DDER23524143, P23524143, R23524143 | Haldex 704067AT, 705795AT | Meritor R9555005875X | PACCAR 5005875XM1D | Mack 5396-5005875X, 745-5005875X, 745-800595, 7455005875X, 745800595 | Automann 170.AC5005875
DESCRIPTION:
Model: New DF-596 Style Air Brake Compressor
Vehicles: Detroit Diesel Series 60 / Series 50 12.7L, 14L, 11.1L engines on Freightliner, Western Star, and other heavy-duty platforms
Bore x Stroke: 3.465 in x 1.968 in
• Oil Supply/Unloader Line Size: 3/16 in ID
• Water In/Out/Safety Valve Port: M16 x 1.5
• Air Discharge Port: M27 x 2
• Unloader Port: M22 x 1.5
• Oil Inlet Port: M12 x 1.5
• Air Inlet/Outlet: Top
• Mounting: Flange mount
• Drive: Engine-driven gear drive
• Cooling: Water-cooled head, air-cooled crankcase
• Cylinders: 2, 608 CC
• Output: 27 CFM at 1250 RPM; 23 CFM at 2100 RPM / 120 PSI
• Maximum RPM: 3000
• Minimum Coolant Flow: 2.5 GPM
• Loaded Power: 7.5 HP at 1800 RPM / 120 PSI
• Unloaded Power: 0.9 HP at 1800 RPM
• Maximum Temperature: 250°F inlet / 400°F discharge
• Minimum Oil Pressure: 15 PSI at idle and maximum speed
• Minimum Governor Cutout: 130 PSI
• Includes: Installation gaskets
CROSS-REFERENCE(S):
00716800595, 046255005875X, 1628593, 1651795875, 20429339, 5005875B1, 5005875BXR, 5005875R, 5005875RX, 5005875X, 5005875XBXR, 5005875X-MD, 636-01-1000, 636.01.1000, 636011000, 800595BXW, 800868, 8113264, 85000064, BAR5005875, BDR5005875X, BEN5005875X, BEN800595, BW R5005875, BW R5005875/CR, BW5005875, BW5005875X, BW800595, BWR5005875, BX5005875X, BX800595, BXW5005875X, EX5005875X, hdx5005875x, HVG5005875X, II37369, K000236, LP4974, LP4977, ZAC800595, ZBX800595, ZZ5005875X
A cross-reference listing means this part should be a suitable replacement for the numbers shown.
IMPORTANT INSTALLATION NOTES:
✔ New installation gaskets included.
✔ Inspect and flush all air and coolant lines before installation.
✔ Do not reuse contaminated lines, fittings, or seals.
✔ Follow Detroit Diesel OEM torque and mounting procedures.
✔ Verify compressor drive gear alignment before startup.
✔ Torque 13 mm head bolts: 265–292 in-lb.
✔ Torque 10 mm valve bolts: 101–111 in-lb.
✔ Torque crankshaft nut: 1200–1440 in-lb.
✔ Torque M12 fasteners: 222 in-lb.
✔ Torque M16 fasteners: 386 in-lb.
✔ Torque M22 fasteners: 531 in-lb.
✔ Torque M27 fasteners: 792 in-lb.
Warranty Information
Product Videos
Reviews
1 Review
-
Good guidance before committing to install
Purchased this new DF-596 for a Detroit Series 60 application and called in before installation to confirm setup. Spoke with Dallas, who was upfront about the known reed valve issues on this model and explained why many customers are switching to the BA-922 instead. He walked through the technical reasoning clearly and didn’t push a sale one way or the other. Compressor itself arrived new and complete, but the honest guidance saved me from installing something that may not be the best long-term option. Still deciding on the switch, but the support alone was excellent and appreciated.
