Description

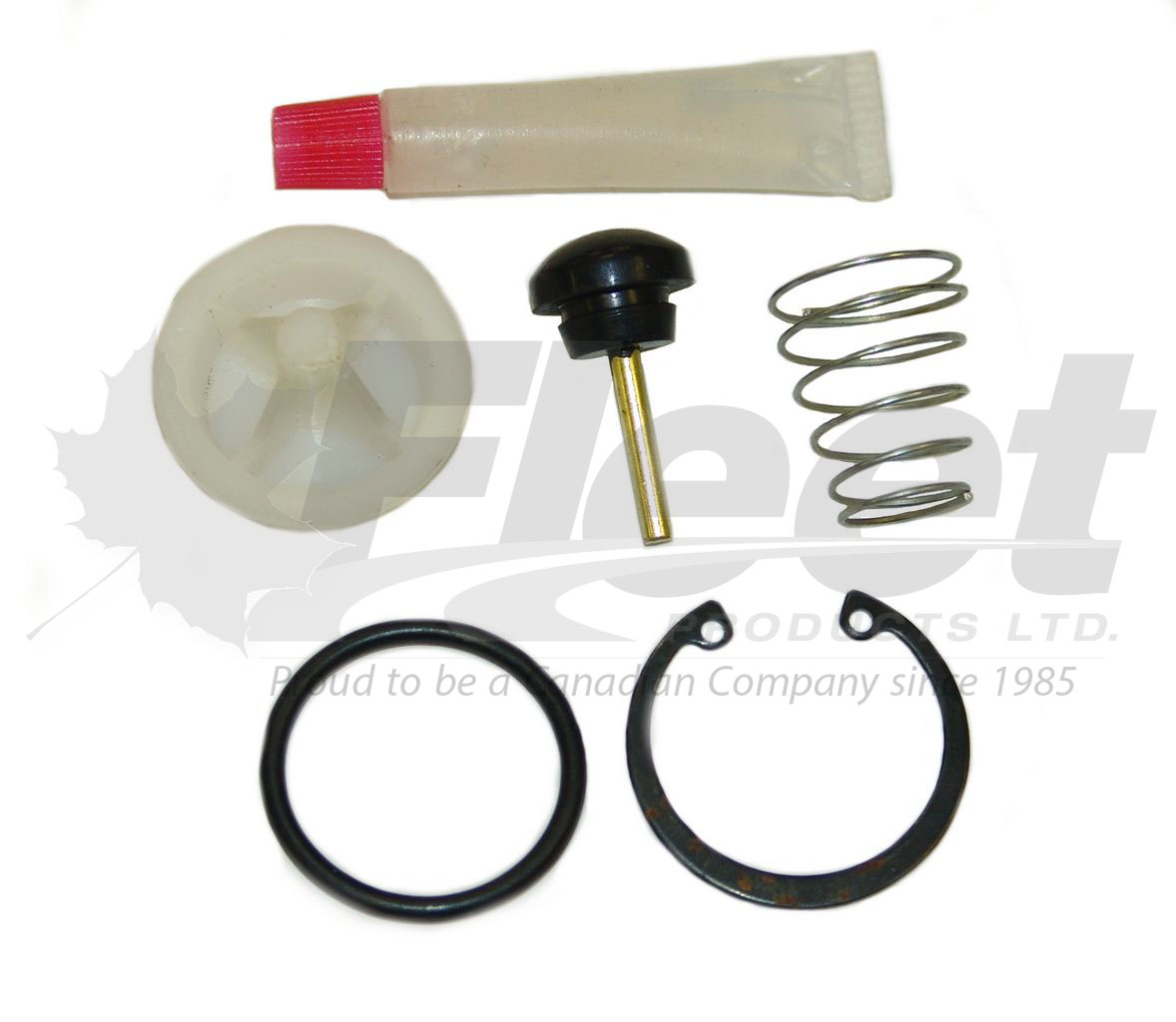

5005624-G3 - MODEL SP DELIVERY CHECK VALVE
PART NUMBER(S):
Fleet Products: 5005624-G3 (New) | Bendix 5005624 | Meritor R9555005624N | Automann 170.5005624 | Euclid EBN5005624N | Freightliner BW5005624 | Tectran AT5005624 | Tuffline TLA5005624
DESCRIPTION:
Model: Model SP Air Dryer Delivery Check Valve
Vehicles: Heavy-duty trucks, buses, and trailers equipped with Model SP air dryers
• Valve Type: One-Way Delivery Check Valve
• Function: Prevents backflow and isolates system pressure
• Installation Location: Dryer delivery port
• Mounting Style: Direct-fit replacement
• Application: Model SP air dryer delivery circuit
Applications: Used in Model SP air dryers to maintain one-way airflow through the delivery circuit. Helps prevent system pressure loss and reverse airflow during purge and air dryer operation.
CROSS-REFERENCE(S):
5005624, 5005624K, K5005624, E-BN5005624N, AV5005624, 5005624BXW, 745-5005624, AT5005624, AT5005624TEC, AV 5005624, BAN5005624, BEN5005624, BW5005624, BW 5005624, BX5005624, 060-5005624, R9555005624N, TLA5005624, TWDBEN5005624, ZAC5005624
A cross-reference listing means this part should be a suitable replacement for the part numbers listed. Please confirm dryer model and check valve orientation before installation.
IMPORTANT INSTALLATION NOTES:
✔ Direct replacement for the delivery port of Model SP air dryers.
✔ Fully depressurize the air system before removal or installation.
✔ Install in the correct flow direction to maintain one-way airflow.
✔ Inspect delivery port threads and sealing surfaces before installation.
✔ Follow OEM torque specifications during installation.
✔ After installation, check for air leaks and verify system pressure retention.
