Product Description

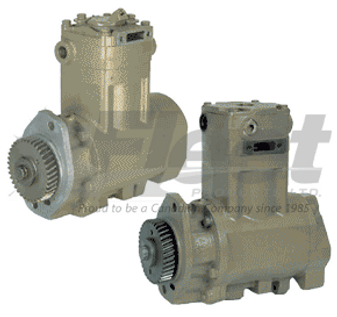

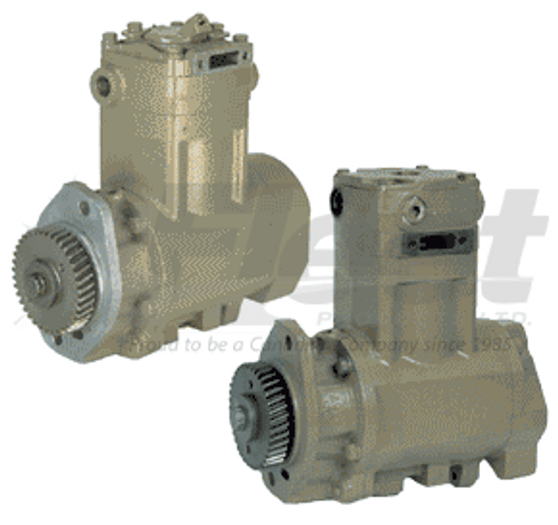

3558006X - SS296C CUMMINS AIR BRAKE COMPRESSOR (REMANUFACTURED)
PART NUMBER(S):
Fleet Products: 3558006X (Remanufactured) | OE: SS296C, SS296BE, SS338CE
DESCRIPTION:
Model: SS296C Super Single Cylinder
Vehicles: Cummins Engines (L/K/N Series), Mack E6/E7
• Mounting: 2-hole Flange Mount
• Drive Type: Engine Driven (Thru-Drive for Power Steering Pump)
• Cooling Method: Water Cooled
• Cylinder Count: Single Cylinder
• Bore Diameter: 92.1 mm
• Air Inlet: Left
• Air Outlet: Front
• Discharge Type: Threaded
• Spline: 9 Tooth
• Rated Displacement: 13.2 CFM @ 1250 RPM
• Application: Designed for use on heavy-duty trucks, semi-trailers, 18-wheelers, and vocational vehicles powered by Cummins or Mack platforms
• Build: Fully remanufactured to OEM standards — cleaned, inspected, and tested for durability, performance, and reliability
Applications:
Used to pressurize air for actuation of air brake systems in commercial vehicles using Cummins or Mack E6/E7 engines. Built for dependable operation in demanding over-the-road conditions.
CROSS-REFERENCE(S):
BEN3558006X, BAR3558006X, 3558006RX, SS296BE, SS296C, SS338CE, 3558006RX, 3558018, 711061AT
A cross-reference listing means this part should be a suitable replacement for the part numbers listed. Please confirm all dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Designed for Cummins and Mack E6/E7 engine platforms — verify mount and drive compatibility
✔ Thru-drive capability for power steering pump requires precise alignment
✔ Always flush oil and coolant lines before installation
✔ Torque flange bolts to OE specs and verify all port orientation from front and rear
✔ Replace air filters and confirm max inlet pressure is below 25 PSIG
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
