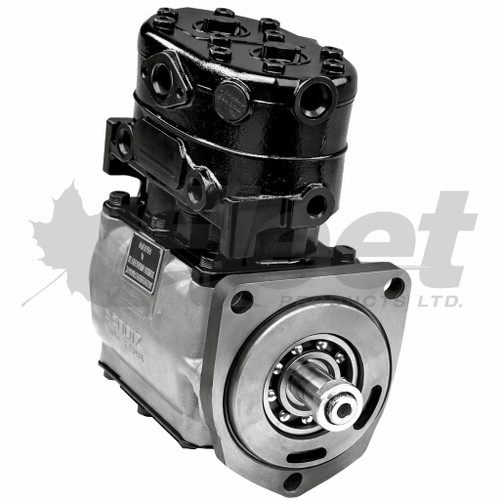

TF-700 MACK COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 289348X (Reman) | OE:102850, 102851, 104977, 280628, 280860, 283822, 283823, 289246, 289348, 102850, 102851, 104977, 280628, 280860, 283822, 283823, 289246, 289348 MACK: 303-GB-4204, 303-GB-4200R
DESCRIPTION:
Model: TF-700 Mack
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Cooling: Water
• Air Inlet: Left
• Air Outlet: Left/Top (Optional Top or Left Discharge)
• Mounting: Flange Mount, Engine Drive
• Cylinders: 2
• Bore x Stroke: 2.75 in x 1.81 in
• Displ @1250 RPM: 15.5 CFM
• Max RPM (naturally aspirated): 3000
• Min Coolant Flow @Max RPM: 2.5 gpm
• Min Unload Pressure: 60 PSI
• Max Inlet Temp: 250°F
• Max Discharge Temp: 400°F
• Discharge Line: 5/8 in OD copper
• Oil Return Line: 5/8 in OD
• Oil Supply Line: 1/4 in OD
• Unloader Line: 1/4 in OD
• Coolant Line: 1/2 in OD
• Port Orientation: Viewed from rear
• Notes: Mack V8
Applications:
The TF-700 Mack Compressor (289348X) is engineered for use in air brake systems for Mack V8 trucks and other heavy-duty commercial vehicles. It provides the necessary air pressure for brake system actuation, designed to meet rigorous fleet demands.
CROSS-REFERENCE(S):
BEX289348X, 745X289348, BWR289348, E-BN289348, ZZ289348
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear.
✔ Confirm Mack V8 fitment before installation.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
WHY CHOOSE FLEET PRODUCTS | KBR - HEAVY DUTY TRUCK & TRAILER PARTS?
• Canadian-owned since 1985
• Trusted by fleets, mechanics, and B2B partners across North America
• Fast, Reliable Shipping Across North America
• Competitive pricing with Core Return Refunds
• Price Match Guarantee | Find a better price? We'll beat the difference by 10%!
