Product Description

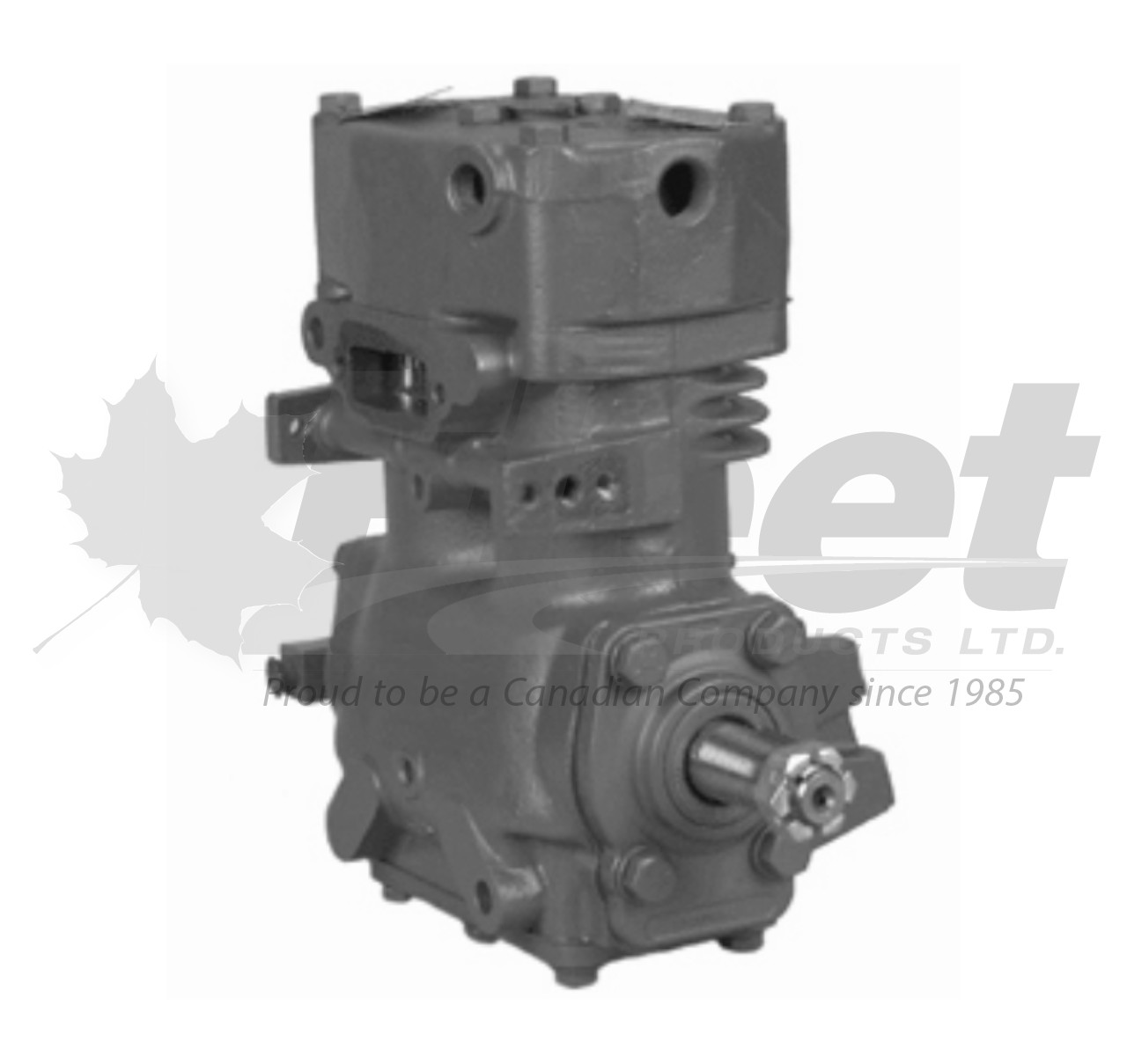

286556X - TF-501 PULLEY DRIVE COMPRESSOR – SIDE MOUNT – LEFT
PART NUMBER(S):
Fleet Products: 286556X (Remanufactured) | OE: 286556, 286565, 228479
DESCRIPTION:
Model: TF-501 Pulley Drive – Side Mount – Left
Vehicles: Ford and Cummins applications with side-mount TF-501 compressors
• Cooling: Water cooled
• Air Inlet: Right (viewed from rear)
• Air Outlet: Right (viewed from rear)
• Discharge Type: Flange
• Mounting: Slant mount (Side mount – left)
• Drive Type: Pulley drive
• Notes: Drain in front
• Approximate Weight: ~40 lbs
• Dimensions: ~14.5 in height, ~13 in length
Applications: Designed for heavy-duty Ford and Cummins platforms using side-mount pulley-driven air compressors. Suitable for TF-501 configurations with right-side ports and left-hand slant mounts.
CROSS-REFERENCE(S):
286556X, 286556, 286565, 286565X, 286565B1, H286565X, MID286565X, R286565X, R955286565X, BX286565X, BX288087, BW286565X, 104854, 281469, 281602X, 283662X, BXR286565X, BXX286565, MI286565X, X286565, P286565, R288087
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear
✔ Typical flange nut torque: 80–100 ft-lbs
✔ Confirm side-mount (slant) compatibility before installation
✔ Drain orientation must face forward as designed
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
