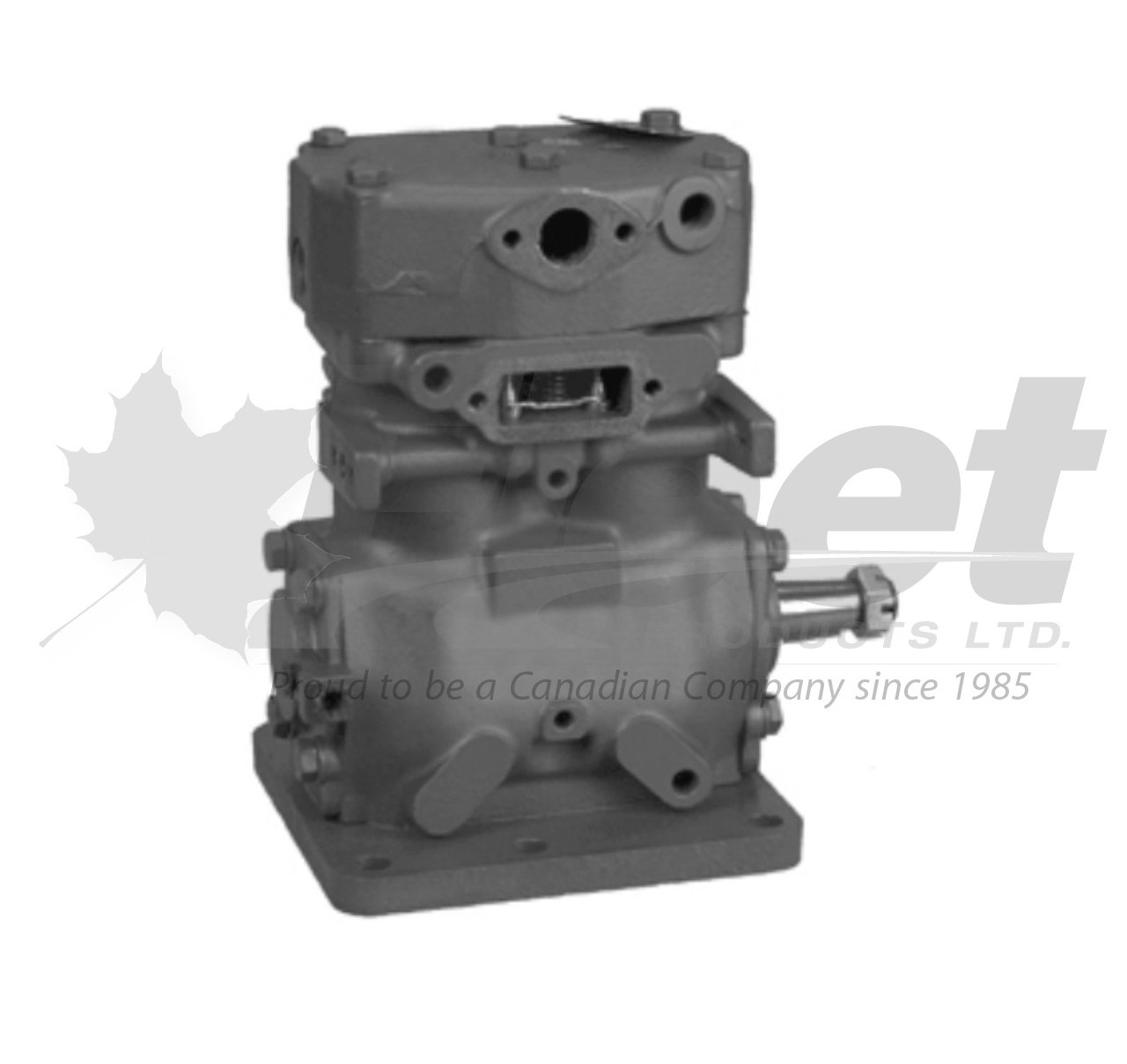

286535X - TF-501 BASE MOUNT COMPRESSOR (RIGHT PORTS, 6-HOLE)
PART NUMBER(S):
Fleet Products: 286535X (Remanufactured) | OE: 286529, 101894, 283392, 285937, 285943, 285969, 286535, 286683, 289097
DESCRIPTION:
Model: TF-501 Pulley Drive Air Brake Compressor – Base Mount
Vehicles: White; I.H.C. (Melrose Park); Drott-J.I. Case heavy-duty platforms, trucks, trailers
• Mounting Style: 6-Hole Base Mount
• Drive Type: Pulley (belt) driven
• Cooling: Water and Air cooled
• Air Inlet Port: Right (viewed from rear)
• Air Outlet Port: Right (viewed from rear)
• Discharge Type: Flange
• Drive Type: Pulley Drive
• Cylinders: 2
• Bore x Stroke: 2.625 in x 1.50 in
• Displ @1250 RPM: 12 CFM
• Displ per Rev: 16.5 cu in
• Max RPM (naturally aspirated): 3000
• HP @3000 RPM /100 PSI: 4.9 HP
• Min Coolant Flow @Max RPM: 2.5 gpm
• Min Unload Pressure: 60 PSI
• Max Inlet Temp: 250°F / Max Discharge Temp: 400°F
• Discharge Line: 5/8 in OD copper
• Oil Return Line: 5/8 in OD
• Oil Supply Line: 1/4 in OD
• Unloader Line: 1/4 in OD
• Inlet Cavity Line: 5/8 in ID (to air cleaner)
• Coolant Line: 1/2 in OD
• Shaft/Spline: Standard pulley shaft (non-splined)
Applications:
Ideal for heavy trucks, trailers, and semi tractors requiring a TF-501 compressor with right-side ports and 6-hole base mount. Designed to provide reliable air pressure for braking and auxiliary systems in Bendix-compatible configurations.
CROSS-REFERENCE(S):
286535X, 286535, TF-501, 286529, 04625286592X, BXC286592X, 102822, 289751
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm 6-hole base mount configuration matches original
✔ Torque flange bolts to 80–100 ft-lbs per OEM instructions
✔ Right inlet/outlet port alignment must match system layout
✔ Replace gaskets and follow TF-501 compressor install specs
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
