Product Description

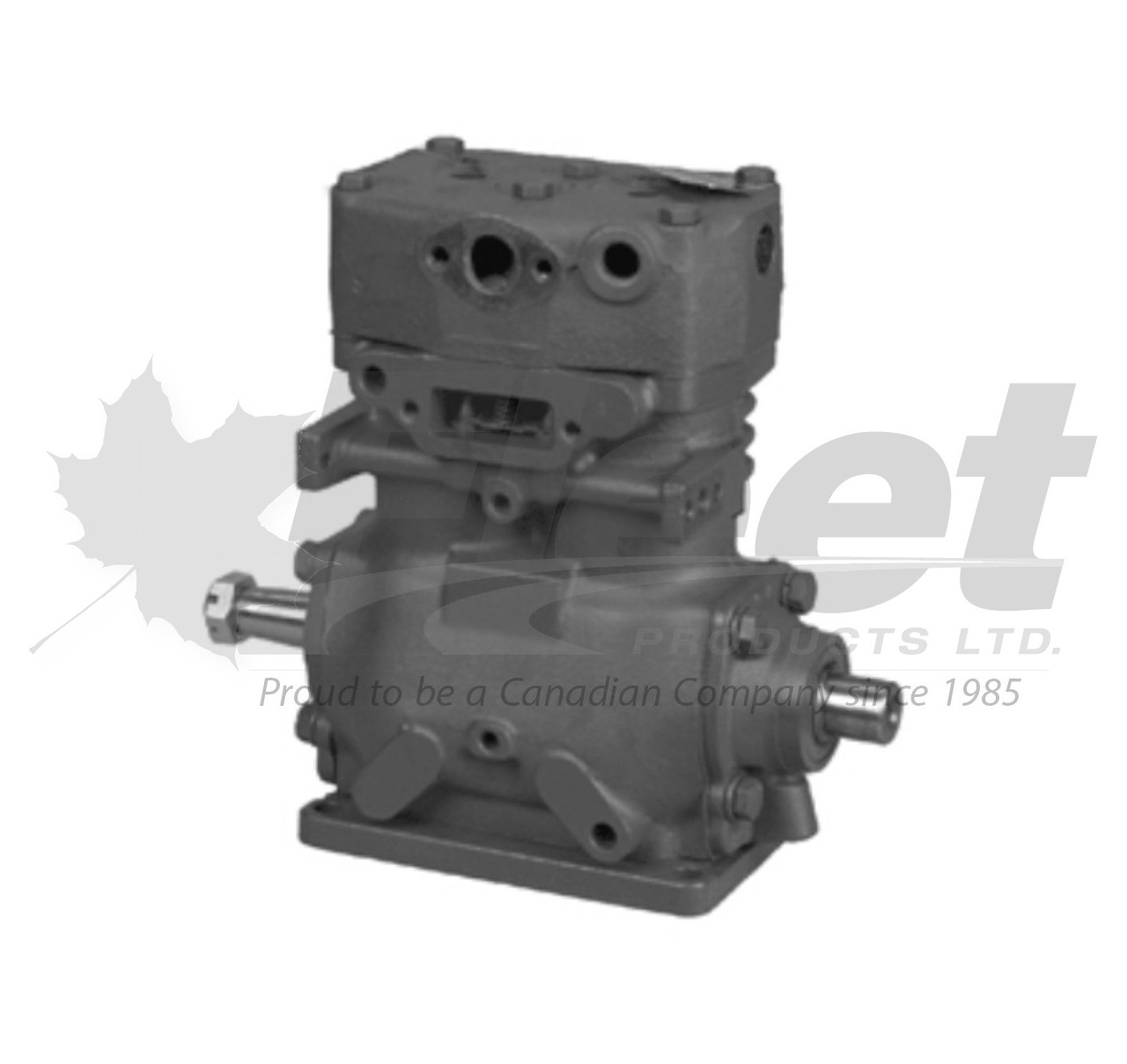

286533X - TF-501 PULLEY DRIVE COMPRESSOR
PART NUMBER(S):
Fleet Products: 286533X (Remanufactured) | OE: 286560, 286529, 04625286592X
DESCRIPTION:
Model: TF-501 Pulley Drive Compressor
Vehicles: Heavy trucks, semi trucks, 18-wheelers, commercial trucks
• Cooling: Water/Air
• Air Inlet Location: Right (viewed from rear)
• Air Outlet Location: Right
• Discharge Type: Flange
• Mounting: 4-Hole Base (Style A)
• Drive Type: Pulley
• Features: Thru-Drive, Base Oil Feed
• Weight: Approx. 40 lbs
• Rated CFM: ~12–13 CFM @ 1250 RPM
• Bore/Stroke: Approx. 2.75 in bore / 1.5 in stroke (typical for TF-501 series)
• Condition: Remanufactured
Applications:
Designed for air brake systems on heavy-duty trucks and vocational vehicles using water/air-cooled compressors. Ideal where thru-drive and base oil feed functionality is required for auxiliary components.
CROSS-REFERENCE(S):
286533X, 286560, 286529, 04625286592X, BXC286592X, 102822, 289751
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from the rear
✔ Torque mounting bolts to ~70 ft-lbs using 1/2" Grade 5 cap screws
✔ Torque pulley nut to 80–100 ft-lbs
✔ Use new installation gaskets for proper sealing
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
