Product Description

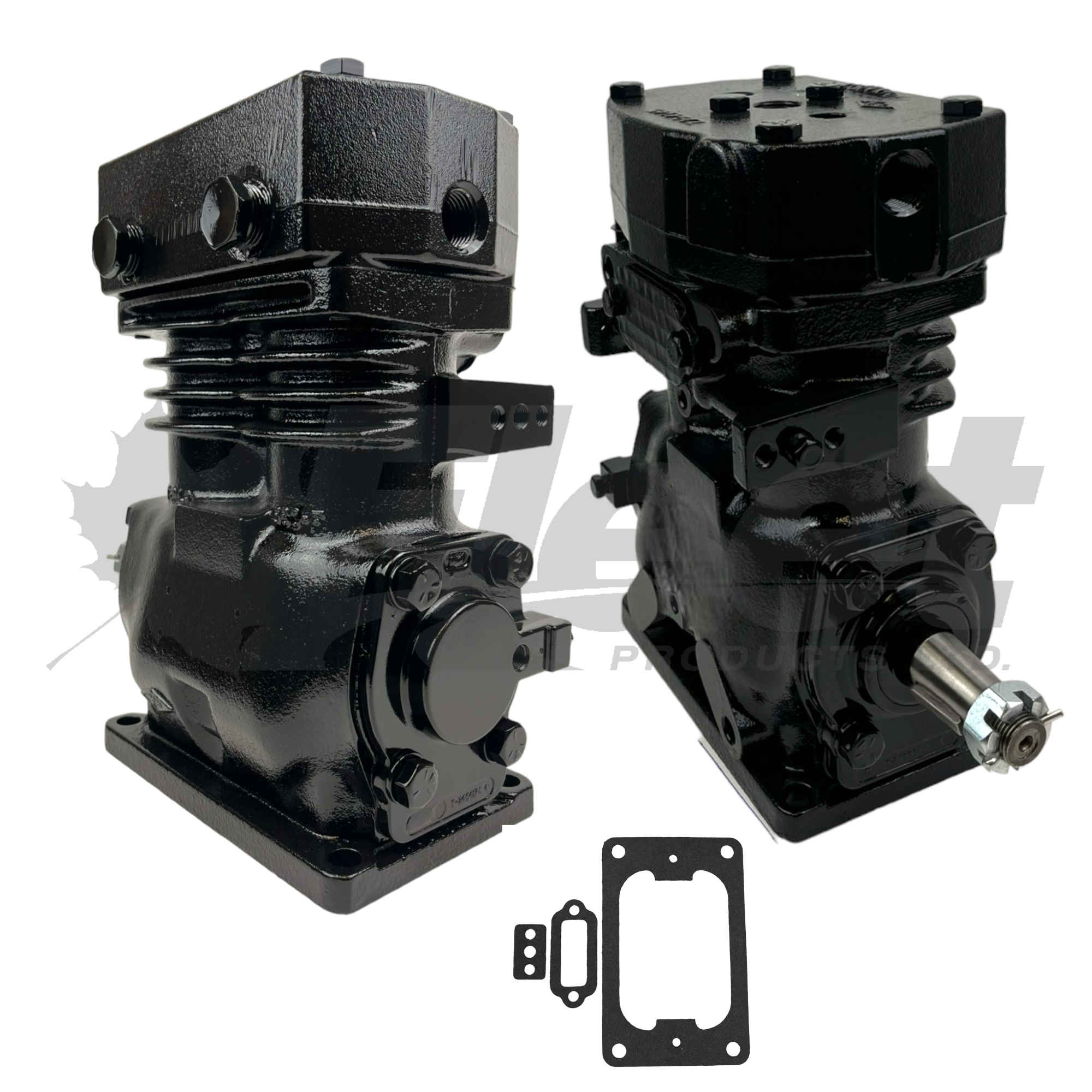

286529X – TF-501 Pulley Drive Compressor (Base Mount)
PART NUMBER(S):
Fleet Products: 286529X | OE: 286529, 04625286592X, BXC286592X, 102822, 289751
DESCRIPTION:
Model: TF-501 Pulley Drive Compressor (Base Mount)
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Cooling: Water & Air cooled
• Mounting: Base Mount (Category: Base Style A)
• Discharge Type: Threaded
• Air Inlet Port: Right
• Air Outlet Port: Top
• Weight: Approx. 40–46 lbs
• CFM: Approx. 13 CFM @ 1250 RPM
EL13060X Compressor may also be used for this application.
CROSS-REFERENCE(S):
227320TP, BX227320X, 745227320, 04625227320X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all port sizes and specifications match your application before installation.
IMPORTANT INSTALLATION NOTES:
✔ Includes installation gaskets
✔ Pulley nut torque: 80–100 ft-lbs
✔ Mounting bolts: Use 1/2" grade five screws, torque to ~70 ft-lbs
✔ Align pulley and ensure proper belt tension during installation
✔ Core return required for remanufactured units
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
