Product Description

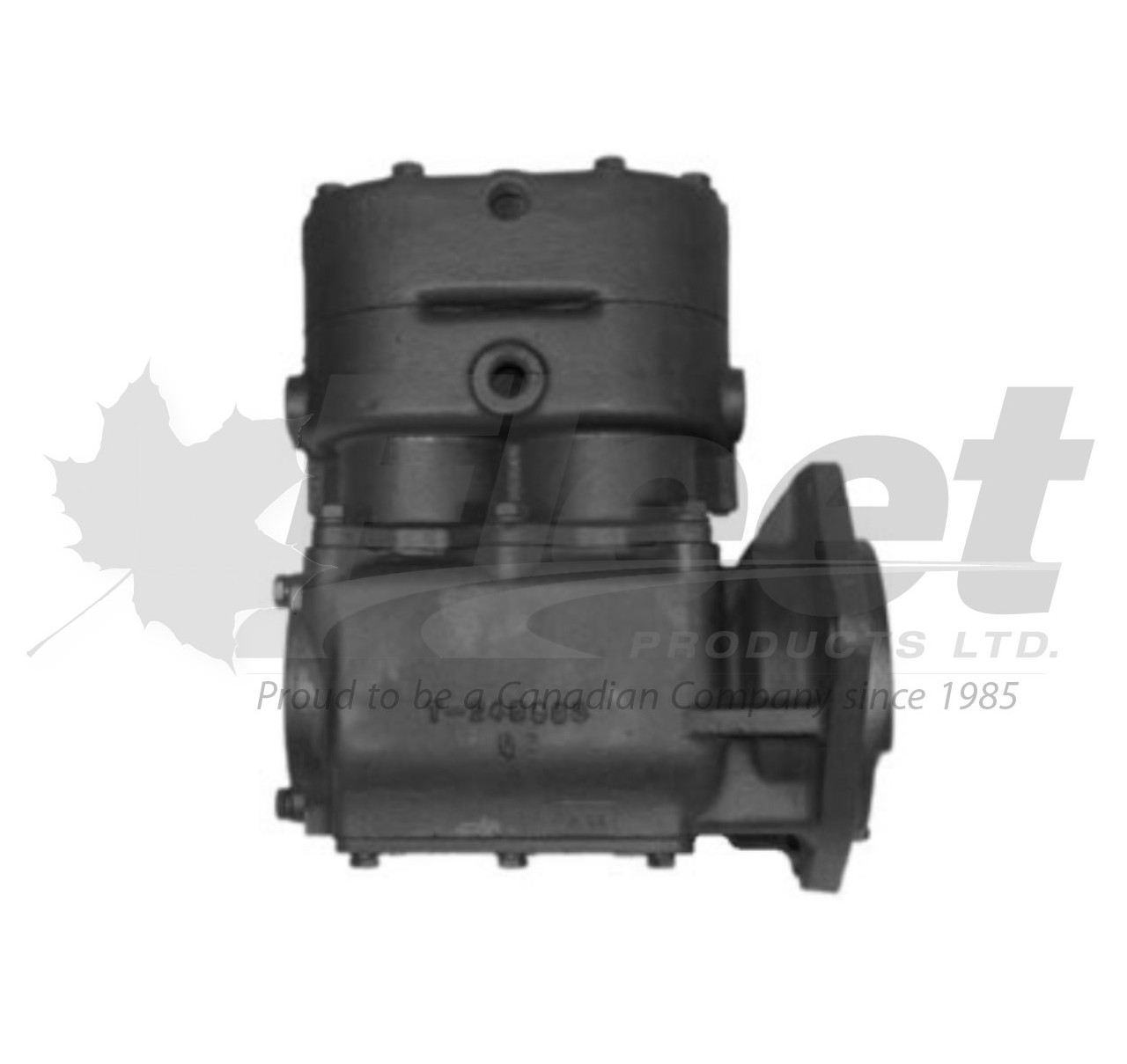

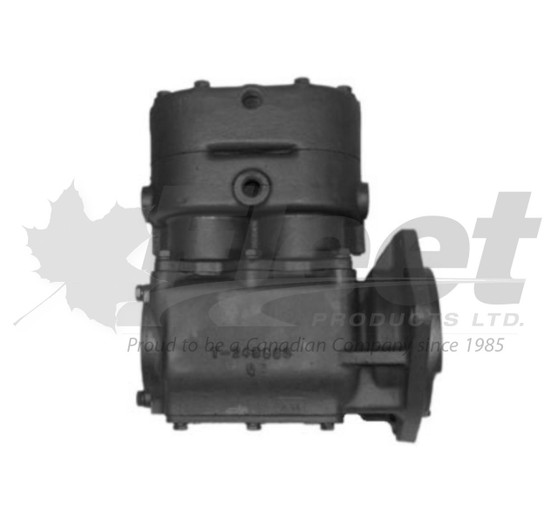

284790X - TF-500 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: 284790X (Remanufactured) | OE: 2P1830, 7N7839, 284790
DESCRIPTION:
Model: TF-500 CAT Compressor
Vehicles: Caterpillar-powered heavy trucks, semi trucks, and 18 wheelers
• Cooling: Water and air cooled
• Air Inlet: Left (viewed from rear)
• Air Outlet: Top (viewed from rear)
• Discharge Type: Flange
• Mounting: Flange mount
• Drive Type: Engine-driven spline shaft
• Shaft: 22-tooth spline
• Rated Displacement: ~12–13 CFM @ 1250 RPM
• Approximate Weight: 50–53 lbs
Applications: Designed for Caterpillar engine applications requiring TF-500 flange-mount compressors. Compatible with special applications in commercial fleet and off-highway platforms where CAT part numbers 2P1830 or 7N7839 were used.
CROSS-REFERENCE(S):
284790X, 284790, 2P1830, 7N7839, TF-500, 065491, 109285, 109336, 5003648, 5005466, 5005415
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear
✔ Typical flange nut torque: 80–100 ft-lbs
✔ Ensure proper spline engagement during installation
✔ Includes installation gasket(s)
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
