284760-G | Foot Valve (E-7 Style)

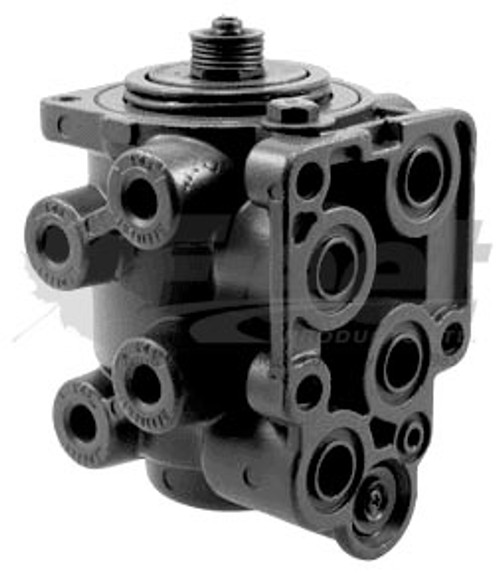

284760-G FOOT VALVE (7)

---

PART NUMBER(S):
Fleet Products: 284760-G | OE: 284760, 284760X, 284760RX | Automann: OR284760X

---

DESCRIPTION:

Model: E-7 Dual Circuit Foot Brake Valve
Vehicles: Compatible with Ford, Freightliner, International, and other heavy-duty trucks and trailers
• Valve Type: E-7 firewall-mounted foot valve with suspended pedal
• Supply Ports: 2 × 1/4" NPT (mounting side)
• Delivery Ports: 2 × O-ring sealed flange (mounting side)
• Exhaust: Diaphragm, 1/2"
• Mounting: Firewall-mounted, no mounting studs included
• Actuation: Foot pedal, suspended treadle type
• Function: Dual-circuit design using separate supply and delivery circuits for split air brake systems
• Secondary Mode: In primary failure, mechanical push-through actuates secondary braking
• Material: OEM-grade components, includes 10 sealing rings
• Port Summary:
  - Port A/B/C/D: No threads
  - Port E: 1/4" NPT supply
  - Port G: 1/4" NPT supply
  - Delivery: O-ring sealed flanged
• Operating Temperature: -40°F to 200°F (-40°C to 93°C)
• Weight: Approx. 2.8 lbs
• Performance: Meets FMVSS-121 safety compliance
• Unique Features: Designed for dual circuit safety; supports fail-safe braking operation via mechanical backup

Applications:
Used in dual/split air brake systems in Ford, Freightliner, and International heavy-duty vehicles. Designed for firewall-mounted installations with dual-circuit configurations that ensure system redundancy during braking failure.

---

CROSS-REFERENCE(S):

284760, 284760X, 284760RX, 283301, 286771, 284760N, 283300, 284688, 285147, 287166, 287176, 5000989, 50000988, 5015969, 30082, 75HA2A270AA, 97HA2A270AA, D0HA2A270C, D0HZ2A270AA, EDD0HA2A270C, 6944870, SA146, 401176, 8279284760, 034040, EBN284760N, R955284760, R955284760N, R955284760X, TDAR955284760, AV284760, OR284760X, RB-284760, ZZ284760X, BXW284760, 282410, BEN-284760, BEN-284760N, BW283301, BW284688, BW286771, BX283301, BX284688, BX284760RX, BX286771, FC284760, BW284760, BW284760N, BAN284760, BX284760, NSSA146, ZAC284760, BA146GRP, 5705, 57050, EM57050, LFV-5705, 284760P, 14572, TV284760, 34040, 3918733, 9618801010, 282410, 283300, 285147, 5000989, 5015969, AV284760, BXW284760, CIRCUIT, DUAL, E-7, E-BN284760X, OR284760X, RB-284760, ZZ284760X

A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.

---

IMPORTANT INSTALLATION NOTES:
✔ Install on firewall with secure treadle connection to ensure full mechanical actuation
✔ Ensure supply and delivery ports are connected per split system design to maintain circuit separation
✔ O-ring sealing surfaces must be clean and unscored; replace sealing rings during install
✔ Exhaust port must remain unobstructed to allow proper diaphragm function
✔ Treadle and mounting plate not furnished—verify compatibility before install

---
