Description

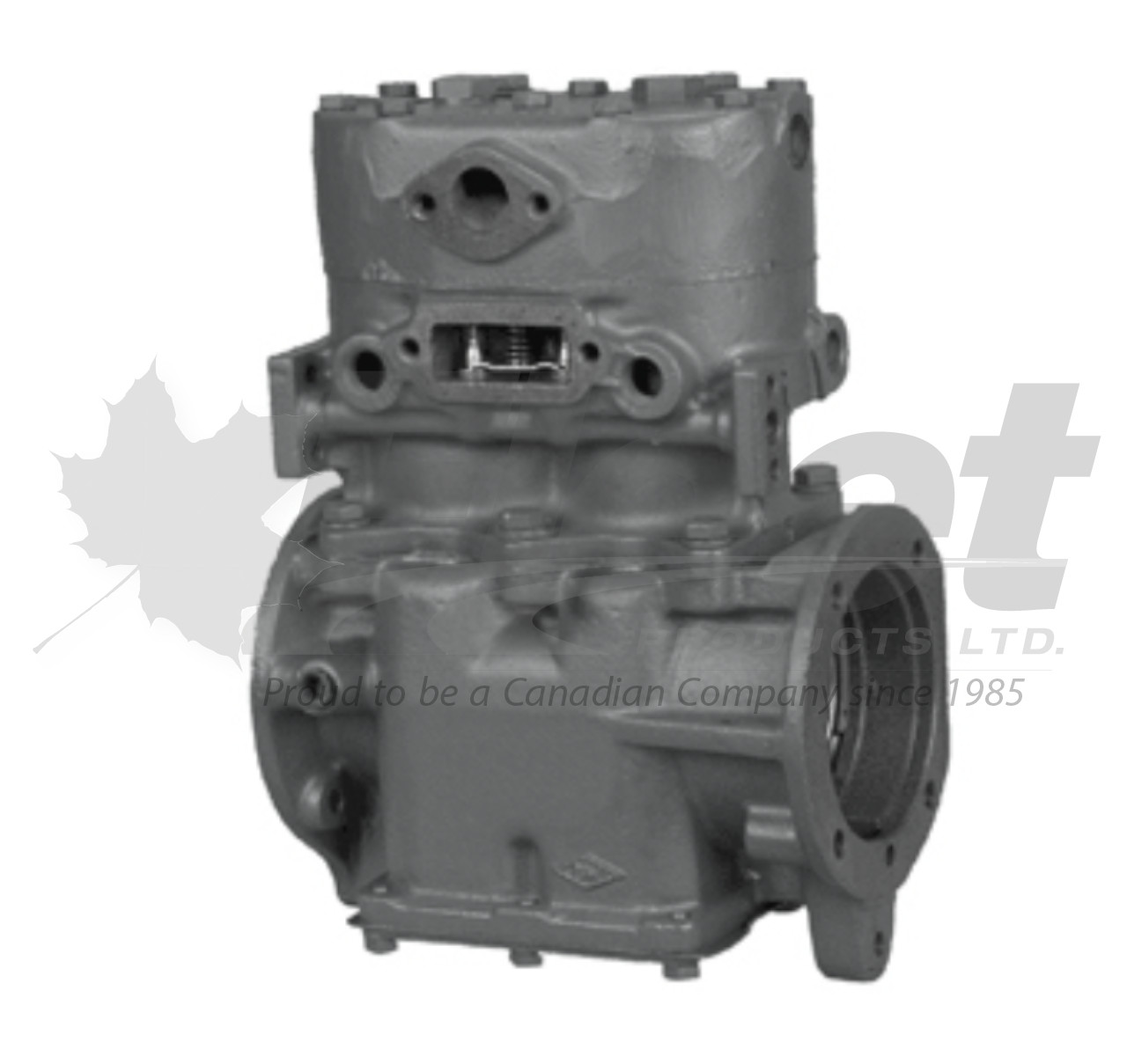

TF-500 CUMMINS COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 284699X (Reman) | OE: 284699, 280622X, 280622, 284699, 284909, 284933, 285478
DESCRIPTION:
Model: TF-500 Cummins (Standard Case)
Vehicles: Cummins Engines, Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water
• Air Inlet: Left
• Air Outlet: Left
• Mounting: Flange Mount, Engine Drive
• Discharge Type: Flange
• Cylinders: 2
• Bore: 2.5 in
• Stroke: 1.6875 in
• Displ @1250 RPM: 12 CFM
• Max RPM: 3000 WC / 2400 AC
• Coolant Flow: 2.5 gpm
• Air Flow Req: 250 CFM
• HP @1250: 2.3 HP
• Max Inlet Temp: 250°F
• Max Discharge Temp: 400°F
• Unload Pressure: 60 PSI
• Oil Press Idle: 5 PSI
• Oil Press Max: 15 PSI
• Oil Cap: 0.53 qt
• Discharge Line: 5/8 in OD
• Coolant Line: 1/2 in OD
• Oil Supply: 1/4 in OD
• Oil Return: 5/8 in OD
• Air Inlet: 5/8 in ID
Applications:
The TF-500 Cummins Compressor (284699X) is designed for use with Cummins engines, providing air pressure for air brake systems in heavy-duty trucks, semi-trucks, 18-wheelers, and commercial vehicles. This water-cooled compressor features a flange mount, engine drive, and is built to OEM standards to ensure optimal performance in demanding applications. EL13040X Compressors may also be used for this application.
CROSS-REFERENCE(S):
284699X, 284699, 280622X, 280622, 280369X, 280369, CC289342, BAR289342, HVG289342, 104356, 282013, 284924, EL16160, TF500
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear.
✔ Includes installation gaskets as per manufacturer specifications.
✔ Core return required for remanufactured units.
✔ Built to OEM standards: Thoroughly cleaned, inspected, and tested for durability and reliability.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
