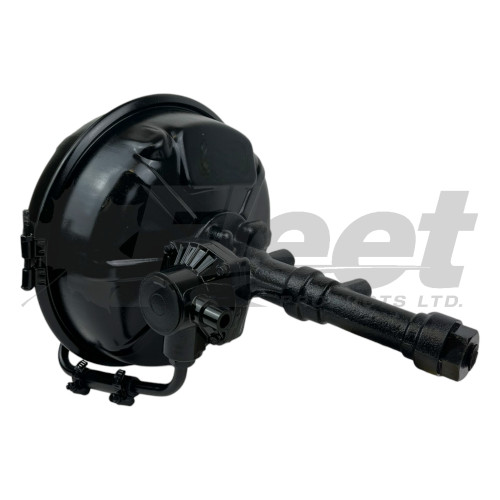

2512076X - HYDROVAC BRAKE BOOSTER (IHC APPLICATION, BENDIX FOURTH SERIES)
PART NUMBER(S):
Fleet Products: 2512076, 2512076X, 2513171 | OE: 2502982, 2504052, 277082C92, 2514917, 51-8002, 51-8054, 2512076 | International: 277082C93, 1669493C91, 2514917, R2514917
DESCRIPTION:
Model: IHC/International Medium & Heavy-Duty
Vehicles: IHC trucks (frame-mount retrofit and service units)
• Diameter: 12-3/4"
• Overall Length: 17-1/8" to 17-5/8"
• Input Port: 1/2" Grommet Style
• Output Port: 1/2"-20 Copper Gasket
• Vacuum Supply: 1/2" NPT
• Air Cleaner Port: 3/4"
• End Cap: G
• Mount Type: Frame Mount (no bracket)
• Master Cylinder: 1-1/2" bore (integral)
• Diaphragm Type: Single
• Remanufactured to OEM standard
Applications:
Designed for International Harvester (IHC) trucks, this fourth-series Bendix Hydrovac unit provides durable, vacuum-assisted hydraulic brake boost. Ideal for service replacements in legacy fleets or retrofits, it features OEM-matching ports, a single-diaphragm configuration, and frame-mount design without bracket.
CROSS-REFERENCE(S):
2512076, 2512076X, 2513171, 2502982, 2504052, 2504055, 277082C92, RV2512076X, ZZRV2512076X, 2502896, 3208510, 5396-RV2512076X, 5461808, 767653032160, HDX RV2512076X, J3208510, J4487324, MBIRV2512076X, MIDRV2512076X, BEP2512076X, BEP2512076X-C1, E-BN2512076X
A cross-reference listing means that this part should be a suitable replacement for the part numbers listed. Please check the description to be sure it fits your application.
IMPORTANT INSTALLATION NOTES:
✔ Reuse original bracket and hardware; unit ships without bracket
✔ Verify all ports and thread sizes match existing system before install
✔ Bleed brake system per OEM procedure; do not run engine during bleeding
✔ Ensure vacuum system supplies minimum 14 in. Hg at booster inlet
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
