Description

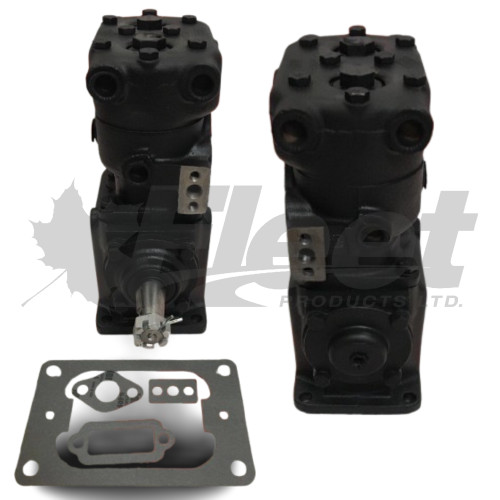

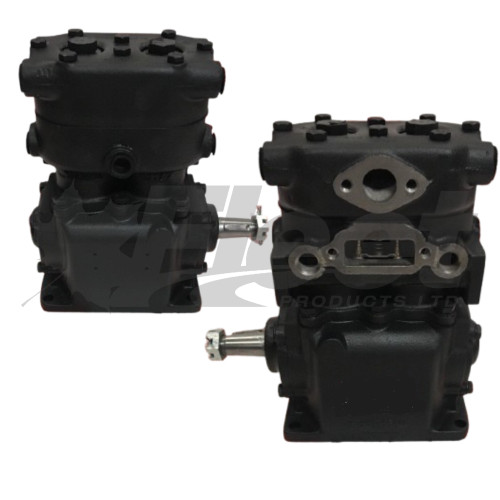

TF-400 PULLEY DRIVE COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 227402X (Reman) | OE: 226562, 226705, 226727, 226755, 226893, 226948, 227047, 227402, 227548, 227551, 227739, 228137, 228991, 229056, 229092, 229093, 229094, 229159, 229183, 229460, 229670, 275391, 275751, 275784, 276384, 276550, 277803, 278556, 279319, 279512, 279863, 281156, 281592, 281715, 282127, 284283, 287132, 227402TP, 226722, 279614
DESCRIPTION:
Model: TF-400 Pulley Drive
Vehicles: Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water
• Air Inlet: Left
• Air Outlet: Left
• Mounting: 4-Hole Base, Pulley Drive
• Discharge Type: Flange
• Cylinders: 2
• Bore: 2.0625 in
• Stroke: 1.5 in
• Displ @1250 RPM: 7.25 CFM
• Max RPM: 3000 WC / 2400 AC
• Coolant Flow: 2.5 gpm
• Air Flow Req: 250 CFM
• HP @1250: 1.2 HP
• Max Inlet Temp: 250°F
• Max Discharge Temp: 400°F
• Unload Pressure: 60 PSI
• Oil Press Idle: 5 PSI
• Oil Press Max: 15 PSI
• Oil Cap: 0.53 qt
• Discharge Line: 1/2 in OD
• Coolant Line: 3/8 in OD
• Oil Supply: 1/4 in OD
• Oil Return: 1/2 in OD
• Air Inlet: 5/8 in ID
Applications:
The TF-400 Pulley Drive Compressor (227402X) is designed for use in heavy-duty air brake systems in trucks, semi-trucks, 18-wheelers, and commercial vehicles. This compressor features a 4-hole base, non-oiler design, and water cooling for optimal performance and reliability. It delivers air for braking systems while ensuring long-lasting operation in demanding fleet environments.
CROSS-REFERENCE(S):
227402TP, TF-400, 226722, 279614
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation: Always viewed from rear.
✔ Non-Oiler: This model does not include an oiler.
✔ Remanufactured: Core return required.
✔ Built to OEM standards: Cleaned, inspected, and tested for durability and reliability.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
