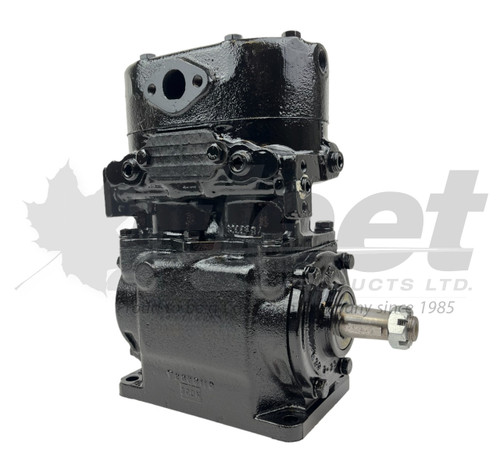

TF-500 PULLEY DRIVE COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 227320X (Reman) | OE: 227320, IHC SERVICE: 97193R91, 143018R91, 149628R91, 179022R91, 295435C91, 398568C91, 398568C92, 861448R91, 861448R92, 861448R93, 990007C91, 990178C91, 990210C91, 997065R91
DESCRIPTION:
Model: TF-500 Pulley Drive
Vehicles: Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water
• Air Inlet: Left
• Air Outlet: Left
• Mounting: 4-Hole Base, Pulley Drive
• Discharge Type: Flange
• Cylinders: 2
• Bore: 2.5 in
• Stroke: 1.6875 in
• Displ @1250 RPM: 12 CFM
• Max RPM: 3000 WC / 2400 AC
• Coolant Flow: 2.5 gpm
• Air Flow Req: 250 CFM
• HP @1250: 2.3 HP
• Max Inlet Temp: 250°F
• Max Discharge Temp: 400°F
• Unload Pressure: 60 PSI
• Oil Press Idle: 5 PSI
• Oil Press Max: 15 PSI
• Oil Cap: 0.53 qt
• Discharge Line: 5/8 in OD
• Coolant Line: 1/2 in OD
• Oil Supply: 1/4 in OD
• Oil Return: 5/8 in OD
• Air Inlet: 5/8 in ID
Applications:
The TF-500 Pulley Drive Compressor (227320X) is designed for heavy-duty air brake systems in trucks and commercial vehicles. It features a water-cooled design, left air inlet and outlet, and a flange discharge type. Ideal for use in fleet applications, this compressor is engineered to provide reliable, long-lasting performance. EL13020X Compressors may also be used for this application.
CROSS-REFERENCE(S):
227320TP, BX227320X, 745227320, 04625227320X, EL13020, BEN227320X, 226279, 226280, 226286, 226339, 226366, 226437, 226445, 226523, 226527, 226528, 226529, 226664, 226685, 226686, 226766, 226767, 226816, 227042, 227156, 227274, 227321, 227322, 227450, 227487, 227655, 227676, 227724, 228304, 228306, 228308, 228310, 228311, 228312, 228313, 228314, 228315, 228316, 228318, 228319, 228321, 228322, 228323, 228324, 228329, 228426, 228486, 228671, 228775, 228826, 228848, 228956, 228971, 228977, 229032, 229058, 229439, 229543, 229655, 229776, 229843, 275049, 275111, 275349, 275415, 275991, 276089, 276090, 276148, 276337, 276361, 276378, 276379, 276517, 276786, 276833, 276913, 276969, 277058, 277249, 277250, 277255, 277334, 277400, 277622, 277624, 277673, 277675, 277693, 277737, 277802, 278429, 278558, 278559, 278806, 279292, 279314, 279407, 279717, 279954, 279992, 280098, 280644, 280706, 280811, 280828, 280831, 280967, 281059, 281788, 282005, 282138, 282139, 282140, 282141, 282348, 282564, 282711, 282713, 283592, 284440, 284797, 285870, 286442, 286481
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Use only with 4-Hole Base and Pulley Drive mounting.
✔ Ensure proper installation of base oil option as specified.
✔ Always confirm port orientation from rear before installation.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
