109398X – FD-L DETROIT FAN CLUTCH
PART NUMBER(S):
Fleet Products: 109398X (Remanufactured) | OE: 109398, 109400, 109399
DESCRIPTION:

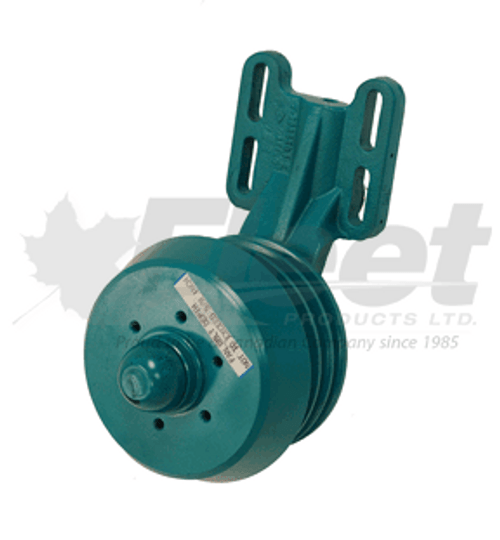

Model: FD-L (Single-Speed) Remanufactured Fan Clutch
Vehicles: Detroit Diesel, Ford, Freightliner, International (FD-L platform)
• Fan Pilot Diameter: 2.56"

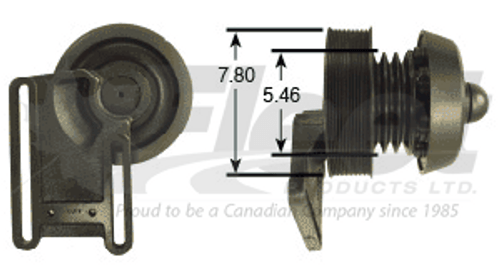

• Back Pulley Diameter: 5.46", 7.80"
• Drive Type: Pneumatic on/off, spring engaged
• Friction Material: Kevlar-impregnated for longer life
• Bearings: Angular contact bearings for reliability
• Operation: Heat-activated for efficient cooling control
• Construction: OEM-grade rebuild, tested and inspected
• Core Charge: Applies – return required to avoid fees
Applications:
Ideal for Class 6–8 trucks operating under extreme loads and temperatures. Commonly used in long-haul and vocational fleets powered by Detroit Diesel, Cummins, or Caterpillar engines. Replaces Horton-style FD-L units with enhanced performance and longevity.
CROSS-REFERENCE(S):
109398, 109398RX, 109398X, 109399, 109399RX, 109399X, 109400, 109400RX, 109400X, 3443-109400X, 65525, ABP N20 109400X, ABPN20109400X, FLT109400X, KMI109400X, KM N20 109400X, KMN20109400XA cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Locknut torque must be 90 ft-lbs (101 N·m) – follow FD-L install guidelines
✔ Ensure lock washer tab aligns with nut slot and install cotter pin and dust cap
✔ Replace pulley hub bearings at time of install to preserve warranty
✔ Confirm pilot diameter and bolt circle fit your mounting flange
✔ Validate system pneumatic actuation before final installation
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
