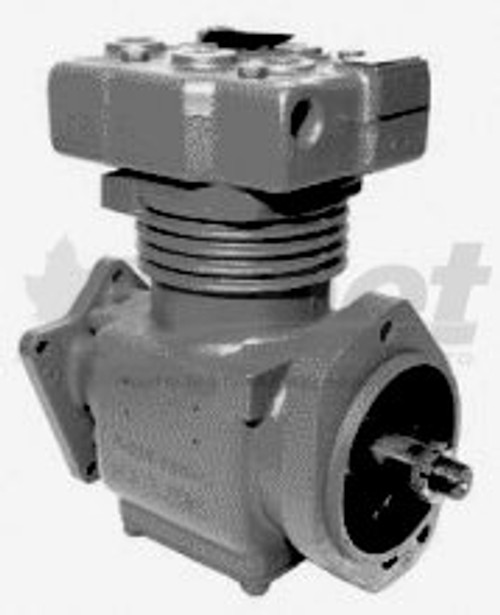

109219X – BX-2150 CAT COMPRESSOR (DT466 / CAT 3306)
PART NUMBER(S):
Fleet Products: 109219X (Remanufactured) | OE: 109219, 109201, 065481
DESCRIPTION:
Model: BX-2150 CAT Compressor
Vehicles: CAT 3306, International DT466
• Configuration: Single Cylinder, Single Stage
• CFM: 9.5 @ 1,250 RPM
• Bore: 3-3/8"
• Stroke: 1.468"
• Cooling: Water and Air Cooled
• Drive: Engine Driven, Tapered Shaft, Thru-Drive
• Mounting Type: Flange Mount
• Air Inlet: Left
• Air Outlet: Top
• Discharge Type: Threaded
• Discharge Port: 1/2" NPT (Top & Side)
• Water Ports: (3) x 1/2" NPT
• Governor Ports: (2) x 1/8" NPT
• Lubrication: Engine Pressurized Oil
• Head: Rotatable in 90° intervals
• Weight: Approx. 44 lbs
Applications:
Designed for use on Caterpillar 3306 and International DT466 engines. Commonly installed on Class 8 trucks and commercial chassis requiring a 9.5 CFM single-cylinder compressor for air brake systems. BX-2150 platform allows for versatile mounting and integration with CAT engine architecture.
CROSS-REFERENCE(S):
BX-2150, DT466, 109201, 065481, 109219, 107526, 104041X, 107526X, 104102X, 108261X, 104103, KNT86230, 108854, 104013, 501194, JN9714, 060-108848N, 108848K, 7072294, 1691166C92, S-14024, 7C0569, 7E9918, MBW104013, 9332100342, 9332100607, 15619290, 362590, 745108848, N9714A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Use all new installation gaskets and seals
✔ Cylinder head cap screws torque: 175–225 lb-in
✔ Discharge valve seat torque: 70–90 lb-ft
✔ 1/8" P.T. plugs torque: 85–105 lb-in
✔ 1/2" P.T. plugs torque: 200–270 lb-in
✔ Thru-drive torque limit: Max 65 lb-ft
✔ Crankshaft nut torque limit: Do not exceed 120 lb-ft
✔ Spline coupling cap screw torque: 175–225 lb-in
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
