Product Description
107901X - FD-L CAT FAN CLUTCH
PART NUMBER(S):
Fleet Products: 107901X (Remanufactured) | OE: 107901, 107901RX, 107900, F3HZ8A627F Ford
DESCRIPTION:
Model: FD-L CAT Fan Clutch
Vehicles: Ford, Freightliner, International – Class 6–8 Diesel Trucks
• Fan Pilot Diameter: 2.56 inches

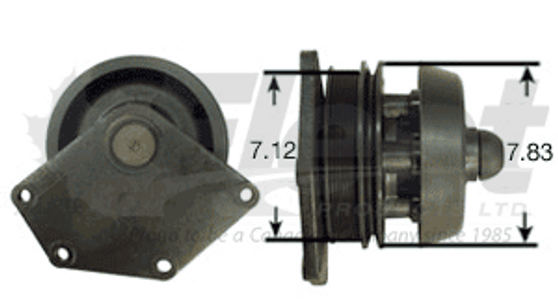

• Back Pulley Diameters: 7.12", 7.83"
• Drive Type: Spring engaged, pneumatic on/off
• Friction Material: Kevlar®-impregnated for durability
• Bearings: Upgraded angular contact bearings
• Performance: Optimized cooling, reduced engine load
• Weight: Approx. 51 lbs
Applications: Designed for heavy-duty diesel-powered trucks and buses using Bendix FD-L platform. Engineered to OEM spec for demanding cooling cycles in vocational and long-haul service.
CROSS-REFERENCE(S):
107900, 107900RX, 107900X, 107900rx, 107900x, 107901, 107901RX, 107901X, 107901rx, 107901x, 3443-107901GTN, ABP N20 107901GTN, ABPN20107901GTN, BX107901, BX107901X, EOBX107901X, F3HZ8A627F, FLT107901GTN, KM N20 107901GTN, KMI107901GTN, KMN20107901GTN
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Torque locknut per FD-L OEM service specification
✔ Align and lock tab washer before securing assembly
✔ Use cotter pin and dust cap to complete install
✔ Inspect belt tension and fan spacer per engine manufacturer’s guidelines
✔ Confirm bolt circle and pilot dimensions before install
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, call 1-877-243-0442 or email sales@fleet-products.com
