Description

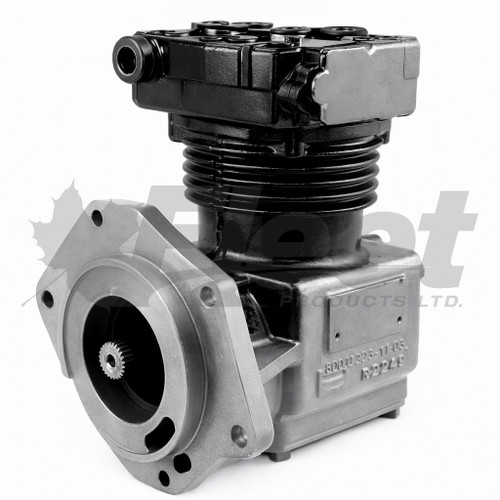

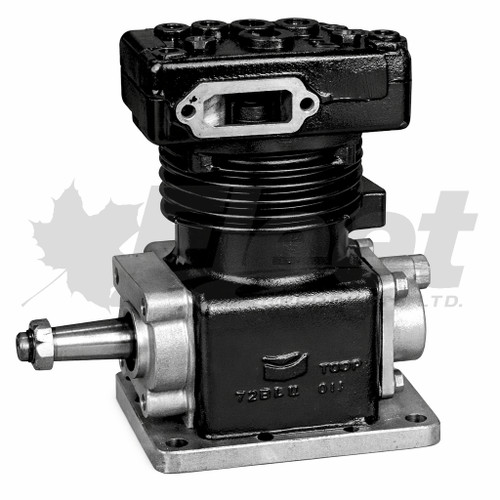

107526X - BX-2150 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: 107526X (Remanufactured) | OE: 106879, 106880, 107526, 107550, 107738, 107913, 107946, 108727, 109113, 109114, 65207 CAT: 7E2303, 7E3879, 9Y8061
DESCRIPTION:
Model: BX-2150 CAT
Vehicles: Caterpillar 3116 engine platforms
• Air Inlet: Left
• Air Outlet: Top
• Cooling: Water-cooled head, air-cooled crankcase
• Mounting: Flange mount
• Drive Type: Engine drive, pulley-driven
• Shaft Type: Tapered shaft, thru-drive
• Cylinders: 1
• Weight: 33 lb
• Bore x Stroke: 3.375 in x 1.468 in
• Displ @1250 RPM: 9.5 CFM
• Max RPM: 3000 (2200 turbo)
• HP @1250 RPM /120 PSIG: 1.7 HP
• Coolant Flow (water-cooled): 2.5 gpm @max / 0.5 gpm @min
• Max Boost (turbo): 15 PSIG
• Max Temps: 250°F inlet / 400°F discharge
• Unload Pressure: 60 PSIG NA / 85 PSIG turbo
• Oil Pressure: 5 PSIG idle / 15 PSIG running
• Discharge Line: 1/2 in ID
• Coolant Line: 3/8 in ID
• Oil Supply: 3/16 in ID
• Oil Return: 1/2 in ID
• Air Inlet: 5/8 in ID
• Unloader Line: 3/16 in ID
Applications:
Designed for Caterpillar 3116-powered trucks, semis, and vocational vehicles. Provides reliable compressed air for air brake and auxiliary systems in CAT engine configurations.
CROSS-REFERENCE(S):
107526, 107526, 109201, 0R3403, 4P5433, 65207, 7E2303, 7E3879, 9Y8061, 106879, 106880, 107526, 107550, 107738, 107913, 107946, 108727, 109113, 109114, 65207, 109201, 065481, 109219, 0R3403, 7E3879, 7E3871, 4P5433
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear
✔ Cylinder head bolt torque: 175–225 in-lbs
✔ Includes installation gaskets for flange mount
✔ Ensure pulley and shaft alignment with CAT engine setup
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
