Product Description

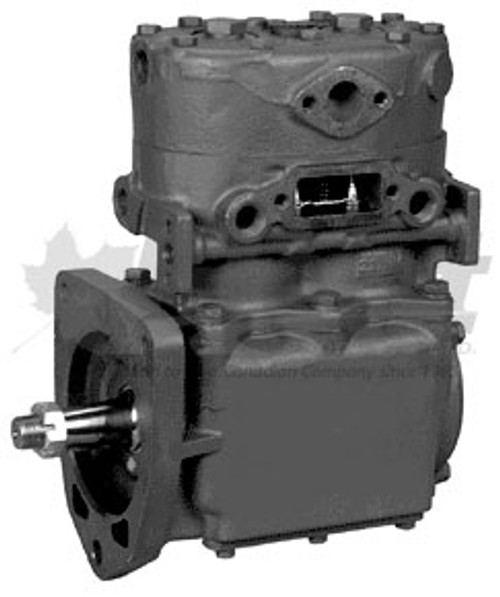

106913X - TF-700 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: 106913X (Remanufactured) | OE: 106913, 289336, TF-700
DESCRIPTION:
Model: TF-700 CAT Compressor
Vehicles: Caterpillar Engine Platforms
• Cooling: Water Cooled
• Air Inlet: Left
• Air Outlet: Left or Top (user selectable)
• Mounting: Flange Mount
• Drive Type: Gear Driven
• Cylinders: 2
• CFM: Approx. 16.5 CFM @ 1250 RPM
• Weight: Approx. 46–48 lbs
Applications:
Designed for CAT-powered heavy-duty trucks and 18-wheelers. Supplies pressurized air for braking and auxiliary air systems with selectable outlet positioning.
CROSS-REFERENCE(S):
106913, 106913X, 175289336X, 745X-289336, HVG289336X, TF-700
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear
✔ Select top or side discharge during installation
✔ Use OEM torque specs—flange nut torque typically 80–100 ft-lbs
✔ Installation gaskets are included with unit
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
