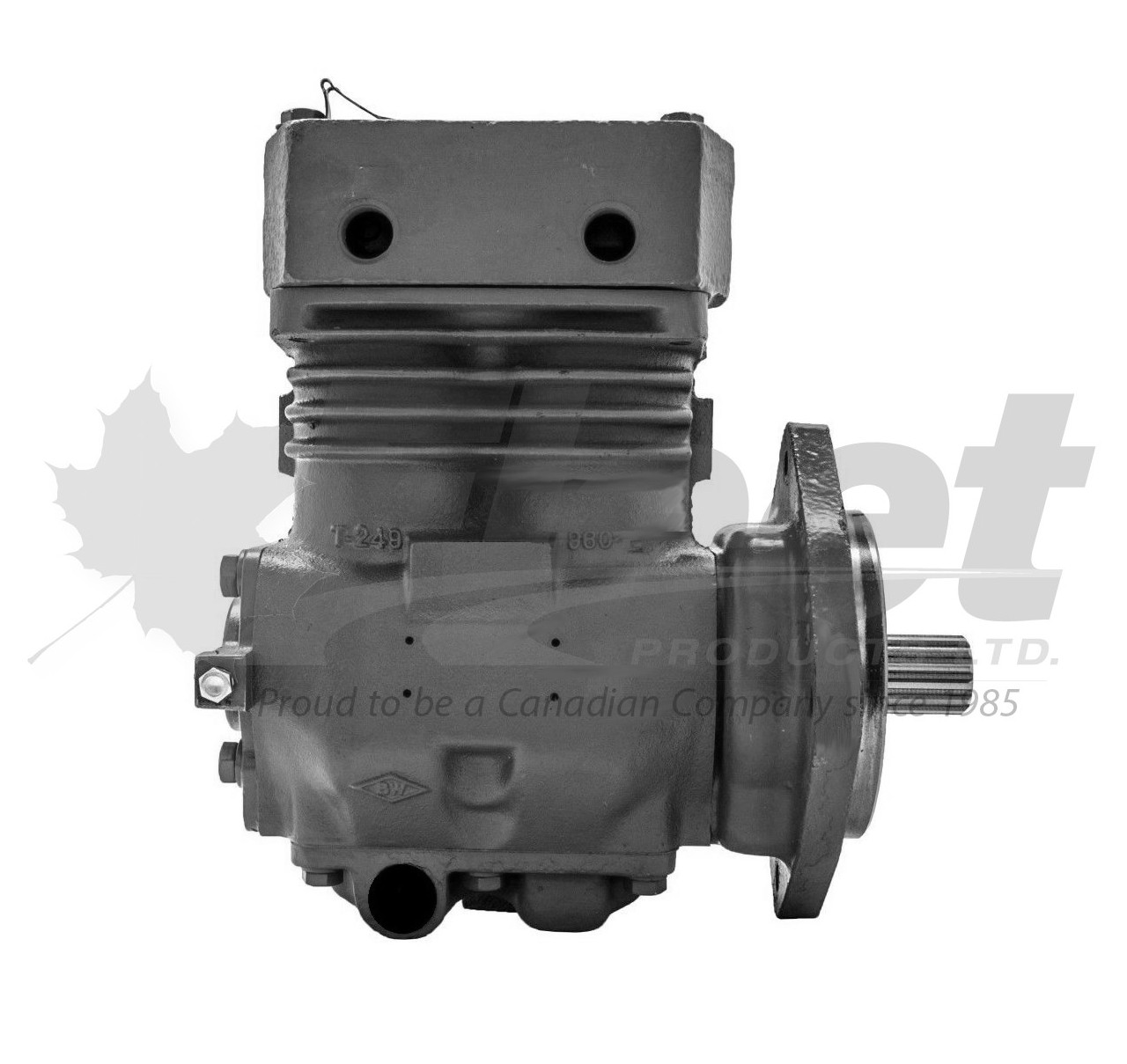

TF-501 CAT COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 102742X (Remanufactured) | OE: 286584, 7E6807, 286594, TF-501, 175286594X, BEN286594X, BW2286594X, 2W0582
DESCRIPTION:
Model: TF-501 CAT Compressor
Vehicles: Caterpillar 3512 Engines, Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water/Air
• Air Inlet: Left
• Air Outlet: Top
• Mounting: Flange
• Shaft: Spline
• Discharge Type: Top/Flange
• Oil Feed: End Cap
• Oil Drain: Flange
• Drive: Gear Drive
• Turbochargeable
• Number of Cylinders: 2
• Stroke: 38.1 mm (1.5 in)
• Bore: 63.5 mm (2.5 in)
• Displacement: 12 CFM @ 1250 RPM
• Stage: Single
• Weight: Approx. 40.37 lbs (18.31 kg)
Applications:
The TF-501 CAT Compressor is designed to pressurize air for the actuation of air brakes in heavy-duty vehicles, including Caterpillar 3512 engines. This unit features a flange mount with a gear-driven mechanism and a top/flange discharge type. The compressor is ideal for use in large trucks, semi trucks, and 18 wheelers. With a robust construction, it is built for high efficiency in a variety of heavy-duty applications.
Petroleum Products: 3512B 3512C TH48-E70 TH48-E80
Off-highway Truck: 776B 776C 777B 777C 784B 785 785B 789 789B 793 793B
Wheel-type Loader: 994
Engine - Industrial: 3512E 3516C 3512B 3512C C4.4 3512 SPF343 SPF343C SPS343 SPT343
Excavator: 5130 5230
Telehandler: C4.4
CROSS-REFERENCE(S):
286584, 7E6807, 286594, TF-501, 175286594X, BEN286594X, BW2286594X, 107296X, 286550X, 286565X, 286528X, 286594X, 286555X, 286552X, 286586X, 286618X, E-BN286586X, 286591X, 2W0582, 103274X, 286552X, TU-FLO 501, 5892 series, 0R2902, BEP103274X, MERR955103274X, 0102742, 0102743, 0102764, 0108208, 0R-2895, 0R2895, 102742, 102743, 102764, 102764X, 108208, 2W-0582, 2W0582, 700185AT
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Includes installation gaskets (103274X, 286594X).
✔ Port orientation viewed from rear (103274X, 286594X).
✔ Tapered shaft, 2–3° tilt (103274X).
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
