Description

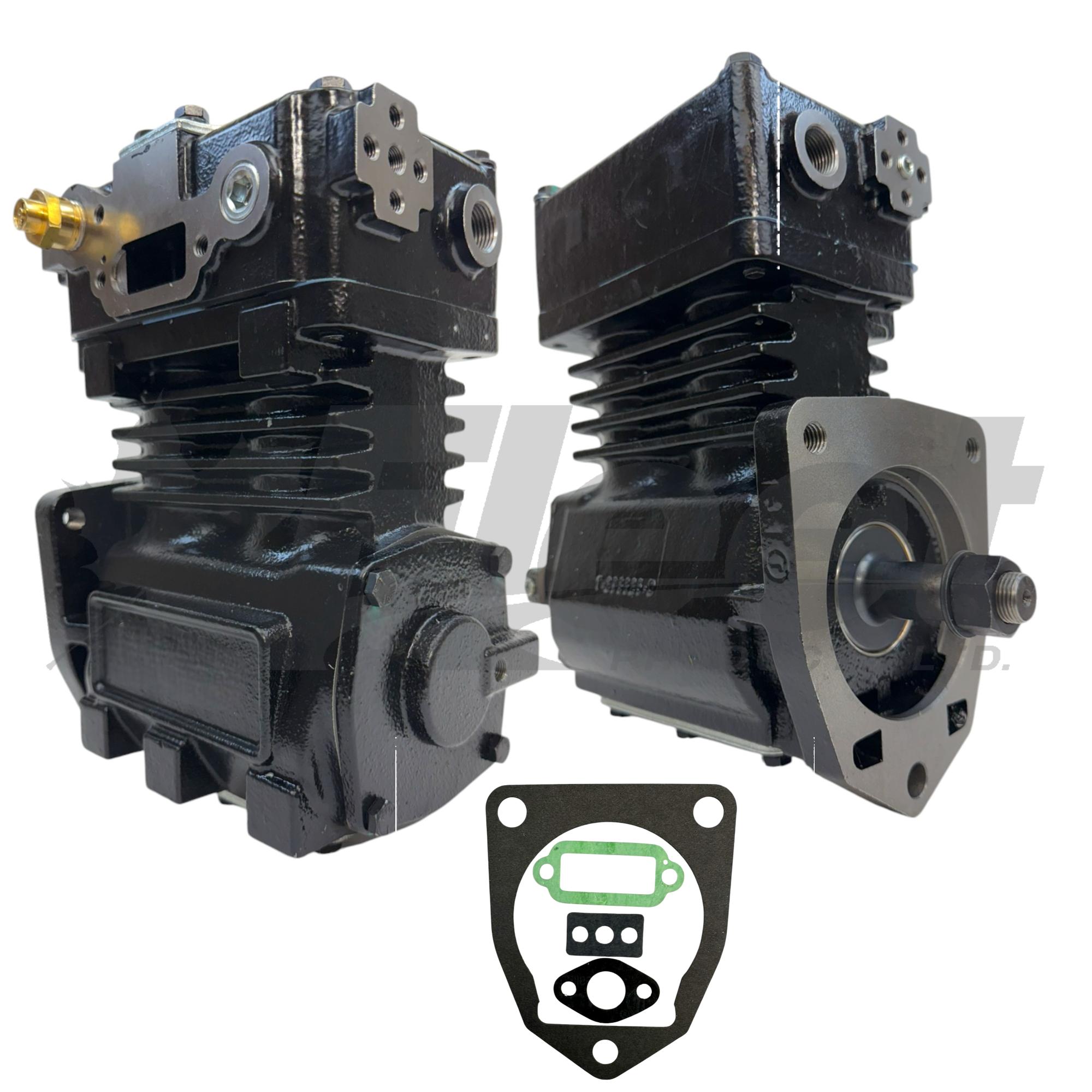

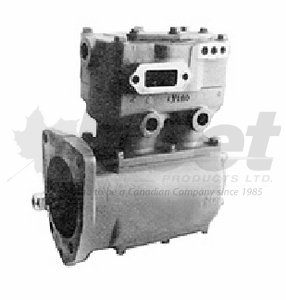

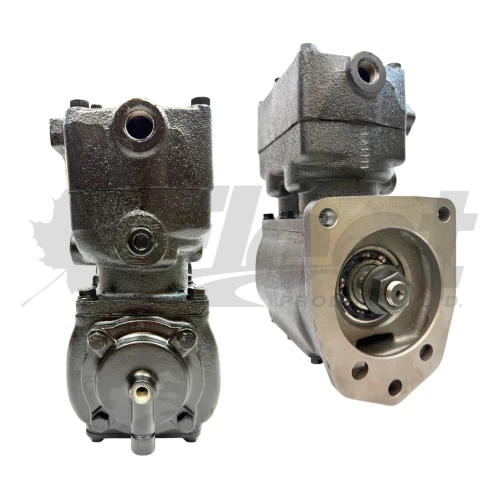

KN16200X - EL1600 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: KN16200X (Remanufactured) | OE: KN16200, EL16200, NT7220, CAT (1N2992, 1W6996, 7E7619, 9Y2240) NT7220, CAT (1N2992, 1W6996, 7E7619, 9Y2240) , 9Y2240, 0R8174
DESCRIPTION:
Model: EL1600 Caterpillar Compressor (Reman: KN16200X)
Vehicles: Caterpillar 3406B Engine
• Cooling: Water cooled
• Air Inlet Location: Not explicitly listed for this part number
• Air Outlet Location: Top/Flange Discharge Type
• Mounting Type: 3-Hole Flange Mount, Gear Driven
• Head Rotation: Right
• Block Rotation: Right
• Bore Diameter: 2-3/4 in.
• Stroke: 1.87 in.
• Rated Displacement: 16.1 CFM @ 1250 RPM
• Approximate Weight: 45 lbs
• Oil Feed: End Cap Oil Feed
• Oil Drain: Flange Oil Drain
• Substitution: High Capacity, Exact Replacement for NT7220
• Function: Air brake compressor for air brake systems
Applications:
The EL1600 Caterpillar Compressor (KN16200X) is used in Caterpillar 3406B engines within heavy trucks, semi trucks, and commercial vehicles. It is designed to pressurize air for the actuation of air brakes and features gear drive with flange mount.
CROSS-REFERENCE(S):
KN16200, EL16200, NT7220, ZZEL16200X, 104329, 1W6996, 107002, 107779, 289743, 289744, 700010034, 700013409, 1N2992, 1440750, 107508, 107508X, 107871, 109320, 7E7619, 103276, 103277, 103278, 065199, KN16200N, KNT16200, KNT16200N, KNT16200X, KTX16200C, EL16200, EL16200X, ZZEL16200X, EMDEL16200X, NT7220, NT7220D, 5396-EL16200X, 70001-3409, 767653026206, 9Y2240, EL16200XB1, HDX EL16200X, MBIEL16200X, MIDEL16200X, R955EL16200X, NT7020, 103467, 0R8174, 144-0750, OR8174, E-MDEL16200X, 70001-0034A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ External Shaft Length: 2"
✔ All port orientations are viewed from the front
✔ Tapered shaft and threaded mounting holes
✔ Includes installation gaskets
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
WHY CHOOSE FLEET PRODUCTS | KBR - HEAVY DUTY TRUCK & TRAILER PARTS?
• Canadian-owned since 1985• Trusted by fleets, mechanics, and B2B partners across North America
• Fast, Reliable Shipping Across North America
• Competitive pricing with Core Return Refunds
• Price Match Guarantee | Find a better price? We'll beat the difference by 10%!
Warranty Information
