Description

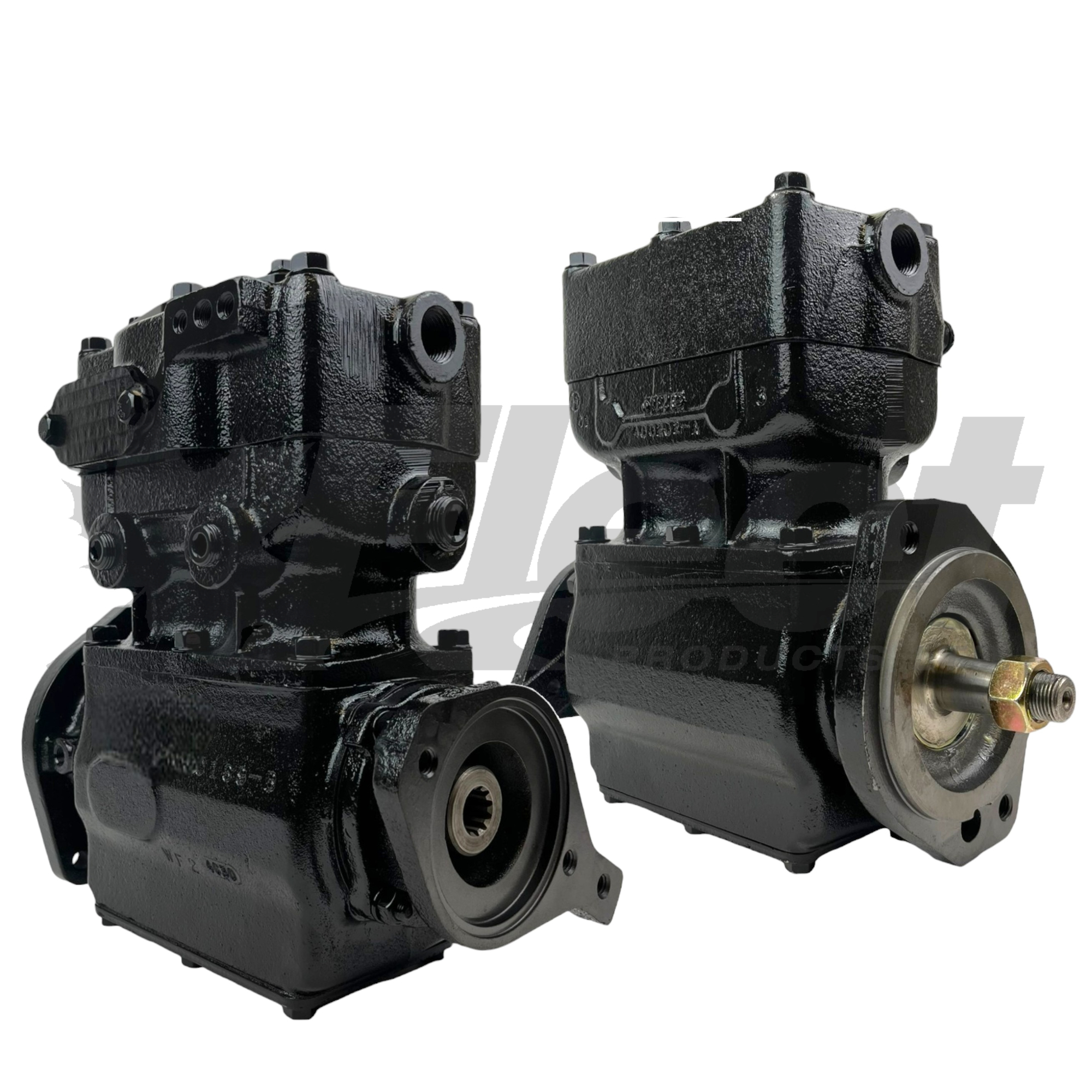

KN13280X – EL1300 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: KN13280X (Remanufactured) | Midland: KN13280, EL1300, 145-2906, NT7028C | Haldex: EL13280X, 145-2906, NT7028C, CAT (10R1453,123-6356, 144-0746, OR2779) (KN16280, KN16280X, EL16280 EL1600 Version)
DESCRIPTION:
Model: EL1300 CAT Compressor 31.5° tilt
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Mounting Type: Flange mount
• Drive Type: Gear Drive (Tapered Shaft)
• Head Rotation: Right
• Block Rotation: Right
• Cooling: Water Cooled
• Oil Feed: End Cap
• Oil Drain: 2 hole Flange
• OEM Number: NT7028C
• External Shaft Length: 2.23 in.
Bore Diameter: 2.75 in.
Stroke: 1.50 in.
Rated Displacement: 13.0 CFM @ 1250 RPM
Applications:
The KN13280X – EL1300 CAT Compressor is used in heavy-duty trucks and trailers with Caterpillar engine platforms, including the Caterpillar #145-2906. This compressor is engineered for air brake systems, providing reliable pressurized air to actuate the brakes. It is ideal for vehicles like semi-trucks, 18-wheelers, and commercial trucks.
CROSS-REFERENCE(S):
KN13280, EL13280, NT7028, KN13280N, 2-HOLE, EL13280X, KN13220X, 0288951, 1440746, 10R1453, 065273, OR2779, EL13280, EL13280X, EL13281, EL13281X, 123-6356, 144-0746, 5396-EL13280X, 767653198927, EL13280M1D, HDX EL13280X, MBIEL13280X, MIDEL13280X, NT7028, NT7028C, 109088X, NT7028D, ZZEL13280X, 1236356, NT7028C, CAT (10R1453,123-6356, 144-0746, OR2779) NT7028C, CAT (10R1453,123-6356, 144-0746, OR2779) , 10R1454, 1458523, NT17028DA cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Built to OEM standards for durability and reliability.
✔ Remanufactured and thoroughly cleaned, inspected, and tested.
✔ Core return required for remanufactured product purchase.
✔ For installation guidance, contact Fleet Products technical support at .
✔ No explicit torque specifications available, refer to vehicle’s OEM service manual for values.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
