Product Description

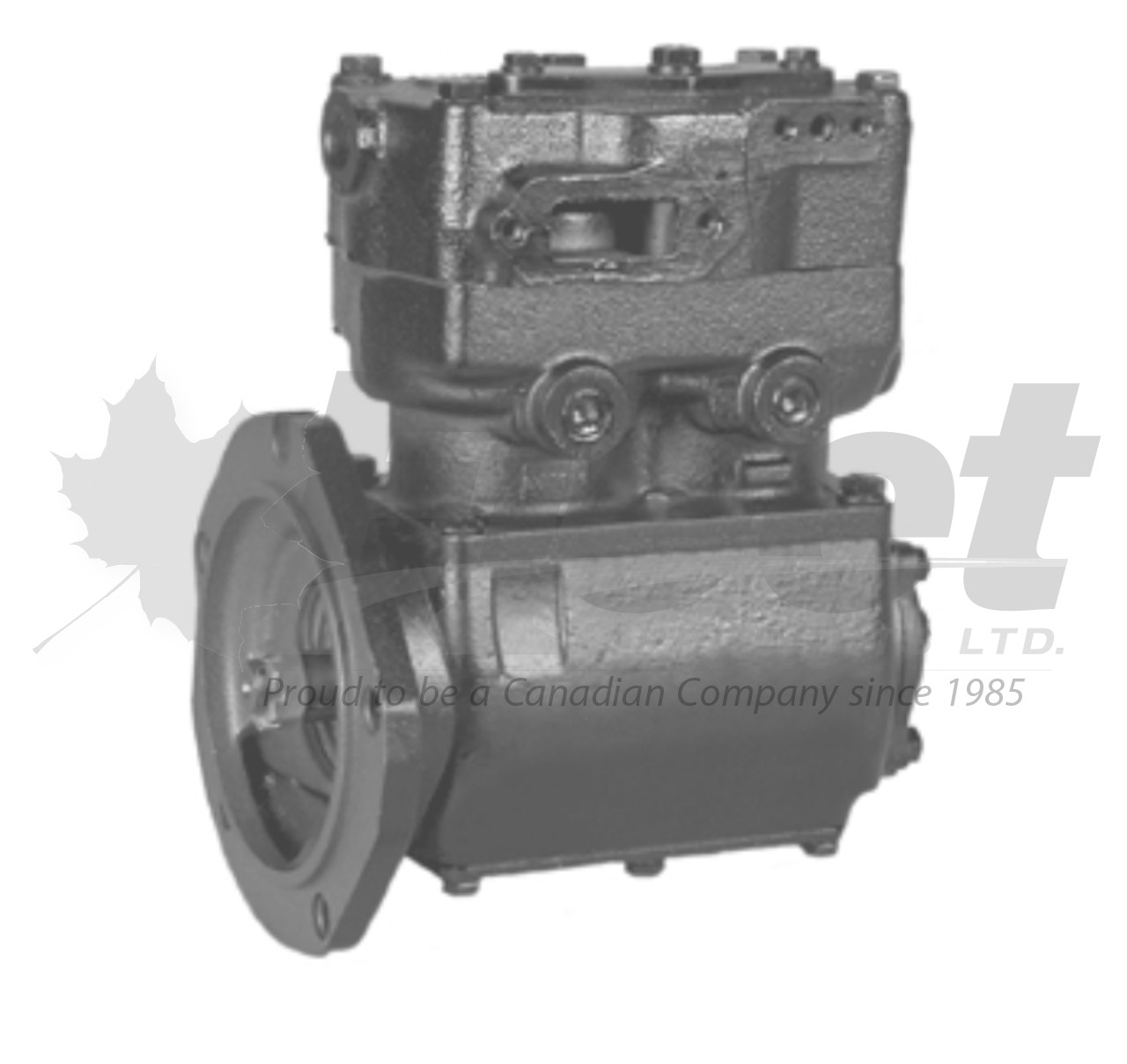

KN13160X – EL1300 DETROIT COMPRESSOR (45° TILT)
PART NUMBER(S):
Fleet Products: KN13160X (Remanufactured) | OE: EL13160X, KN13160X, N7016, DDC (5100886), Freightliner (6811300315), Volvo (27020000,27070529,49041781,700010030), Western Star (70200000)
DESCRIPTION:
Model: EL1300 Detroit Compressor – 45° Tilt
Vehicles: Detroit Diesel 45° Tilt Engines (Commercial Applications)
• Head Rotation: Left
• Block Rotation: Right
• Drive Type: Gear Driven
• Mounting: Flange Mount
• Discharge: Top, Threaded
• Cooling: Water Cooled
• Rated Displacement: 13.0 CFM @ 1250 RPM
• Shaft: Splined, 22 Tooth
• Dimensions: Overall Length Approx. 10.11 in
• Core Group: 1300 Series
Applications:
What does this compressor fit? It’s engineered for Detroit Diesel 45° tilt engine platforms used in commercial trucks. Built to pressurize air for air brake actuation with water-cooled efficiency, this remanufactured unit matches OE performance and dimensions.
CROSS-REFERENCE(S):
022732, 022814, 101266, 12020XAC, 12031X, 12041X, 12041XAC, 12041XR, 122732, 130573R91, 13060X, 13060XAC, 13060XB, 222732, 222814, 226086, 226156, 226278, 226279, 226280, 226286, 226339, 226366, 226436, 226437, 226445, 226517, 226523, 226526, 226528, 226529, 226550, 226664, 226685, 226686, 226687, 226711, 226717, 226728, 226766, 226767, 226777, 226815, 226816, 226868, 226990, 227029, 227042, 227049, 227156, 227207, 227208, 227274, 227320, 227321, 227322, 227323, 227324, 227326, 227327, 227331, 227332, 227450, 227487, 227552, 227565, 227585, 227655, 227676, 227724, 227741, 227791, 228036, 228093, 228094, 228102, 228267, 228270, 228271, 228302, 228303, 228304, 228305, 228309, 228310, 228311, 228312, 228313, 228314, 228315, 228316, 228318, 228319, 228320, 228322, 228323, 228325, 228326, 228329, 228331, 228339, 228342, 228350, 228355, 228435, 228450, 228459, 228482, 228486, 228645, 228671, 228775, 228826, 228828, 228848, 228917, 228971, 228977, 228999, 229031, 229032, 229058, 229062, 229086, 229087, 229088, 229144, 229160, 229439, 229440, 229476, 229541, 229543, 229544, 229655, 229668, 229672, 229754, 229776, 229790, 229843, 263392, 27332X, 275049, 275050, 275070, 275109, 275111, 275133, 275317, 275318, 275349, 275351, 275392, 275415, 275433, 275514, 275752, 275786, 275836, 275886, 275887, 275991, 276002, 276003, 276067, 276089, 276090, 276092, 276112, 276113, 276148, 276308, 276309, 276337, 276361, 276378, 276379, 276517, 276597, 276786, 276840, 276879, 276883, 276913, 276969, 276985, 277025, 277057, 277058, 277181, 277249, 277250, 277255, 277334, 277345, 277346, 277347, 277348, 277386, 277397, 277398, 277399, 277400, 277622, 277624, 277637, 277673, 277675, 277693, 277694, 277737, 277742, 277743, 277785, 277802, 277804, 277844, 277890, 278342, 278382, 278396, 278405, 278429, 278452, 278453, 278501, 278557, 278558, 278559, 278659, 278790, 278806, 278827, 278881, 279005, 279006, 279046, 279072, 279073, 279074, 279203, 279225, 279261, 279285, 279292, 279311, 279314, 279356, 279367, 279381, 279396, 279407, 279580, 279702, 279717, 279846, 279864, 279865, 279954, 279992, 279993, 280098, 280268, 280280, 280379, 280453, 280458, 280490, 280498, 280500, 280644, 280706, 280810, 280811, 280828, 280967, 281059, 281085, 281169, 281199, 281221, 281222, 281401, 281430, 281606, 281717, 281732, 281788, 281789, 281909, 281940, 281942, 281975, 282005, 282076, 282131, 282132, 282138, 282139, 282140, 282141, 282348, 282447, 282564, 282622, 282711, 282713, 282789, 283031, 283387, 283388, 283389, 283390, 283391, 283392, 283437, 283438, 283440, 283441, 283446, 283447, 283449, 283450, 283503, 283592, 283644, 283646, 283689, 283690, 283794, 283795, 284019, 284022, 284034, 284148, 284267, 284287, 284298, 284440, 284797, 284824, 285253, 285510, 285587, 285861, 285870, 285898, 285923, 285924, 285925, 285930, 285937, 285941, 285943, 285948, 285949, 285951, 285952, 285953, 285955, 285957, 285959, 285960, 285961, 285962, 285963, 285964, 285965, 285966, 285967, 285969, 286128, 286131, 286133, 286134, 286218, 286442, 286462, 286463, 286464, 286465, 286481, 286514, 286529, 286534, 286536, 286537, 286560, 286577, 286578, 286586, 286589, 286630, 286640, 286641, 286642, 286683, 286684, 286692, 286729, 286767, 286872, 287303, 287483, 287629, 287633, 287641, 287842, 288060, 288061, 288062, 288302, 288658, 288674, 288693, 288942, 288952, 288974, 289015, 289097, 284106, 284184, 284262, 284973, 284974, 284975, 411708C91, 285200, 285252, 285458, 285899, 285991, 285992, 285993, 285995, 286441, 286455, 286456, 286457, 286542, 286543, 286660, 287792, 287793, 289543X, 5100886, 101633, 101656, 700010002, KN13160, KN13160N, KN13160X, KNT13160, EL13160, EL13160X, ZZEL13160, ZZEL13160X, EMDEL13160X, N7016, 282010X, 5147431, 5396-EL13160X, 651748, 651750, 680388, 767653026008, EL13160XB1, HDX EL13160X, 2064860, 102004, 102090, 6811300315, E1HT2875JB, MBIEL13160X, MIDEL13160X, R955EL13160X, 2105091, 27020000, 27070529, 285992BXW, 475693C93, 49041781, 70001-0002, 700010030, 7020000, 716874, 797174, 797175, 92CX297, 282012
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Ensure compressor block rotation is right-facing and head rotation is left-facing when viewed from rear
✔ Splined 22-tooth shaft compatible with Detroit gear drive setups
✔ Confirm port orientation for top-threaded discharge compatibility
✔ Installation gaskets must be used for proper sealing and operation
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
