Product Description

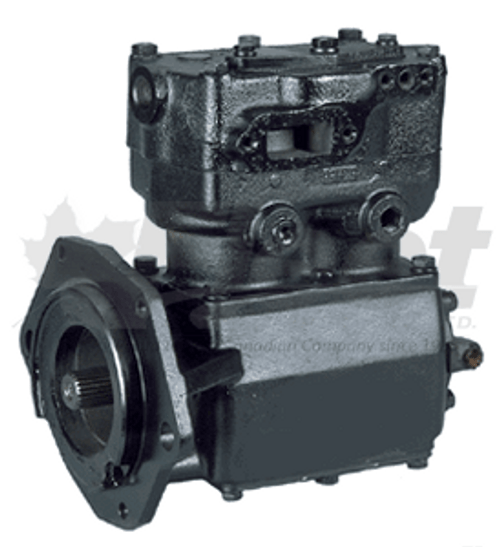

KN13151X – EL1300 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: KN13151X | OE: OR8171, 144-0744, KN13151, EL13151, EL13151XBXR, KN13151N
DESCRIPTION:
Model: EL1300 Cat Compressor
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Head Rotation: Right
• Block Rotation: Right
• Application: Caterpillar 3306 Engines
• Mounting: Flange Mount
• Drive/Operation: Gear Driven, Spline Shaft, 22 Tooth Spline
• Rated Displacement: 13 CFM @ 1250 RPM (12.9 CFM listed by some)
• Stroke Length: 1-1/2 in.
• Bore Diameter: 2-3/4 in.
• External Shaft Length: 0.72 in.
• Cooling: Water Cooled
• Discharge Type: Top/Flange Discharge
• Oil Feed: End Cap Oil Feed
• Oil Drain: Flange Oil Drain
• Turbochargeable: Yes
• OEM Part Number: NT7015B (Exact Replacement)
• Condition: Remanufactured, core return required
• Built to OEM Standards: Yes, cleaned, tested, and inspected for durability and performance
• Weight: Approx. 45 lbs
• Dimensions: Height: 11.62 in., Length: 10.93 in., Width: 8.34 in.
• Max Pressure: 35 PSI (as listed in catalog)
Applications:
Designed for use with Caterpillar 3306 Engines, this compressor is used to pressurize air for the actuation of air brakes in heavy-duty vehicles. It features a 22-tooth spline, flange mount, and is water cooled.
CROSS-REFERENCE(S):
OR8171, 144-0744, KN13151, EL13151, EL13151XBXR, KN13151N, 104042, 1W5840, 1W7145, 1W7146, 1440744, 276584X, 0R3404, 0R8171, 107533, 108216, 286584, 286594, 286815, 289043, 109250, 109251, 101519, 6N7582, 4P2975, 700010033, 700013605, 102327, 102328, 102656, 102691, 102797, 7E6807, 7N3902, 7W5863, 065475, KN13150, KN13151, KN13151N, KN13151X, KNT13151, KNT13151N, KNT13151T, KNT13151X, KNT16150, KNX13151, KTX13151C, EL13151, EL13151X, ZZEL13151, ZZEL13151X, EMDEL13151X, N7015, NT7015A, NT7015B, NT7015D, NT7215, 104042X, 5396-EL13151X, EL13151XB1, HDX EL13151X, HEL13151X, 1091317, 103819, 065050, 767653025995, MBIEL13151X, MIDEL13151X, R955EL13151X, TWDHEL13151X, 109251BXR, 286584X, 286594BXR
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Built to OEM standards, thoroughly cleaned, inspected, and tested for durability and reliability.
✔ Core return required for remanufactured units.
✔ Head rotatable for flexible installation.
✔ Designed for Caterpillar 3306 engines and other compatible applications.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
