Product Description

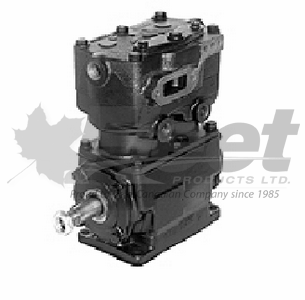

KN13020X – EL1300 PULLEY DRIVE COMPRESSOR
PART NUMBER(S):
Fleet Products: KN13020X | OE: EL13020X, EL13020, N7002A, CAT (OR8170), DDC (R23500459, R23534458, 5101403, R3500459) GM (15505544, 15527472, 15534964, 15537534, 8920986) FORD (E6HS2875AA, E7HT2875AA), Oshkosh (107446), Bluebird (853226) MACK (303GB4196R, 303GB4198R), Navistar (261187C93, 276468C93, 467876C91, 476521C91, 476525C91, 570291C91, 990421C91)
DESCRIPTION:
Model: EL1300 Pulley Drive Compressor
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Mount: 4-hole base mount, pulley-driven
• Bore Diameter: 2.75 in (70 mm)
• Stroke: 1.50 in (38 mm)
• Rated Displacement: 13.0 CFM @ 1250 RPM
• Turbo-Charge Pressure: 35 Max PSI
• Approximate Weight: 44 lbs
• Oil Feed: End cap oil feed, base oil drain
• Drive: Pulley
• Cooling: Water cooled (Turbochargeable)
• Head: Rotatable
Applications:
Used for air brake actuation in heavy-duty vehicles equipped with Cummins B-Series engines or similar engines. This compressor is designed with a 4-hole base mount and a pulley-driven setup.
CROSS-REFERENCE(S):
KN13020, EL13020, EL1300, 4-HOLE, KN13020N, KN13020T, N7002A, BXXEL13020X, WBW-EL13020X, EL13020XBXR, BARE13020X, EL13021X, EL13022X, EL13023X, EL13040X, EL13050X, EL13051X, EL13053X, EL13060X, EL13070X, EL13080X, EL13081X, EL13090X, EL13100X, EL13111X, EL13112X, EL13120RX, EL13151RX, EL13151X, EL13160X, EL13170X, EL13200X, EL13220X, EL13280X, EL13301X, EL13312X, KN13020N, KN13020T, N7002A, BXXEL13020X, WBW-EL13020X, EL13020XBXR, BARE13020X, 15505544, 15527472, 15534854, 15534964, 15537534, 15570407, 1N4215, 15674783, 1W8495, 104720, 104721, 104746, 400041401, 1440742, 303GB4198R, 23500459, 23500460, 0R8170, 108066X, 108188, 108189, 287631, 289751, 0283452, 570291C91, 6N3611, 467876C91, 700013601, 476521C91, 476521C92, 476525C91, 102640, 102988, 102989, E6HS2875AA, G15534964, E7HT2875AA, 15611159, 2046544, 286133, 286526, 286526X, 286662, 288906, OLA01620003, 8920986, 8922696, KN12020T, KN12020X, KN13020, KN13020N, KN13020T, KN13020X, KN13021, KNT13020, KNT13021, KNT13021N, KNT13021X, KNX13020A, KNX13020X, KTX13021C, EL13020, EL13020X, ZZEL13020X, R23500459, R3500459, EMDEL13020X, R8922696, N5217BA, N5217C, N5217E, N5217F, N7002A, N7002AA, N7002AB, N7002AC, N7002AD, N7002AE, N7002AF, N7002AG, N7002AH, N7002AJ, N7002C, N7002F, N7002G, N7002K, N7002L, N7002N, N7002P, N7002R, N7002T, N7002V, NT7002A, NT7002AA, NT7002AB, NT7002AM, NT7002AR, NT7002AT, NT7002AV, NT7002W, 5396-EL13020X, 767653025834, EL13020X-MD, EL13020XB1, HDX EL13020X, HEL13020X, MBIEL13020X, 23500459, 23500460, 0R8170, 102640, 104720, 104721, 1N4215, 570291C91, 1W8495, 467876C91, 8920986, 8922696, 400041401, R3500459, N7002P, 108188, 108189, 303GB4198R, 0283452, 1440742, 102988, 102989, 104746, 108066X, 6N3611, 700013601, 476521C91, 476521C92, 476525C91, N5217BA, N5217C, N5217E, N5217F, N7002A, N7002AA, N7002AB, N7002AC, N7002AD, N7002AE, N7002AF, N7002AG, N7002AH, N7002AJ, N7002C, N7002F, N7002G, N7002K, N7002L, N7002N, N7002R, N7002T, N7002V, KN13021, R8922696, KN12020T, KN12020X, KN13020, KN13020N, KN13020T, KN13020X, KNT13021X, KNT13020, KNT13021, KNT13021N, NT7002AR, KNX13020A, KNX13020X, KTX13021C, NT7002A, NT7002AA, NT7002AB, NT7002AM, NT7002AT, NT7002AV, NT7002W, G15534964, EL13020, ZZEL13020X, E6HS2875AA, 15505544, 15527472, 15534854, 15534964, 15537534, 15570407, 15674783, 287631, 289751, OLA01620003, EL13020X, EL13021X, EMDEL13020X, R23500459, E7HT2875AA, 15611159, 2046544, 286133, 286526, 286526X, 286662, 288906, 156111
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Remanufactured to OEM standards, thoroughly cleaned, inspected, and tested
✔ Core return required
✔ Head is rotatable for flexible manifold positioning
✔ Service/reman units are furnished without governors and manifolds; head rotation may be required
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
