KB799319X | Drivemaster Fan Clutch (Intl/KME/CAT C11/C13/ACERT)

KB799319X – HORTON DRIVEMASTER REMAN FAN CLUTCH (INTERNATIONAL / CATERPILLAR C11 & C13 ACERT)

PART NUMBER(S):
Fleet Products: KB799319X (Remanufactured) | OE: Horton 999319, International 2590293C91, Kit Masters 99319

DESCRIPTION:

Model: Horton DM Advantage – On/Off (Remanufactured)
Vehicles: International 8600, 9200, 9400 (2003–2006) and KME trucks with Caterpillar C11 and C13 ACERT engines
• Clutch Type: Horton Drivemaster (DM Advantage Series) – air on/off pneumatic, spring engaged
• Drive Type: 2-Speed

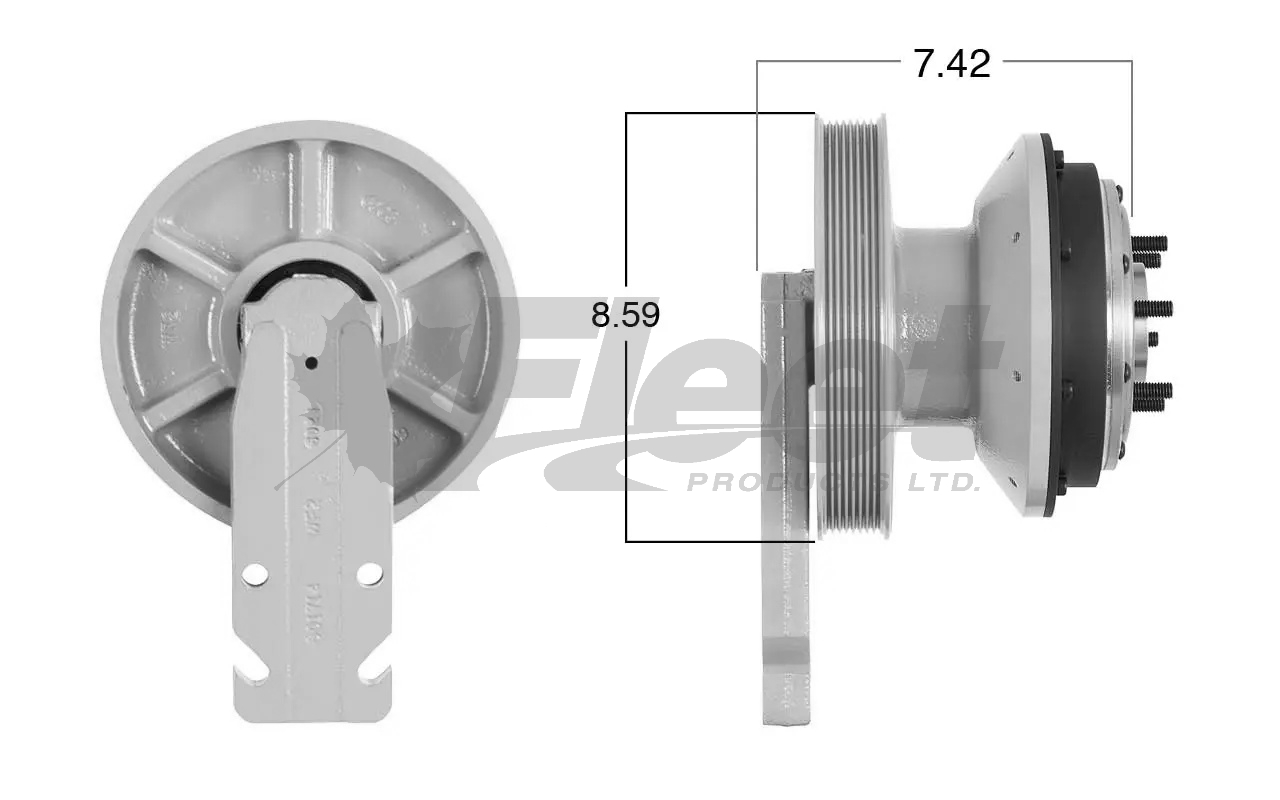

• Pulley Diameter: 8.59″ (8PK serpentine)
• Belt Groove Count: 8
• Belt Groove Location: 1.38″
• Belt Type: 8PK
• Fan Pilot Diameter: 2.56″
• Fan Blade Bolt Circle: 3.5″
• Fan Drive Bolt Pattern: 6x, 3/8-24 Thread, 0.81″ Long
• Mounting Distance: 7″ (journal bracket center to top right mounting hole)
• Overall Length: 7.42″
• Bearing Design: Dual bearing, sealed system
• Performance Features: Quieter operation, longer service life, reduced fuel consumption
• Weight: 39.2 lbs (reman)

Applications:
Is this fan clutch right for your International or KME with Caterpillar ACERT power✔ Yes—built for 2003–2006 International 8600, 9200, and 9400 models, as well as KME vocational trucks using C11 and C13 ACERT engines, this DM Advantage delivers reliable two-speed cooling, fuel efficiency, and long service life with OE fitment.

CROSS-REFERENCE(S):

2590293C91, 3578770C91, 3578772C91, 3912-79A9319, 3912-99A9319, 799319, 79A9319, 79A9319-2, 79A9319RMAN, 79A93192, 98A9319, 98A9319-2, 98A93192, 98A9319-2, 98A9319-2, 98A93192, 98a9319, 989319, 989320, 99319, 993192, 999319, 999320, 99A9319, 99A9319-2, 99A93192, ABP N20 99319, ABP N20 993192, ABPN2099319, ABPN20993192, FLT99319, FLT993192, HOR 79A9319, HOR 99A9319, HOR79A9319, HOR79A93192, HOR79A9319-2, HOR99A9319, HOR99A9319-2, HOR99A93192, HT99A9319, K5 99319, K599319, KM N20 99319, KM N20 993192, KMI99319, KMI993192, KMN2099319, KMN20993192, R799319, RC799319, RF799319X, ZBH79A9319, ZBH99A9319, ZBH79A93192

A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports, pulley diameters, and dimensions match your application before installing.

IMPORTANT INSTALLATION NOTES:

✔ Confirm 8PK belt configuration and groove location (1.38″) before installation.
✔ Verify mounting distance (7″ journal bracket spacing) aligns with OE bracket.
✔ Retrofit applications may require solenoid valve and ECM reprogramming.
✔ Use OE torque specifications for secure installation and long service life.

Drivemaster On/Off Repair Kits:

SOLD AS REMANUFACTURED | CORE RETURN REQUIRED

Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
