Product Description

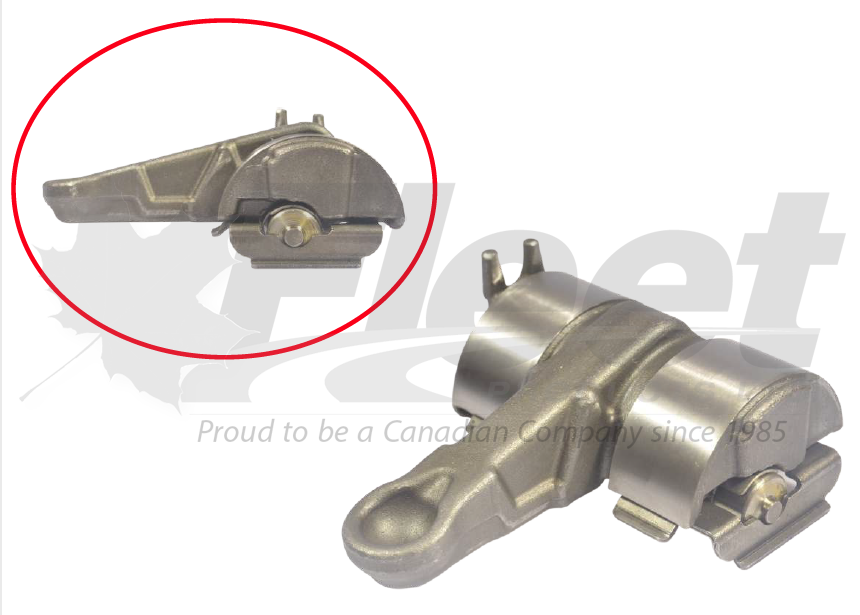

FPK10120 – ADB22 CALIPER LEVER
PART NUMBER(S):
Fleet Products: FPK10120 (New) | OE: BENADB2201, ADB2201
DESCRIPTION:
Model: Bendix ADB22
Vehicles: Designed for heavy-duty trucks, trailers, and buses equipped with Bendix ADB22 air disc calipers
• Component: Service lever for ADB22 caliper actuation
• Function: Transfers force from brake chamber push rod to internal bridge assembly
• Installation: Lever pivots on eccentric bearing, actuates threaded tubes/tappets for pad movement
• System Type: Single-piston floating air disc brake
• Mounting: Internal to ADB22 caliper body, lever cup greased prior to chamber installation
Applications:
The ADB22 lever is used within Bendix ADB22 caliper assemblies for Class 7–8 trucks, buses, and trailers. It is a critical component converting chamber push rod travel into pad clamping force. Replacement recommended during caliper rebuilds or major service intervals.
CROSS-REFERENCE(S):
FPK10120, ADB2201, BENADB2201, ADB22 LEVER, LEVER-ADB22X, Z002881, ADB22X, 13510, KR.60.023.R1, 10-1274, CT5612, B1521, CH1044, 0810 10119, CKSK.18.9, 107101
A cross-reference listing means this part may be a compatible replacement for the part numbers listed. Please confirm all dimensions and caliper type match before installing.
IMPORTANT INSTALLATION NOTES:
✔ Always grease the spherical cup in the lever before reinstallation
✔ Ensure lever moves freely when tested with brake application (wrench should move 5x during chamber cycling)
✔ Do not use an impact wrench to set adjuster or lever components—hand tools only
✔ After installing, confirm automatic adjuster self-tests properly (pads move and return consistently)
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
