Product Description
AIR DISC ROTOR – PAN17 (U-STYLE) WITH ABS RING
PART NUMBER(S):
Fleet Products: FP75180 | OE: M44AD75180, M44D75180, CT826, 75180 | Automann: 153.175180
DESCRIPTION:
Model: WABCO PAN17
Engines: N/A
Vehicles: Trailers equipped with PAN17 calipers using U-style (UL cast) rotors

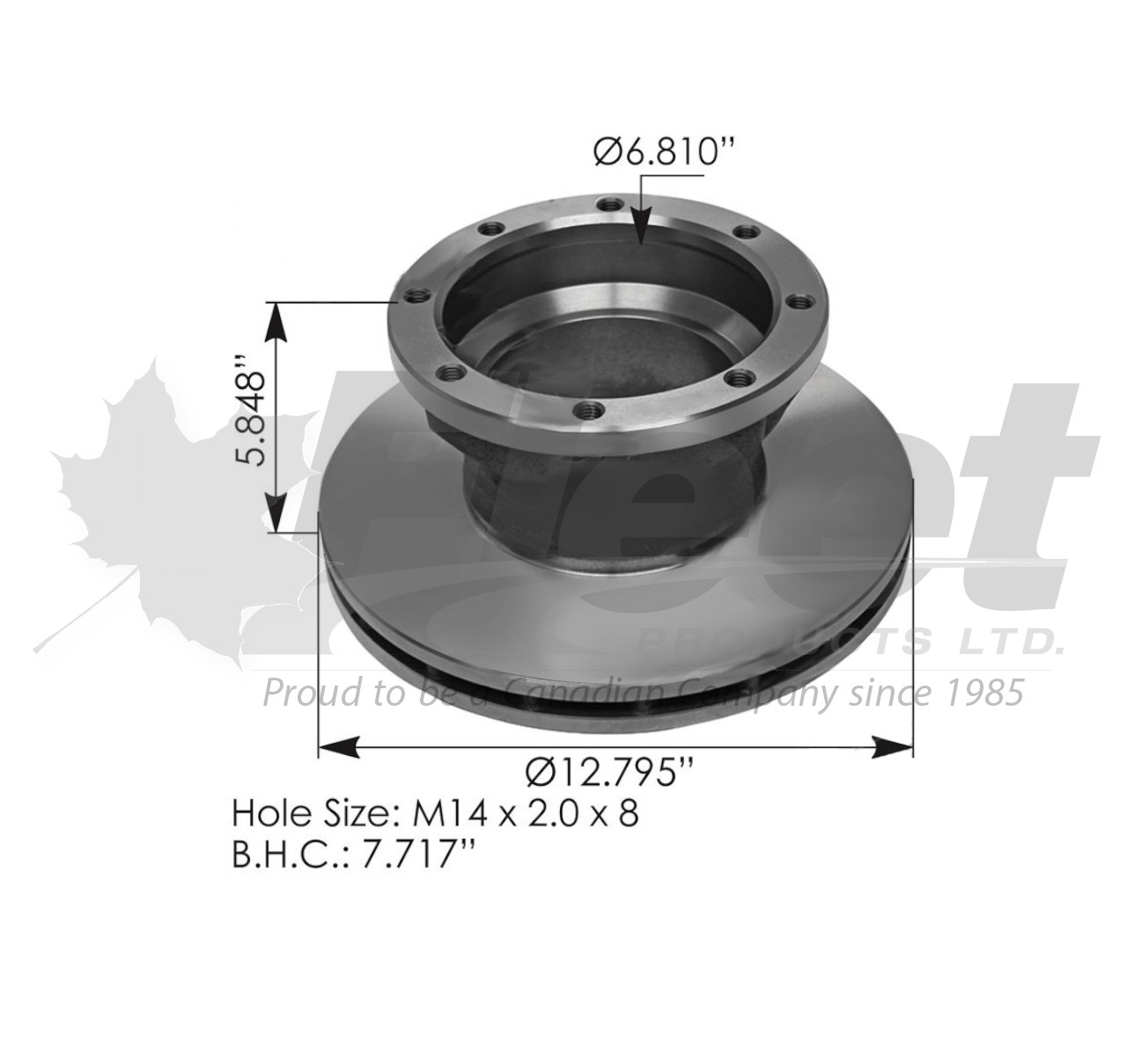

• Outside Diameter: 325 mm (12.795")
• Overall Depth: 148.59 mm (5.848")
• Thickness (New/Min): 34 mm / 28 mm
• Bolt Circle: 196.09 mm (7.720")
• Hole Specs: 8 holes, M14 × 2.0
• Pilot Diameter: 173 mm (6.810")
• ABS Ring: Integrated (cast-in style)
• Weight: 19.05 kg / 42 lbs
• Disc Brake Shape: U (UL-Style)
• Material: Premium cast iron
Mounting Style: Behind-the-hub U-style, 8-bolt configuration
Applications:
Designed exclusively for trailers running WABCO PAN17 air disc brake systems. Compatible with axle assemblies requiring U-style rotors and 8-bolt mounting. Not suitable for PAN19, PAN22, or MAXXUS caliper platforms. Calipers Fitment: FP40175072WC-G, FP40175073WC-G, FP40175072WCX, FP40175073WCX, Pad Part Number: PE1518HK
CROSS-REFERENCE(S):
ATR325148173, CT826, 75180, M44AD75180, M44D75180, 745-75180, 55030F, 55030PK, 55030PK-65, 70005, 153.175180, FP40175072WC-G, FP40175073WC-G, FP40175072WCX, FP40175073WCX
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Confirm rotor fitment with WABCO PAN17 caliper and U-style carrier
✔ Use only with 8-bolt hubs: 196.09 mm bolt circle, 173 mm pilot diameter
✔ ABS tone ring must align with wheel-end sensor properly during install
✔ Torque bolts using star pattern to 180–200 Nm
✔ Rotor runout tolerance: ≤0.05 mm (lateral/axial)
✔ Never machine below discard thickness (28 mm)
✔ Avoid contamination of friction surface with grease/oil
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
