Product Description

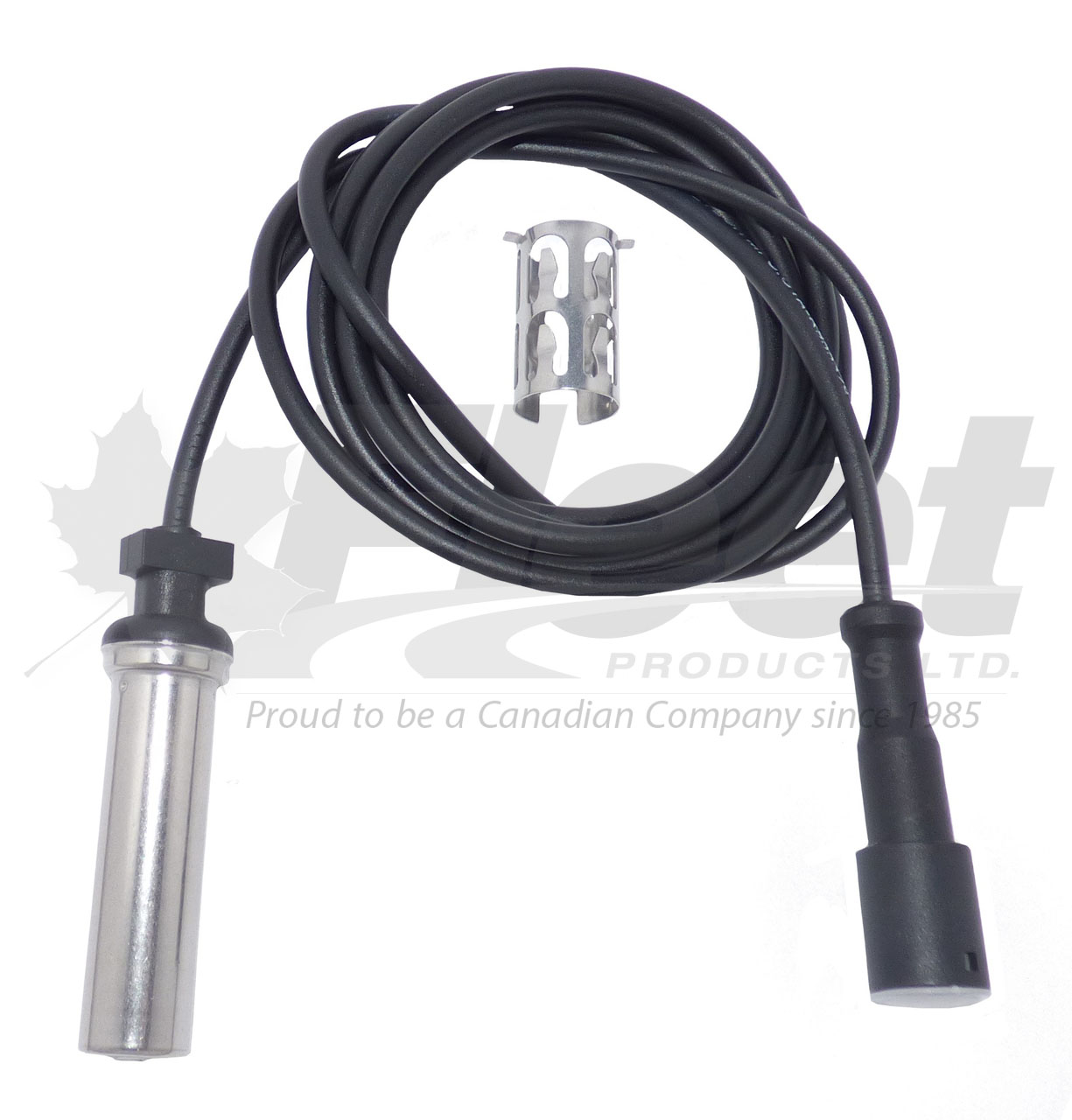

ABS SENSOR – 67" STRAIGHT, 65MM HEAD
PART NUMBER(S):
Fleet Products: 955329 (New) | OE: Meritor R955329, Bendix 801550, WABCO 4410329190, Haldex AL1027196, Automann 577.955329
DESCRIPTION:
Model: 955329 (Straight ABS Wheel Speed Sensor)
Engines: Compatible across diesel and gas platforms using Meritor, Bendix, WABCO, and Haldex ABS/ATC systems
Vehicles: Freightliner Cascadia, GMC/Chevy B-Series (1997–2002), Volvo VNL, International LT, Peterbilt 567/579, Ford LN/FT Series, Navistar platforms, Mack, Kenworth, Western Star
• Sensor Type: Straight wheel speed ABS sensor
• Harness Length: 67" (1700mm)
• Head Length: 65mm
• Cable Diameter: 6.2mm TRD-type
• Connector: DT04-2PT
• Included: Sensor, spring clip, lubricant
Applications:
Designed for use in heavy-duty trucks and trailers with Meritor, Bendix, Haldex, or WABCO ABS/ATC systems. Ideal for 7K–10K trailer and drive axles. Commonly used in Freightliner Cascadia, International/Navistar platforms, Volvo VNL, Peterbilt, Kenworth, Mack, and Western Star. Compatible with both straight and right-angle sensor mounting configurations. OE fit replacement for OEM 955329, 4410329190, AL1027196, 801550.
CROSS-REFERENCE(S):
R955329, R955335, 19121704, TR955329, TDA R955329, 955329, 801550, 4410329190, AL1027196, 577.955329, E-12065, 300-955329, S4410329190, 905-955329, 034018, AB-955329, 400-955329, 4410329190N, VKBA 955329, 17-955329, BEN801550, 577.801550, 577.AL1027196
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Ensure full sensor seating against the tone ring with no air gap.
✔ Lubricate sensor and spring clip during install.
✔ Typical torque spec for sensor mounting bolt: 35–45 in-lbs (confirm per OEM manual).
✔ Adjust by pressing sensor until it contacts tone ring, then retract slightly if required.
✔ Replace worn sensor clips and retainers during service.
✔ Always inspect tone ring for wear or contamination before sensor installation.
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
