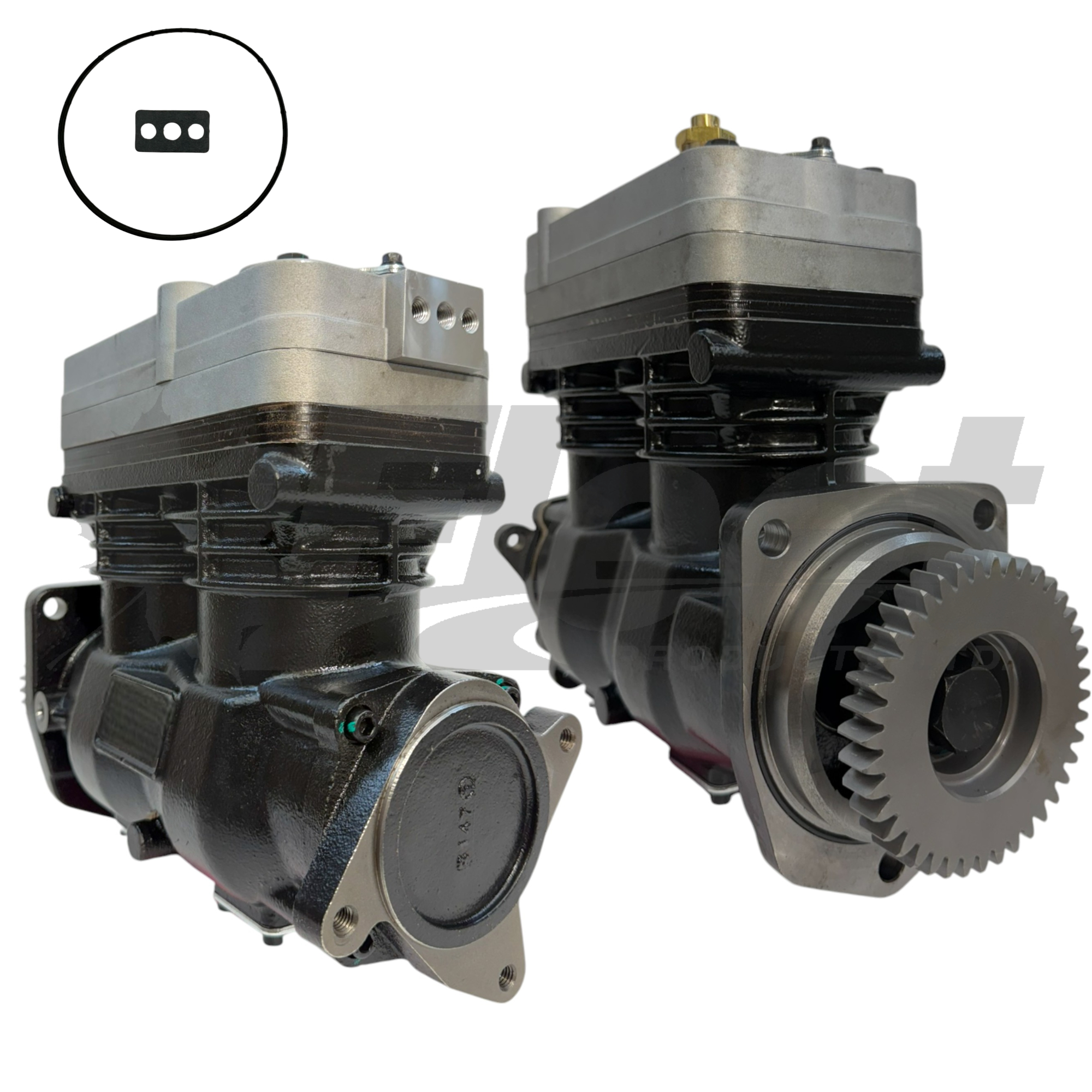

BA-922 CATERPILLAR AIR BRAKE COMPRESSOR – 40 TOOTH | C15 / C18 ACERT
PART NUMBER(S):
Fleet Products: 5013059X (Remanufactured) | OE: 10R6317, 2269580, 3042693, 10R2768
DESCRIPTION:
Model: Bendix BA-922 Twin-Cylinder
Vehicles: Caterpillar C15 / C18 ACERT Diesel Engines
• Bore: 92.1 mm (3.62 in)
• Stroke: 56 mm (2.20 in)
• Swept Volume: 247 cm³
• Air Inlet: Top
• Air Discharge: Top
• Governor Port: 1/8"-27 NPT
• Water Port: 3/8" NPT
• Cooling: Combination Water/Air Cooled
• Drive: Engine Driven, 40-Tooth Gear (4.5" Dia)
• Mounting: Flange
• Max RPM: 3,000
• Crankshaft Thread: M20 x 1.5
• Compressor Type: Twin-Cylinder, Single Stage
Applications:
Built for air brake systems in heavy-duty trucks and semi trucks using Caterpillar C15 and C18 ACERT engines. Engineered for high-output continuous-duty performance under extreme fleet and vocational conditions. Certified remanufactured to OEM standards — every unit is pressure-tested, cleaned, and inspected to ensure performance and longevity in demanding diesel environments.
CROSS-REFERENCE(S):
060-801595, 10R-6317, 10R2768, 10R6317, 226-9580, 2269580, 304-2693, 3042693, 440-1616, 4401616, 5011625, 5013059, 5013059BXR, 5013059X, 5013070, 5013071, 5013071X, 5020482, 705514AT, 745-5013059X, 745-801595, 7455013059X, 801595, 801595BXW, BAN801595, BAR5013059, BEN5013059X, BEN801595, BW 5013059, BW 5013059X, BW 801595, BW R5013059, BW R5013059/CR, BW5013059X, BW801595, BX5013059, BX5013059X, BX801595, EX5013059X, K023906, K023907, K048567, K098559, K098560, P5013059BXR, P:5013059BXR, R9555013058X, R9555013059X, TWDBEN801595, ZAC801595, 10R6317, 10R-6317, 304-2693, 3042693, 440-1616, 4401616, K098559, K098560, K048567, 801595, BX801595, BW 801595, 801595BXW, BW801595, BAN801595, ZAC801595, 5013071, K023907, 5013070, K023906, 5013059X, BW R5013059, BX5013059, 5013059BXR, BW 5013059X, EX5013059X, 745-5013059X, BW R5013059/CR, BX5013059X, BW 5013059, BEN5013059X, BAR5013059, 5011625, 5020482, 2269580, 226-9580, 705514AT
A cross-reference listing means this part may be a suitable replacement for the part numbers listed. Please confirm all dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm 40-tooth drive gear diameter (4.5") matches engine output drive specs
✔ Use OEM-grade gaskets and fittings during installation
✔ Flush air lines before install to avoid contamination
✔ Mount with correct flange torque specs to prevent vibration
✔ Verify governor and water port thread compatibility
✔ Core return required for remanufactured unit credit
