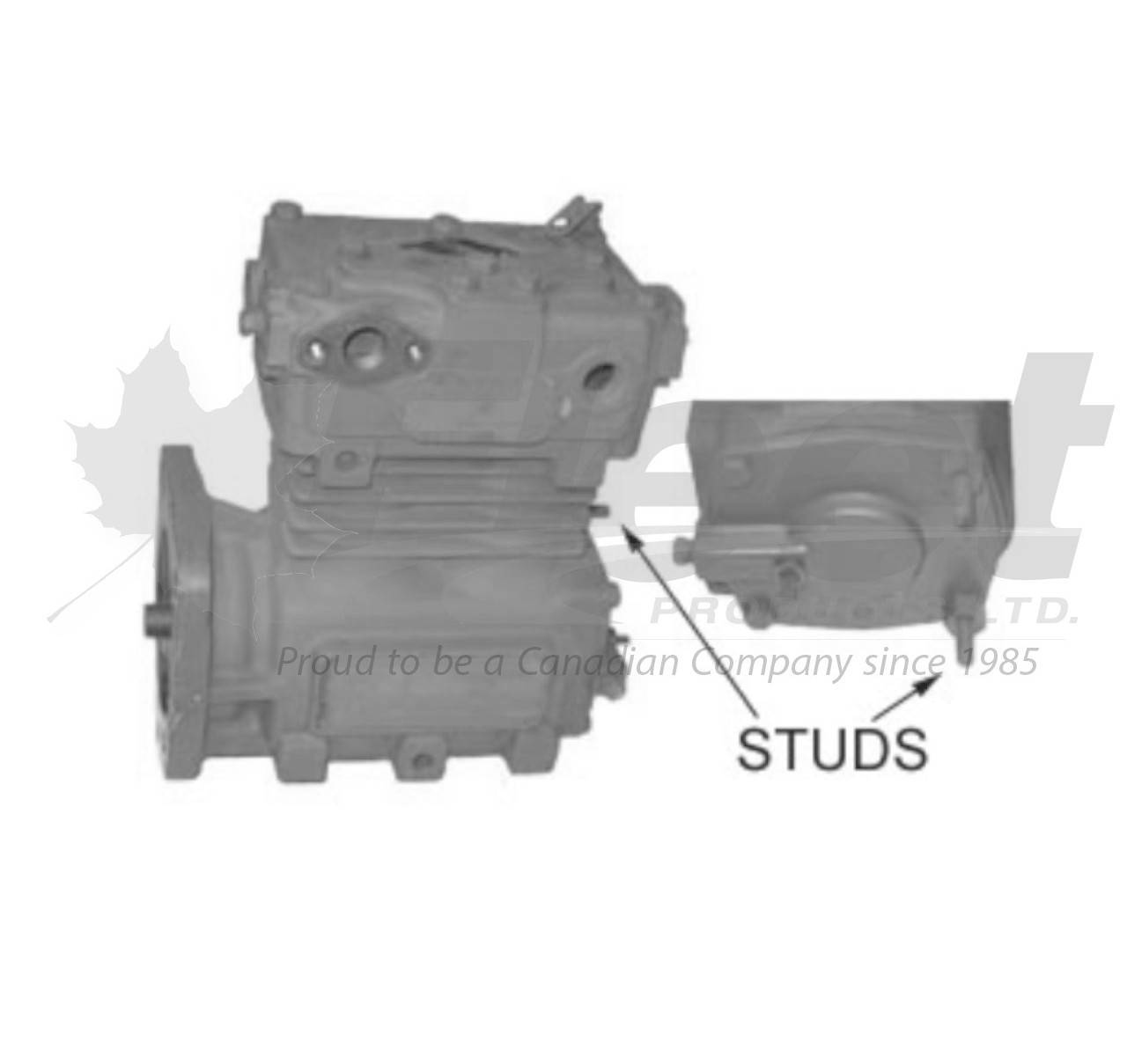

5005790X - TF-550 CAT COMPRESSOR (ROTATE COVER 180°) LONG STUDS – REMAN
PART NUMBER(S):
Fleet Products: 5005790X (Remanufactured) | OE: 5005790, 109863, 5001533
DESCRIPTION:
Model: TF-550 CAT Compressor (Rotate Cover 180’)
Vehicles: Caterpillar engine platforms (3176, C15, C16, C7 Acert, C9 Acert)
• Type: Single stage, reciprocating piston
• Mounting: Flange Mount
• Drive: Engine Driven
• Cooling: Water Cooled
• Air Inlet: Left
• Air Outlet: Top
• Displacement: 13.2 CFM at 1250 RPM
• Weight: Approx. 53 lbs
• Build: Remanufactured to OEM standards — disassembled, inspected, cleaned, tested
• Fitment Type: Compatible with Caterpillar 3176, C15, C16, C7 Acert, C9 Acert engines
• Notes: Crankshaft thread, Mack style; end cover has studs
• Includes: Rear flange cover (Haldex)
• Additional Features: Spline shaft, 22-tooth
Applications:
Direct-fit replacement for Caterpillar engine applications, including 3176, C15, C16, and C7 Acert. Ideal for heavy-duty trucks, vocational equipment, and construction fleets requiring high-performance air brake compressors.
CROSS-REFERENCE(S):
5005790, 109863, 5001533, 5001534, 5002082, 5002713, 5002826, 5002983, 5007471, 5005421, 5005491, 0R8442, 0R5253, 164-7564, 139-9009, 102-9553, 109142, TF-750 CAT, NS750, 5001534, 5002082, 5002713, 5002826, 5002983, 5007471, 5005421, 5005491, 0R8442, 0R5253, 164-7564, 139-9009, 102-9553, 109142, TF-750 CAT, NS750A cross-reference listing means this part should be a suitable replacement for the part numbers listed. Please confirm all dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Rotate cover 180° for correct installation
✔ Ensure proper alignment with flange mounting
✔ Verify air inlet and outlet orientation
✔ Confirm cooling system is properly flushed before installation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
