Product Description

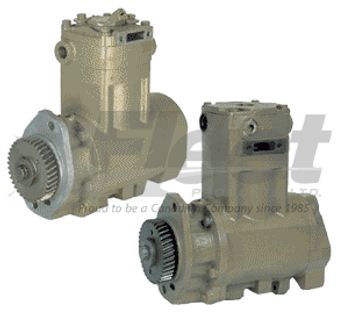

75MM CUMMINS COMPRESSOR (3047440X)
PART NUMBER(S):
Fleet Products: 3047440X (Reman) | OE: 3047440, 3047440RX, 3047440BEP3047440X, 767653293325
DESCRIPTION:
Model: SS296 Super Single Cylinder
Vehicles: Cummins L, K, and N Series Diesel Engines in heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Mounting Type: Flange Mount
• Cooling: Water-cooled
• Crankshaft Thread: M20 x 1.5
• Operating Speed: Up to 3000 RPM
• Cylinder Configuration: Single Cylinder
• Bore Diameter: 75 mm (2.95 in)
• Stroke: 56 mm (2.20 in)
• Swept Volume: 247 cm³
• CFM: 13.2 CFM @ 1250 RPM
• Air Inlet Location: Left
• Air Outlet Location: Rear
• Governor Port Size: 1/8"-27 NPT
• Water Port Size: 3/8" NPT
• Lubrication: Supplied by engine
• Approximate Weight: 36 lbs
Applications: Ideal for air brake systems in Cummins-powered vehicles. Compatible with heavy-duty trucks, semi trucks, and commercial vehicles equipped with Cummins L, K, and N Series Diesel Engines.
CROSS-REFERENCE(S):
3047440X, 3047440, 3047440RX, 3047440BEP3047440X, 767653293325, 1185C, 1187C, 1210C, 1211C, 1215C, 1606311C91, 160C, 1612041C91, 1612283C91, 170.AC3047440, 174C, 217C, 220C, 233C, 266C, 267C, 26C, 3019186, 3019186RX, 3035673, 3035673RX, 3035674, 3035674RX, 310C, 322C, 324C, 328C, 332C, 353C, 354C, 3558000X, 3558001X, 3558002X, 3558003X, 3558004X, 3558005X, 3558006X, 3558011X, 3558013X, 3558015X, 3558020X, 3558021X, 3558029X, 3558042X, 3558043X, 3558044X, 3558045X, 3558049X, 3558050X, 3558051X, 3558052X, 3558053X, 3558055X, 3558095X, 3558097X, 369C, 393C, 407C, 433C, 449C, 450C, 454859C2, 471C, 497C, 529C, 530C, 531C, 614C, 615C, 616C, 625C, 632C, 633C, 642C, 674C, 675C, 676C, 709C, 749C, 767653293325, 796C, 797C, 821C, 832C, 833C, 838C, 840C, 891C, 910C, AR10650, AR13136, AR13139, AR13140, AR13150, AR13160, AR40220, AR45211, AR45603, AR51688, AR7944, AR8053, AR8161, AR8307, AR8312, AR8371
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear
✔ Installation gaskets included
✔ Confirm compatibility with engine model before installation
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, call 1-877-243-0442 or email sales@fleet-products.com
