Product Description

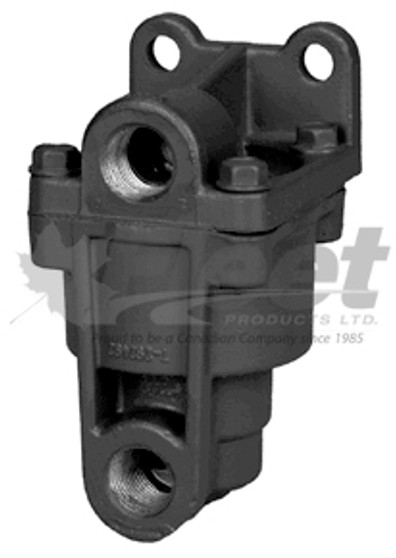

289144-G LIMITING/QUICK RELEASE VALVE (4)
PART NUMBER(S):
Fleet Products: 289144-G | OE: 289144, 00716289144, 286289 | Automann: 170.289144
DESCRIPTION:
Model: LQ-4 Style Limiting/Quick Release Valve
Vehicles: Used on front or steering axles of heavy-duty trucks and trailers with air brake systems
• Supply Port Size: 3/8" NPT
• Delivery Port Size: 3/8" NPT
• Nominal Hold-Off Pressure: 4 PSI
• Nominal Equalizing Pressure: 60 PSI
• Mounting Holes: (2) 19/32" diameter, 1-1/2" on center
• Valve Function: Limiting and quick release
• Compliance: Meets FMVSS-121
• Valve Type: Dual-function—reduces application pressure and provides quick exhaust
• Housing: Cast body, designed for rugged front axle applications
Applications: Used on the front axle air brake circuits of heavy-duty commercial trucks and trailers. Automatically limits the braking pressure to the front brakes until hold-off pressure is achieved. Also acts as a quick release valve to exhaust air rapidly from the steering axle chambers. This LQ-4 style unit is a direct replacement for older LQ-2 units and interchangeable with a broad range of OE and aftermarket valves across multiple brands.
CROSS-REFERENCE(S):
289144, 00716289144, HVG289144N, E-BN289144X, RB-289144, 745X289144, 286289, OR289144, 289144N, 289144R, 289144RX, 289144B1, 289147, 289149, 287279, 358434, 490083, 795363, 801504, 102119, 1092916, 1582223, 2022484, 4204839, 17345006, 40863109, 410002800, 20QE1275R, 20QE2148, 20QE3129R, 289149X, 5007M5, 540171C91, 68569BX, AD80150, AD80152, D7HS2A208BA, D8HZ2A208A, G2022484, K289144, LAV3625, WA289144, S-9625, AV289144, 289144P, GTA-LQ-4 289144, LV1032, LAV-3625, 8100, TV289144
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Mount using (2) 19/32" diameter holes spaced 1-1/2" apart on center
✔ Ensure supply and delivery lines use 3/8" NPT fittings
✔ Designed specifically for front/steering axle circuits
✔ Verify nominal pressures match system requirements (4 PSI hold-off, 60 PSI equalizing)
✔ Replaces earlier LQ-2 valve types with upgraded FMVSS-121 performance
✔ Inspect valve body and ports for damage before installation
✔ Use thread sealant compatible with air brake components
✔ Torque specs not published—follow OE best practices
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
