Product Description

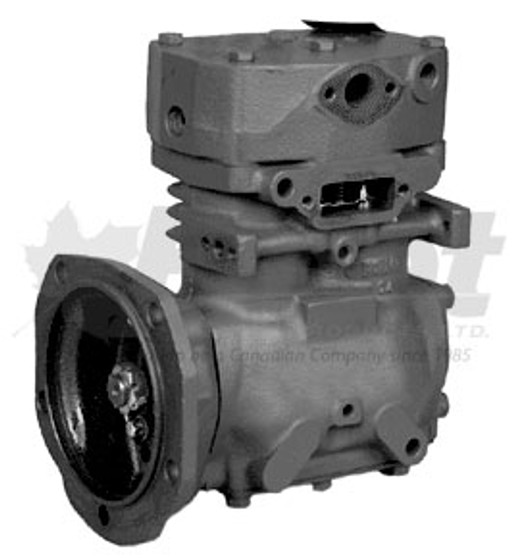

286623X – TF-501 DETROIT COMPRESSOR (DDC 0° TILT ENGINES)
PART NUMBER(S):
Fleet Products: 286623X (Remanufactured) | OE: 286623, 286538, 109866
DESCRIPTION:
Model: TF-501 Detroit Air Brake Compressor
Vehicles: Detroit Diesel Series 60, 0° Tilt Engines
• Mount Type: Flange Mount
• Drive: Gear Drive, Non-Thru
• Cooling: Water/Air cooled
• Air Inlet Location: Left (viewed from rear)
• Air Outlet Location: Left (viewed from rear)
• Discharge Type: Top/Flange
• Head Rotation: Right
• Block Rotation: Left
• Oil Supply: End Cap Oil Feed
• Oil Drain: Internal at Flange
• Turbochargeable: Yes
• Core Group: 501H
• Approximate Weight: 45 lbs
Applications:
What does this fit? The 286623X is engineered for Detroit Diesel Series 60 engines with a 0° tilt configuration. It is commonly used in heavy-duty trucks and highway tractors requiring flange-mounted, gear-driven compressors with left-side orientation and turbo capability.
CROSS-REFERENCE(S):
286538, 286623, 04625286623X, BX286623X, BEN286623X, 109866, 286619
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is based on rear view: left inlet and outlet
✔ Head rotation is right; block rotation is left – confirm engine direction
✔ Includes installation gaskets; do not reuse old sealing surfaces
✔ Turbochargeable – ensure oil feed and drain are properly connected
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
