Product Description

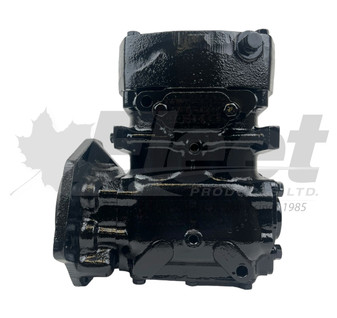

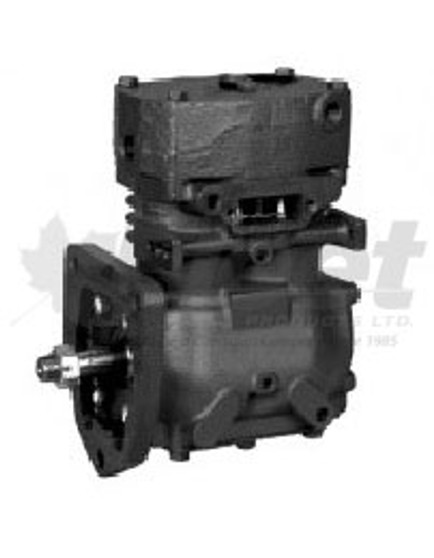

286622X – TF-501 CAT COMPRESSOR (CATERPILLAR ENGINE FITMENT)
PART NUMBER(S):
Fleet Products: 286622X (Remanufactured) | OE: 106967, 286622, 108217
DESCRIPTION:
Model: TF-501 CAT Air Brake Compressor
Vehicles: Caterpillar 3176, 3406 series applications
• Cooling: Water/Air cooled
• Air Inlet Location: Left (viewed from rear)
• Air Outlet Location: Top (viewed from rear)
• Discharge Type: Threaded flange
• Shaft Type: 22-Tooth Spline Shaft
• Rated Displacement: 13.0 CFM @ 1250 RPM
• Bore Diameter: 2.75 in
• Stroke: 1.5 in
• Max Turbo Pressure: 35 PSI
• Approximate Weight: 46 lbs
Applications:
What does this fit? The 286622X is designed for Caterpillar-powered heavy-duty trucks requiring a TF-501 style flange mount air compressor. Frequently used on CAT 3176 and similar engines across dump trucks, vocational chassis, and long-haul applications.
CROSS-REFERENCE(S):
106967, 286622, 106944, 108217
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Shaft is 22-tooth spline style – verify drive compatibility before installation
✔ Port orientation is based on rear view: left inlet, top outlet
✔ Threaded discharge port – confirm gasket mating surface is clean
✔ Include installation gaskets; torque flange nuts to 80–100 ft-lbs
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
