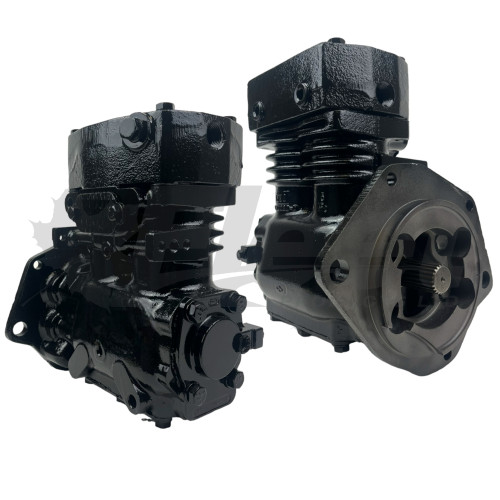

TF-501 CAT AIR BRAKE COMPRESSOR (CERTIFIED REMANUFACTURED)
PART NUMBER(S):
Fleet Products: 286594X (Remanufactured) | OE: 286584, 7E6807, TF-501, 101519, 107533, 108216, 1W7145, 1W7154, 286584, 6N7582, 6N7852, 7E6807, 0R2899
DESCRIPTION:
Model: TF-501
Vehicles: CAT 3306 Engine Platforms (Heavy/Commercial Vehicles)
• Cooling: Water Cooled
• Mounting: Flange Mount
• Drive: Engine-Driven, Gear Drive
• Head Rotation: Right-Hand
• Block Rotation: Right-Hand
• Shaft: Spline Shaft (22 TOOTH)
• Head: Rotatable
• Oil Feed: End Cap Oil Feed
• Oil Drain: Flange Oil Drain
• Discharge Type: Top / Flange Discharge
• Number of Cylinders: 2
• Cubic Capacity: 272 cm³
• Port Orientation: Viewed from Rear
• Turbochargeable: Yes
• With Through Drive: No
Applications:
Ideal replacement for CAT 3306 engines in semi trucks, commercial trucks, and heavy-duty fleet vehicles. Precision remanufactured for reliability, performance, and long service life in high-demand air brake systems. EL13151X Compressors may also be used for this application.
CROSS-REFERENCE(S):
286584X, 286584, 286594, 286599, TF-501, 7E6807, 175286594X, BEN286594X, BW2286594X, EL13151, EL13151X, 101519, 102327, 102328, 102656, 107533, 108216, 286573, 286594B1, 286594BXR, 286594X-BW, 286815, 288071, 289043, 745-286594X, 85102175, BW 286594X, BX286594B1, BX286594X, E-BN286594X, R955286594XA cross-reference listing means this part should be a suitable replacement for the part numbers listed. Please confirm all dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is viewed from the rear during installation
✔ Always flush air lines and replace gaskets before installation
✔ Confirm spline shaft engagement and cooling compatibility
✔ Follow OEM torque specifications for optimal performance
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
