Product Description
286561X – TF-501 PULLEY DRIVE COMPRESSOR (SLANT MOUNT – RIGHT)
PART NUMBER(S):
Fleet Products: 286561X (Remanufactured) | OE: 286561, 286558, 228479
DESCRIPTION:
Model: TF-501 Pulley Drive Slant Mount – Right
Vehicles: Heavy-duty trucks, semi trucks, and commercial vehicles
• Mounting Style: Slant mount (Right) – orientation viewed from rear
• Cooling: Water/Air
• Air Inlet Location: Left
• Air Outlet Location: Top
• Discharge Type: Threaded
• Approximate Weight: 40 lbs
• Notes: Base oil option
• Alternate Units: EL13061, EL13061X
Applications:
What’s this compressor used for? Commonly used in air-brake equipped heavy-duty trucks and trailers requiring a right-slanted pulley drive TF-501 compressor. Designed for configurations requiring top air outlet and left inlet orientation.
CROSS-REFERENCE(S):
286006, 286007, 286561X, 286561, 286558X, 286558, 228479, BW286561X, BX286561X, MID286561X, BEN286561X, EBN286561X, R955286561X, 745-286561X, EL13061, EL13061X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Slant orientation is determined when viewed from the rear – verify mount direction
✔ Confirm threaded discharge aligns with existing line configuration
✔ Base oil option must match original unit’s lubrication path
✔ EL13061 and EL13061X compressors may be suitable replacements
✔ Ensure mounting base and port layout match TF-501 right slant pattern

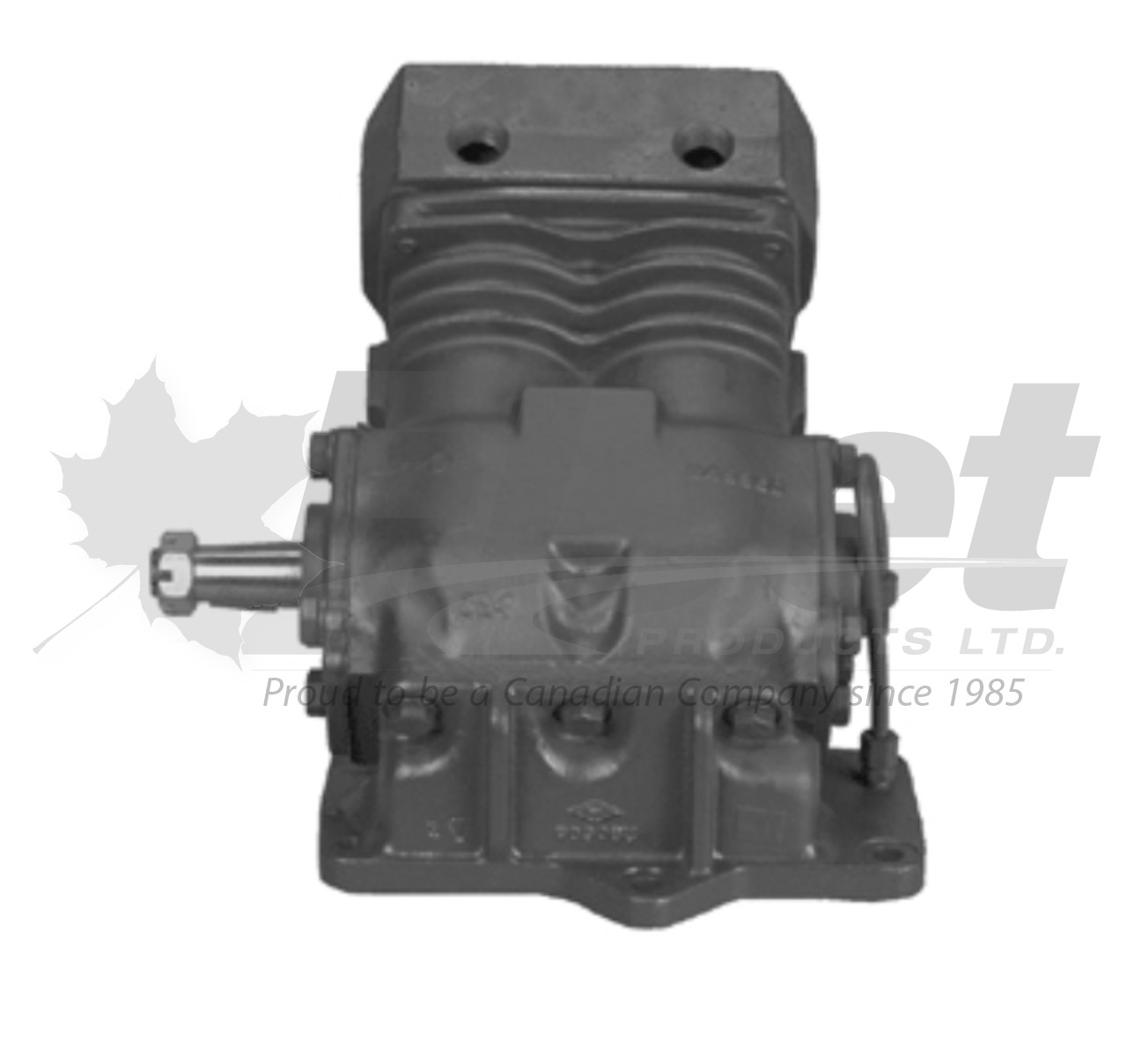

PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
