Product Description

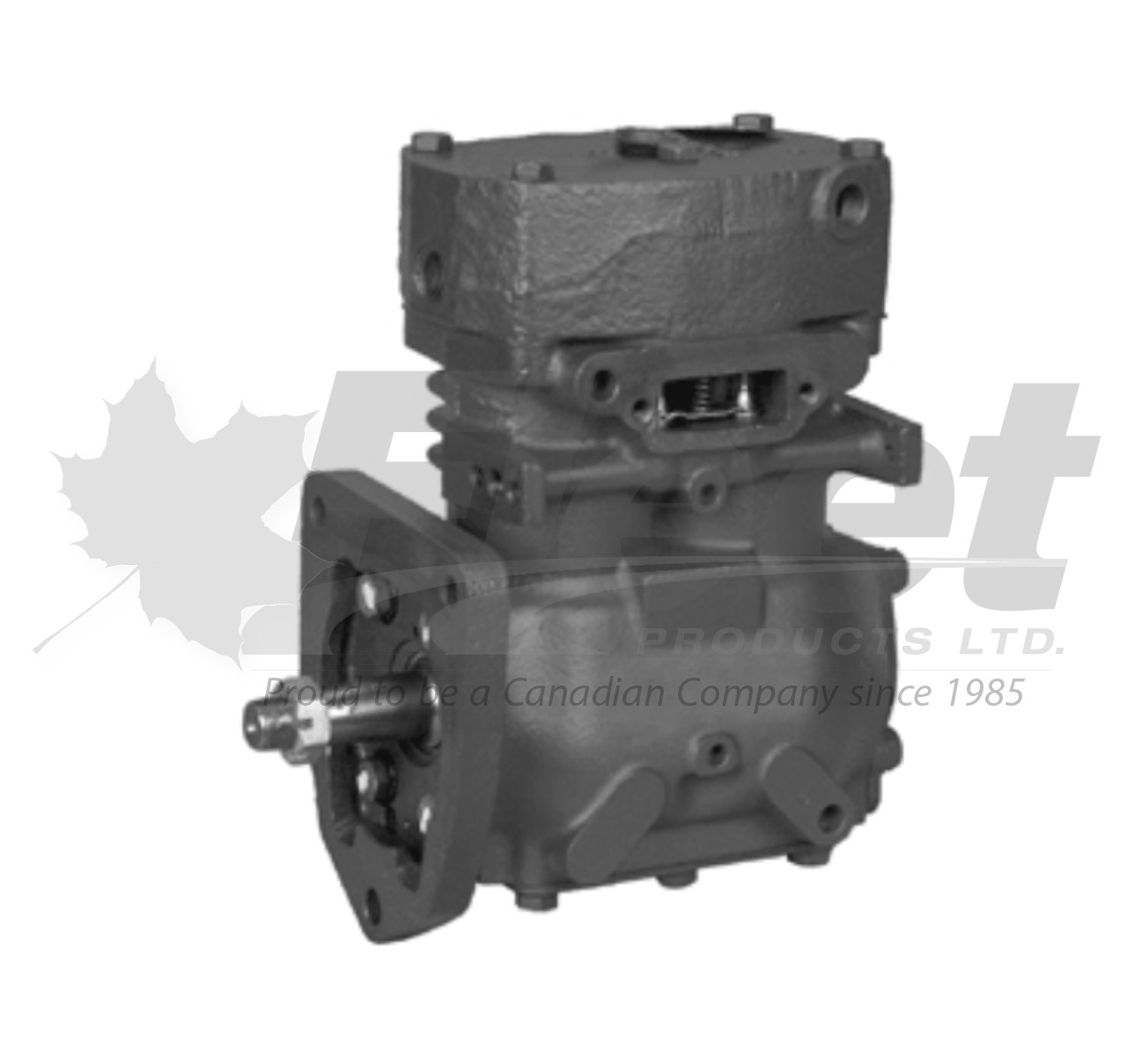

286550X - TF-501 CAT COMPRESSOR (FLANGE MOUNT, TAPERED SHAFT, LEFT PORTS)
PART NUMBER(S):
Fleet Products: 286550X (Remanufactured) | OE: 286550, 106770, 106770X, NT7017, CAT (1N2983)
DESCRIPTION:
Model: TF-501 CAT Flange Mount Air Brake Compressor
Vehicles: Caterpillar diesel trucks, trailers, 18 wheelers
• Mounting Style: Flange mount
• Drive Type: Engine driven, tapered shaft
• Cooling: Water / Air cooled
• Air Inlet Port: Left (viewed from rear)
• Air Outlet Port: Left (viewed from rear)
• Discharge Type: Threaded flange
• Bore: Approx. 2.75 in (70 mm)
• Stroke: Approx. 1.5 in (38 mm)
• CFM Rating: Approx. 12 CFM @ 1250 RPM
• Weight: Approx. 40 lbs
Applications:
Where is it used? Common on Caterpillar-powered heavy-duty vehicles needing TF-501 flange-mount compressors.
What does it do? Provides consistent compressed air for braking and accessory systems using CAT engine integration with tapered shaft drive.
CROSS-REFERENCE(S):
286550, TF501, 106770, 106770X, 286550, 106770, 106770X, NT7017, CAT (1N2983)
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is viewed from rear – left inlet, left outlet
✔ Tapered shaft must align with CAT engine hub specs
✔ Use proper OEM gasket set during flange installation
✔ Torque flange bolts to 80–100 ft-lbs per OEM standard
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
