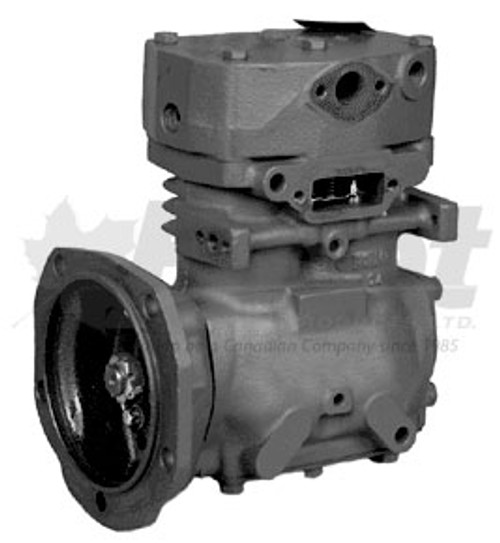

286541X - TF-501 DETROIT COMPRESSOR (FLANGE MOUNT, RIGHT INLET, TOP OUTLET)
PART NUMBER(S):
Fleet Products: 286541X (Remanufactured) | OE: 286541, 106290, 286538
DESCRIPTION:
Model: TF-501 Detroit Flange Mount Air Brake Compressor
Vehicles: Detroit Diesel powered trucks and commercial vehicles
• Mounting Style: Flange Mount, 0° Tilt
• Drive Type: Engine gear driven
• Cooling: Water and Air cooled
• Air Inlet Port: Right side (viewed from rear)
• Air Outlet Port: Top threaded discharge
• Discharge Type: Flange
• Spline Flange: Yes
• Bore: Approx. 2.75" (70 mm)
• Stroke: Approx. 1.5" (38 mm)
• Rated Displacement: ~12 CFM @ 1250 RPM
• Weight: Approx. 40 lbs
Applications:
What trucks is this for✔ Detroit Diesel-powered trucks and commercial vehicles using TF-501 compressors.
What does it do✔ Supplies pressurized air to support air brake and pneumatic systems using engine-driven, flange-mounted configurations.
CROSS-REFERENCE(S):
286541X, 286541, 106290, 106290X, 286538, 286623, 04625286623X, BX286623X, BEN286623X, 109866, 286619A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm right inlet and top outlet port configuration before installation
✔ Flange nut torque specification: 80–100 ft-lbs
✔ Follow OEM orientation and spline shaft engagement instructions
✔ Replace gaskets during installation and verify cooling connections
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
