Description

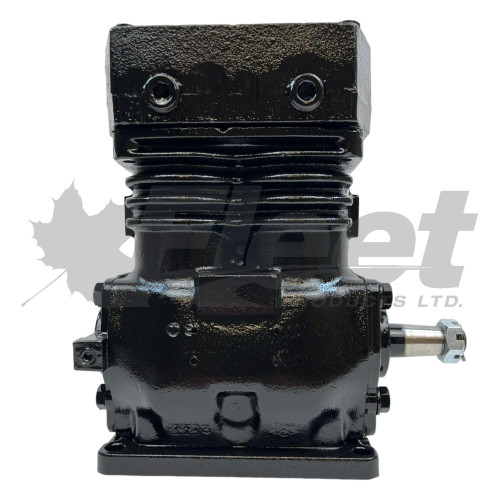

286528X – TF-501 PULLEY DRIVE "CERTIFIED REMANUFACTURED" AIR BRAKE COMPRESSOR
PART NUMBER(S):
Fleet Products: 286528X (Remanufactured) | OE: 286528, EL13060, 104962, 286582 (MUST REUSE OLD END COVER STUDS), 286617, 286625
DESCRIPTION:
Model: Tu-Flo 501 (Pulley Drive)
Vehicles: Heavy-duty trucks and vocational vehicles
• Mounting: Base Mount (Style A)
• Cooling: Dual-cooled – Water-cooled head / Air-cooled crankcase
• Air Inlet: Left side (viewed from rear)
• Air Outlet: Top discharge – threaded port
• Displacement: ~13.2 CFM @ 1250 RPM
• Weight: ~40–40.5 lbs (18.1–18.4 kg)
• Cylinder Configuration: Two-cylinder, single-stage
• Drive Type: Mechanical (belt/pulley driven)
• Operation: Pulley-driven
• Includes: Installation gaskets
• Supplied As: Certified Remanufactured
Applications:
Engineered for heavy-duty air brake systems in commercial trucks and vocational vehicles where base-mount, pulley-driven configuration is required. Reliable solution for fleets using Bendix TF-501 compressors. EL13060X Compressor may also be used for this application.
CROSS-REFERENCE(S):
10130543, 102989, 104962, 104982, 106157, 109263, 27028793, 270287C93, 285861, 286514, 286528, 286528N, 286528RX, 286528RX-MD, 286582, 286585, 286617, 287629, 288658, 303GB3139R, 473299, 525E897, 5396-286528RX, 5396-286528X, 570287C91, 570287C92, 570287C93, 570287C94, 686556C91, 686556X91, 767653024288, 840570, 87HU2875BA, BEP286528X, BEP286582X, BEP286617X, BX104962, BX104982, BX106157, BX109263, BX285861, BX286514, BX286528, BX286617, BX287629, BX288658, EBN286528X, EBN286528XR, H286528X, HDX286528X, MBI286528X, MERR955286528X, MID286528RX, MID286528X, R955286528X, R955286528XR, R955EL13020X, S286528, S286528R, S286528RX, S286528X, S286528XH, S286528XHD, S286528XHDS, S286528XHDX, S286528XHDXS, S286528XHDXSP, TWDH286528X, V1092923, ZZ286528RX, ZZ286528XA cross-reference listing means this part is a suitable replacement for the part numbers listed. Confirm all specs before ordering.
IMPORTANT INSTALLATION NOTES:
✔ Ensure correct pulley and belt alignment during installation
✔ Mount securely using proper base frame or bracket (Style A)
✔ Use all supplied installation gaskets to prevent leaks
✔ Top discharge may require adapter based on plumbing setup
✔ Verify left-side inlet orientation from rear before mounting
✔ Compatible with EL13060 and EL13060X specifications
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
