Product Description

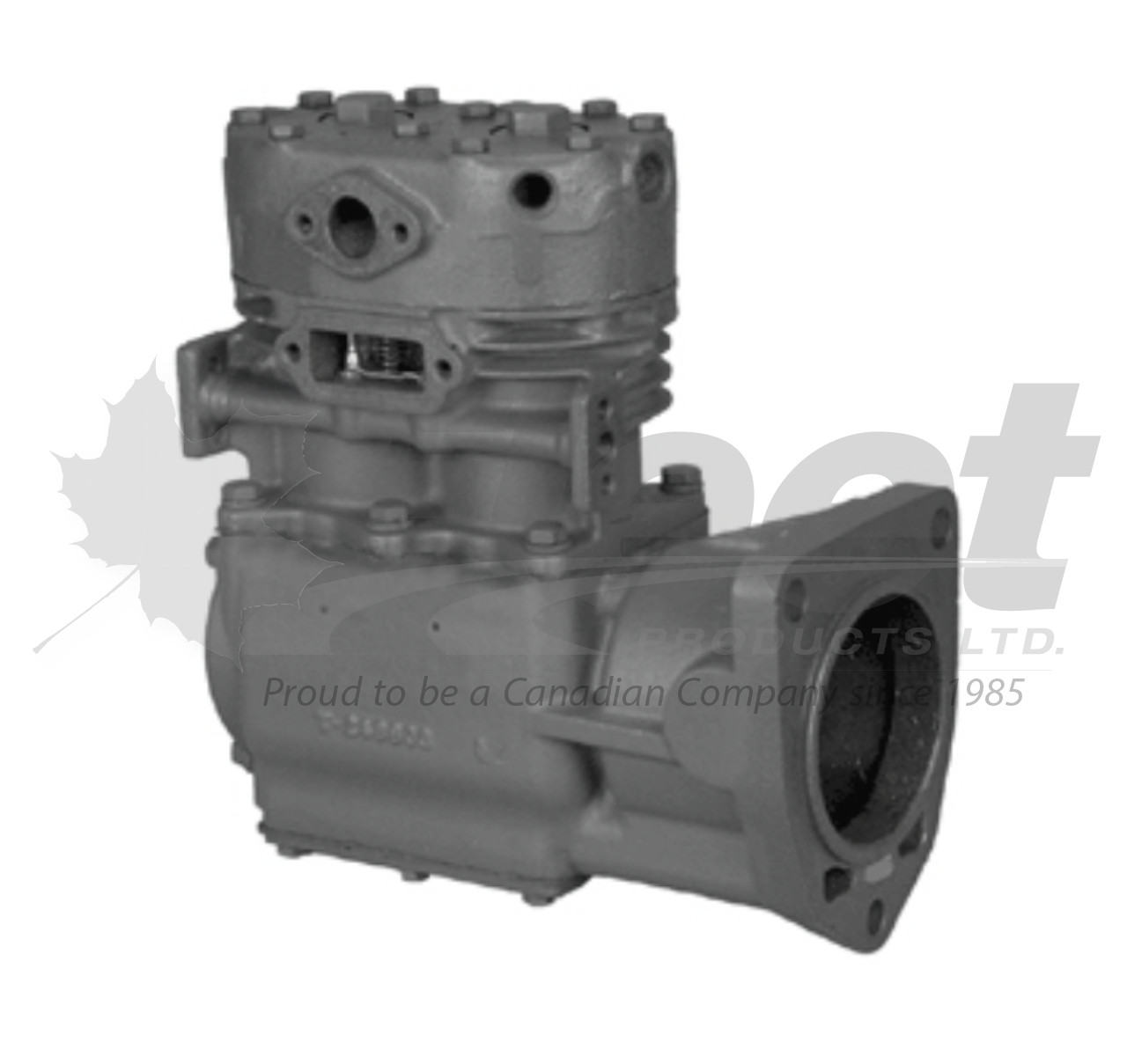

TF-500 MACK COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 284662X (Reman) | OE: 284662, TF500
DESCRIPTION:
Model: TF-500 Mack (Extended Flange)
Vehicles: Mack Trucks, Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water
• Air Inlet: Right
• Air Outlet: Right
• Mounting: Flange Mount, Extended Flange, Engine Drive, Power Steering
• Discharge Type: Flange
• Weight: Approx. 46 lbs
• Port Orientation: Viewed from Rear
• Core Group: 500A
• Overall Height: 11.42 in
• Overall Width: 4.79 in
• Overall Length: 8.93 in
• External Shaft Length: 2.14 in
• Bore Diameter: 2.75 in
Applications:
The TF-500 Mack Compressor (284662X) is designed for use in Mack trucks with extended flange, providing air pressure for air brake systems in heavy-duty trucks, semi-trucks, 18-wheelers, and commercial vehicles. This compressor features water cooling, flange mounting, and is designed to meet OEM standards for reliability and durability in demanding fleet applications. EL13111 Compressor may also be used for this application.
CROSS-REFERENCE(S):
284662X, 284662, TF500
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from rear.
✔ Includes installation gaskets as per manufacturer specifications.
✔ Core return required for remanufactured units.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
